Specifications
1.Operating voltage: DC12V2.Operating Current: 10mA
3.Modulation mode: KGS-B10

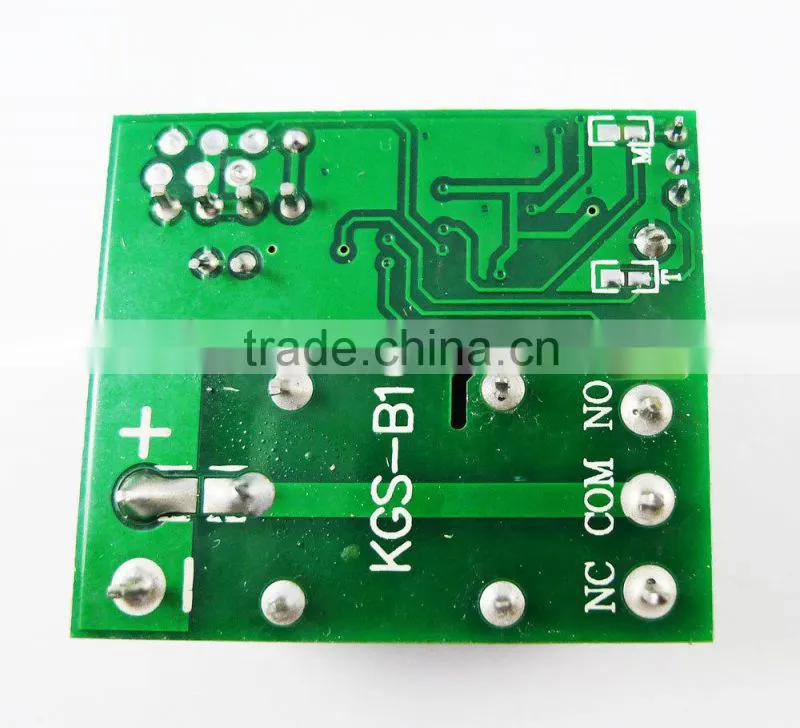

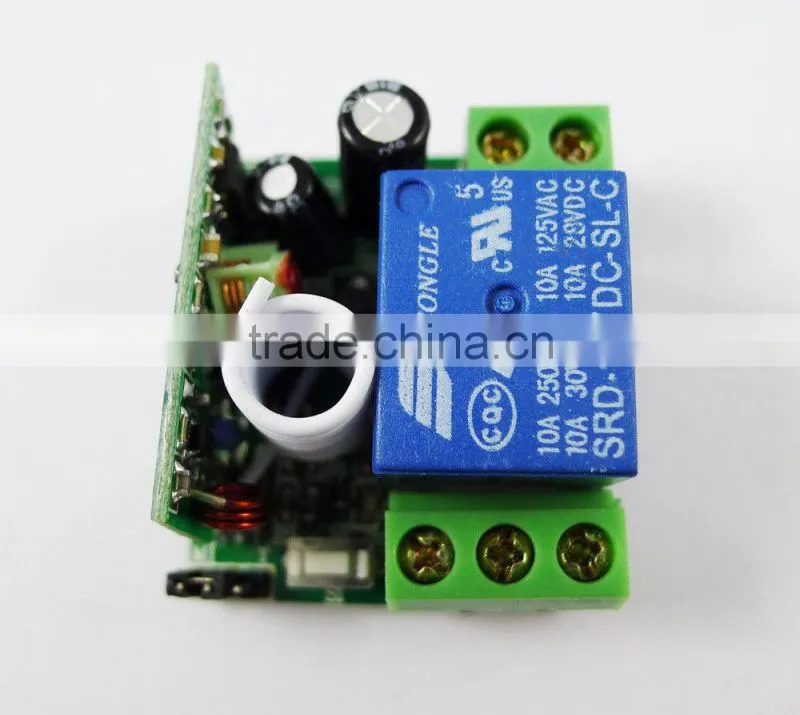

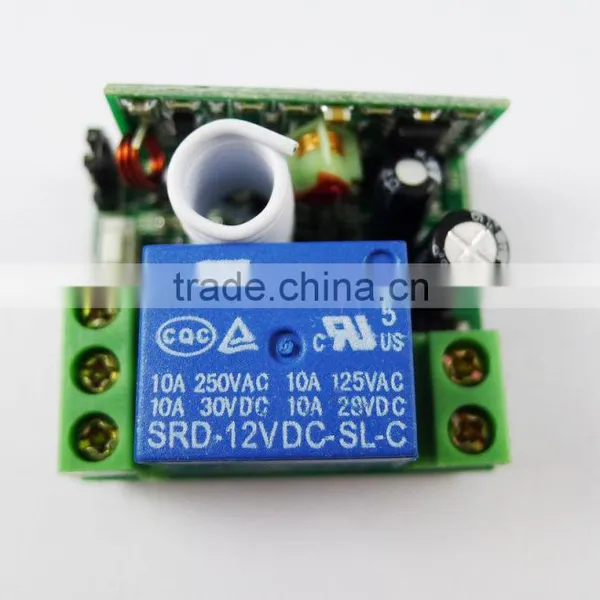

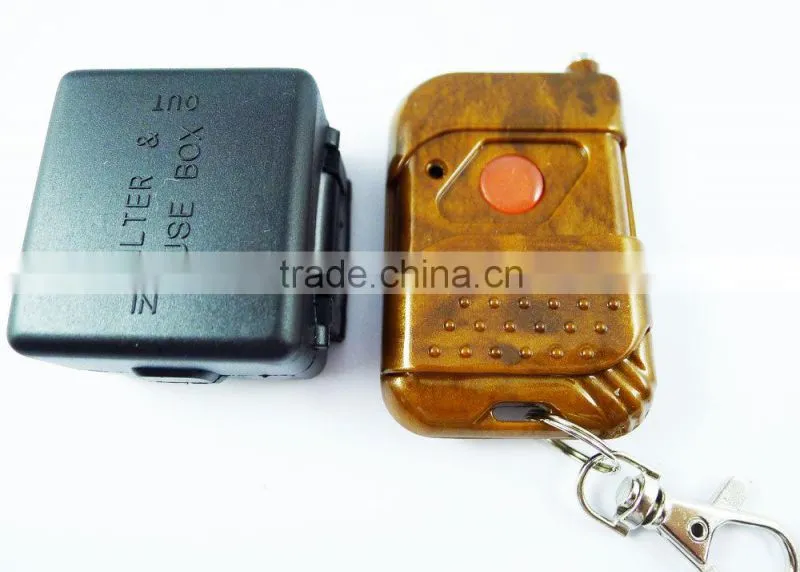

12V 1 Channel Wireless Remote Control 1 Relay Module 315MHZ for Arduino
Feature:
1. Receiver can match multiple keys remote control.
2. Size:35*32*19mm
3. User can modify work mode:self-locking, interlock, inching
Basic parameters:
Model : KGS-B10
Working voltage : DC12V
Operating Frequency : 315MHZ
Contact capacity : 10A/250VAC; 10A/30VDC
Receiver sensitivity :>-105dB
Remote distance :200 meters (open area without interference) This distance is open area and non-interference in the theoretical distance.The actual distance is only 10% to 50% by environmental disturbance
Work mode:
self-locking/interlocking/inching. users freedom of choice. (Welding T is self-locking.Welding M is inching type. M and T are not welded into interlocking type)
package:
1X wireless module
