4 Bits Digital Tube LED Display TM1637 Module With Clock Display

4 Bits Digital Tube LED Display TM1637 Module With Clock Display thumbnail-1
4 Bits Digital Tube LED Display TM1637 Module With Clock Display photo-1
US$ 2.2 - 2.5 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
F087M
Type:
Other, module
Brand Name:
Geree
Contact Supplier Request Quote Chat Now
Shenzhen Geree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number F087M
Type Other, module
Brand Name Geree
Place of Origin Guangdong, China

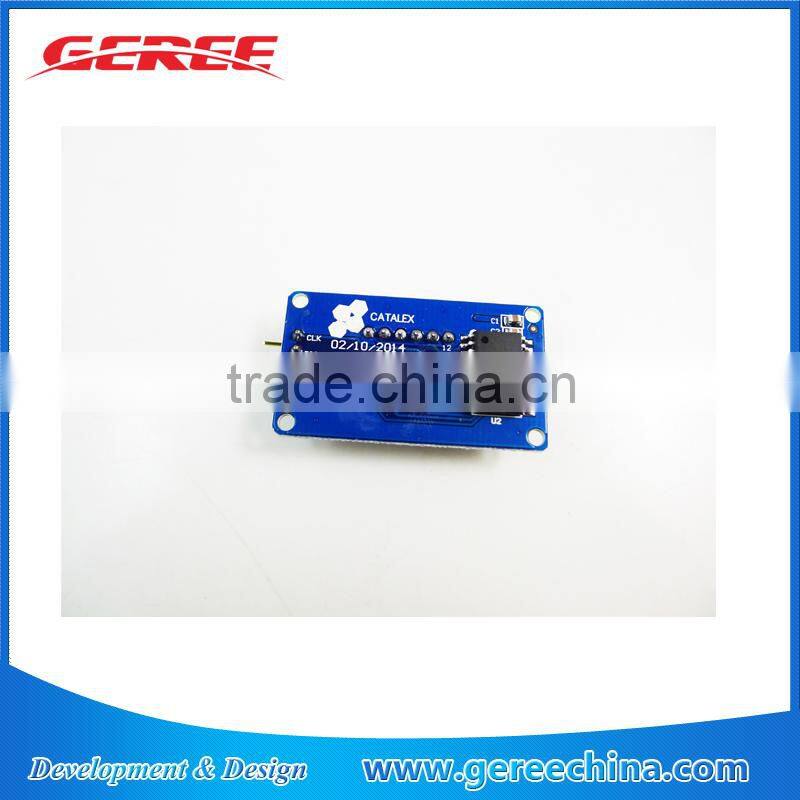

4 Bits Digital Tube LED Display TM1637 Module With Clock Display



4 Bits Digital Tube LED Display TM1637 Module With Clock Display

Description


The module is a 12 foot with a clock point four common anode tube (0.36 in.) display module for driver IC TM1637, only two signal lines can make the MCU control 4 8 digital tube.

Module Features:
Display common anode for the four red LED
Digital tube 8 gray adjustable
Level control interface for 5V or 3.3V
4 M2 screws positioning holes for easy installation
Size:42X24X12mm

Interface 4 digital display module: (the last picture show)
Control Interface : A total of four pins (GND, VCC, DIO, CLK), GND to ground , VCC is the power supply , DIO of data input and output pin , CLK is the clock signal pin ;
Digital tube: 4 common anode score points with 0.36 inches LED, red highlights ;
Positioning holes : 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install , to achieve inter- module combination

Package:
1X 4BITS LED module
