Home > Instruments & Meters > Meter for Electricity > Voltage Meter > Volt Amp Voltmeter Ammeter Digital Voltage Current Meter DC 0-100V 5A 24V 36V

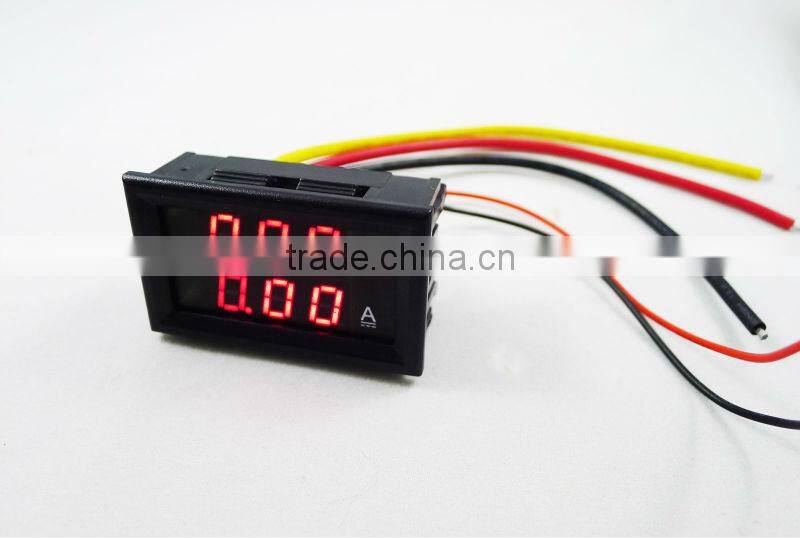

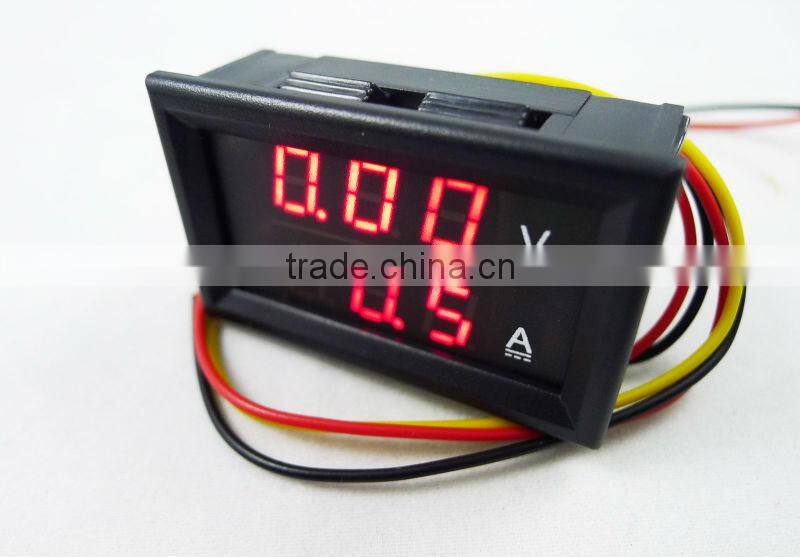

Volt Amp Voltmeter Ammeter Digital Voltage Current Meter DC 0-100V 5A 24V 36V
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Geree
Model Number:
VI009
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC 0-100V 10A 24V 36V Digital Ammeter and Voltmeter Voltage Current MeterUS$ 1 - 4MOQ: 10 Pieces -
DC 0-100V 0-10A Red + Blue Volt Amp Voltmeter Ammeter Voltage Current Meter 36VNegotiableMOQ: 10 Pieces
-
RED LED Display DC0-100V 0-100A dc Voltmeter and AmmeterNegotiableMOQ: 10 Pieces
-
Digital Ammeter and Voltmeter DC0-100V 0-100ANegotiableMOQ: 10 Pieces
-
DC 4.5-30V 5A Blue Red Digital dc Voltmeter and AmmeterNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Geree
Model Number
VI009
Display Type
Digital Only
Measuring Range
DC0-100V
Accuracy Class
1%(+-1)
Operating Temperature
-10 to +65
Specifications
1)Volt Amp Voltmeter Ammeter LED Digital Voltage Current Measurement Meter2)DC 0-100V/5A red color
Volt Amp Voltmeter Ammeter LED Digital Voltage Current Measurement Meter
DC 0-100V/5A red color
Features:
work Current:<60mA
display:0.28"LED,red + red
size:48×29×21 mm
Refresh rate:≥500mS/times
Permissible Error:1%(±1)
power supply : 4.5V - 30V
Measure range: DC0-100V
Operating temperature:-10~+65
operating humidity:10~80%
working air pressure:80~106kPa
Testing current: 0-5A

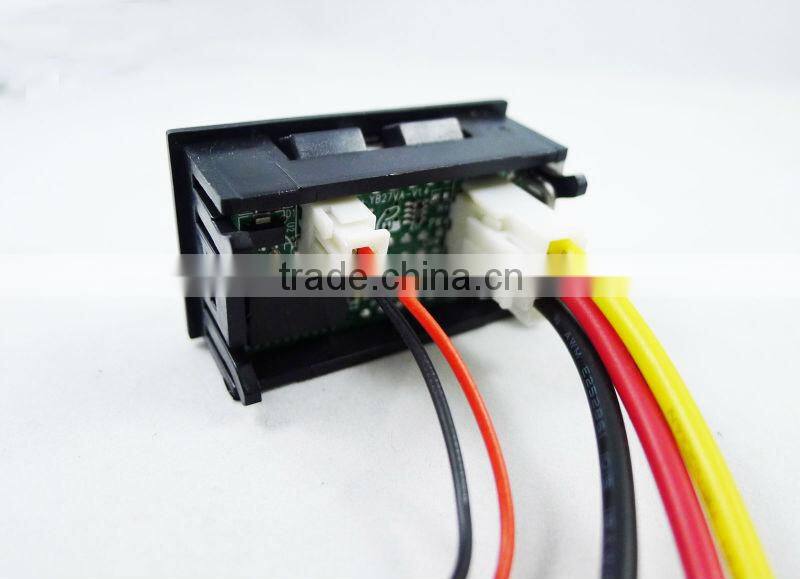

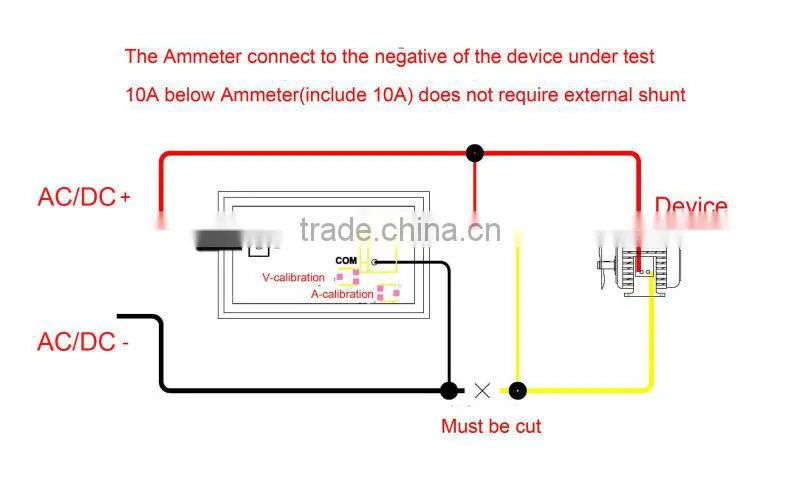

Wiring:
thick cable
Black line : COM, common measuring
Red line : power supply+
Yellow line : IN+, current input+
thin cable (4.5V - 30V)
Black line : DC Input -
Red line : DC input +
