W1209 DC 12V -50 to +110 Temperature Control Switch Thermostat Thermometer
- 10000 Piece / Pieces per Month
- shenzhen/HK
- T/T Credit Card PayPal
Product Details
D/C: | 1 | Package: | NOMAL | Model Number: | R068M |
Brand Name: | Geree | Place of Origin: | Guangdong, China |
Product Description

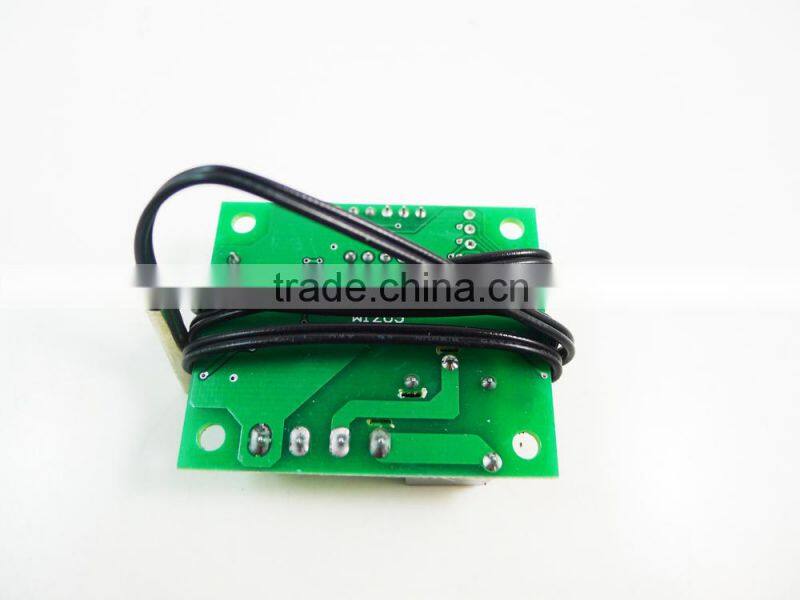

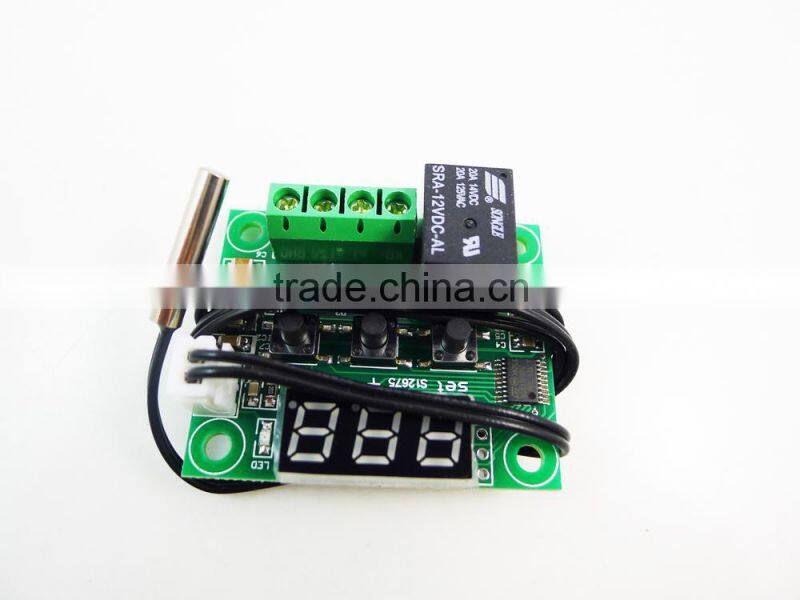

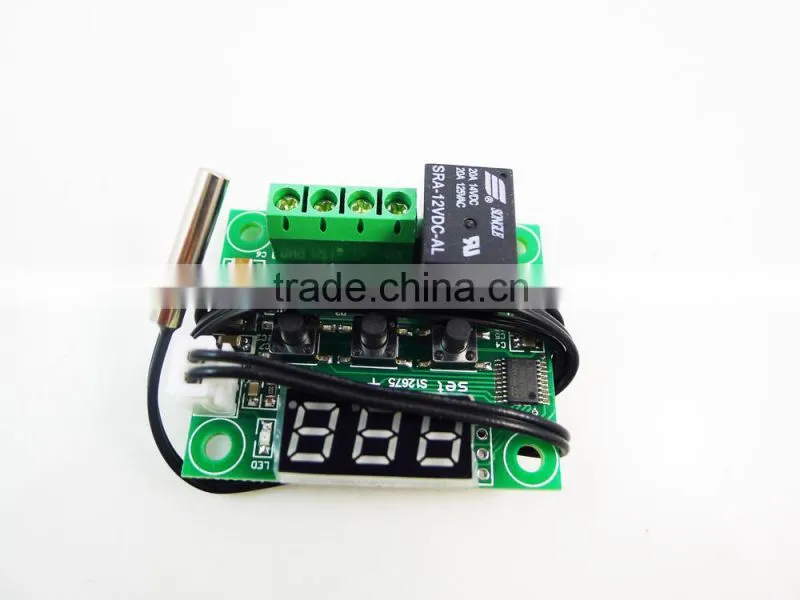

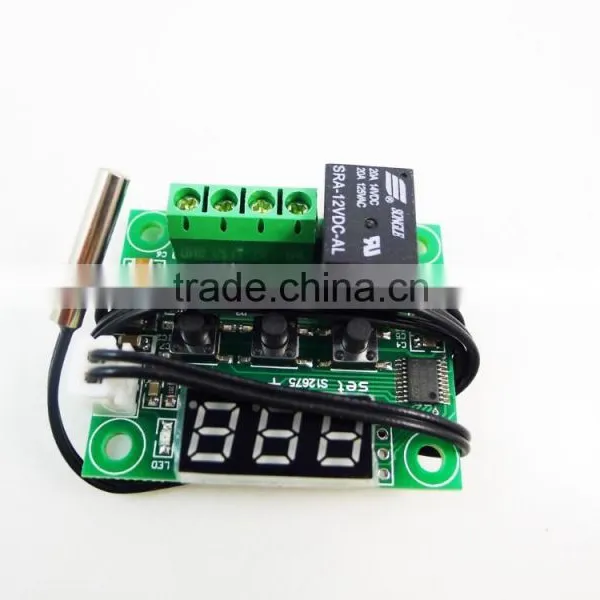

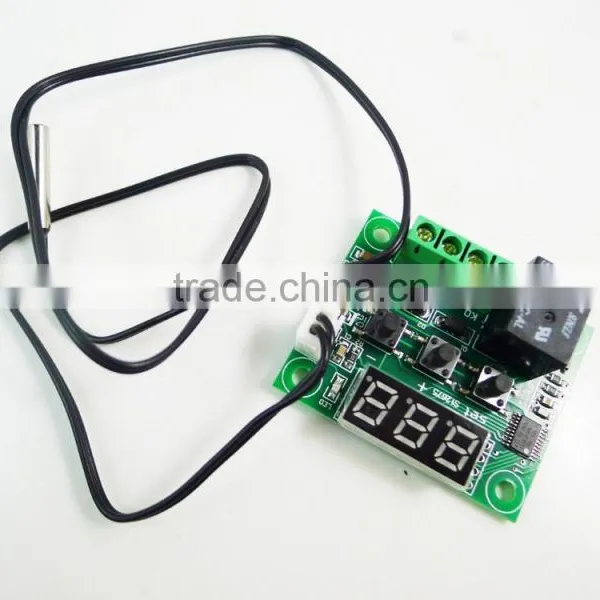

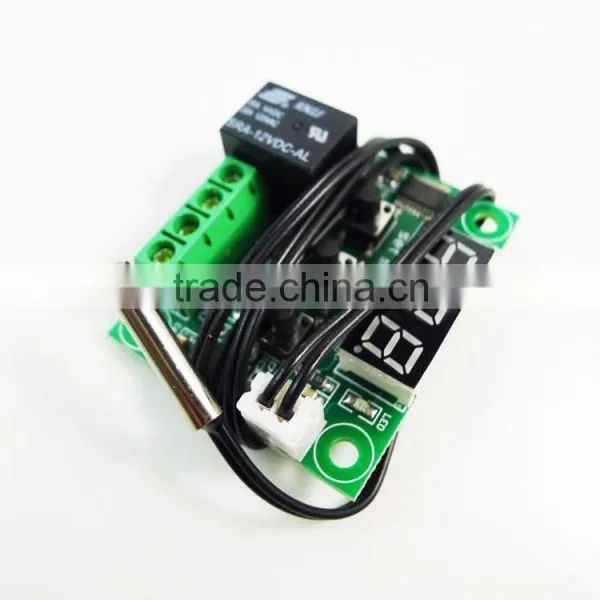

W1209 DC 12V -50 to +110 Temperature Control Switch Thermostat Thermometer
Specifications:
Temperature range :-50-110 ℃
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution:When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection: 0-110℃
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay?
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 ℃ ,Humidity 20% -85%
?
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
?
?
Package included:
?
?1 x W1209 Digital thermostat Temperature Control Switch 12V with sensor
