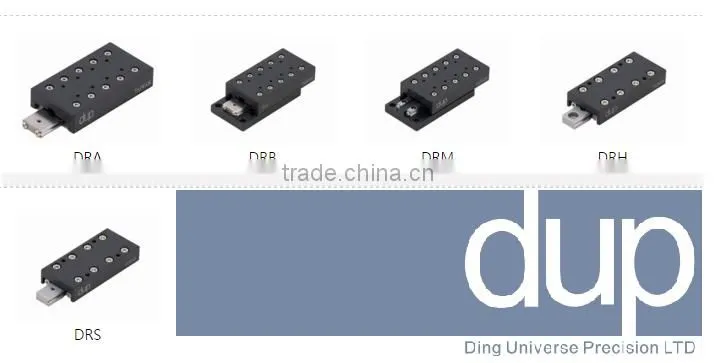

* new dup DRS/DRS-B Linear motion table sliding table *
* Crossed Slide Table
Table is composed of dup crossed roller slide rail set V-grooves. Formed and
cross-rollers matched with assembly plane in high accuracy processing,and base;
installed with limit mechanism between two ends of table, is small type of limit stroke
linear motion product in high rigidity. Performance as high accuracy and low friction,
apply to electric parts used in automatic installation equipment and optical gauge.
* Slide Table Property
1. High accuracy-
In order to perform function of dup Slide Table entirely, all assembly planes of
table and base are processed in precise grinding to get linear motion in high
accuracy.
2. Low friction-
Low friction because of non-circulation. Stable performance whether in low speed
or high speed.
3. High rigidity and space saving-
Besides high load capacity and high rigidity of roller guide in dup linear motion table,
space saving design is also considered at same time.
4. No demand of adjustment-
Accuracy and preload would be matched perfectly to use directly without
heavy adjustment.

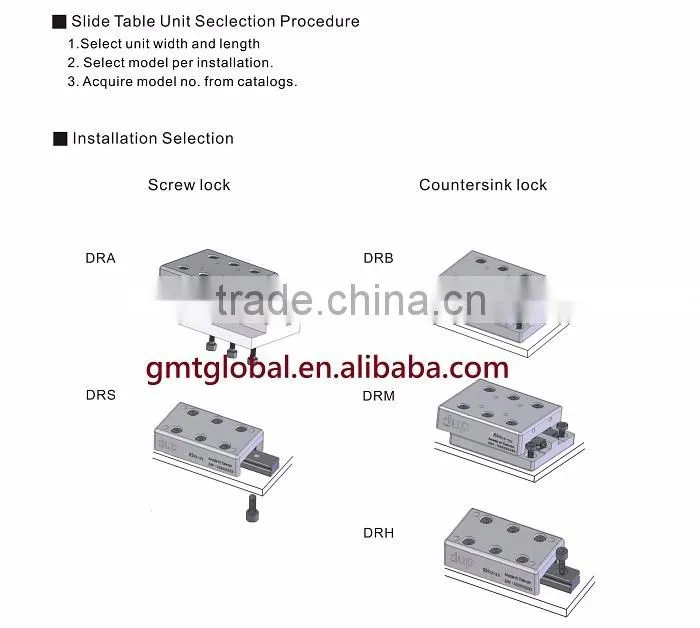

5. Easy installation
Standardized assembly holes of unit and base are easy to lock and secure with
screw only to have linear motion in high accuracy.

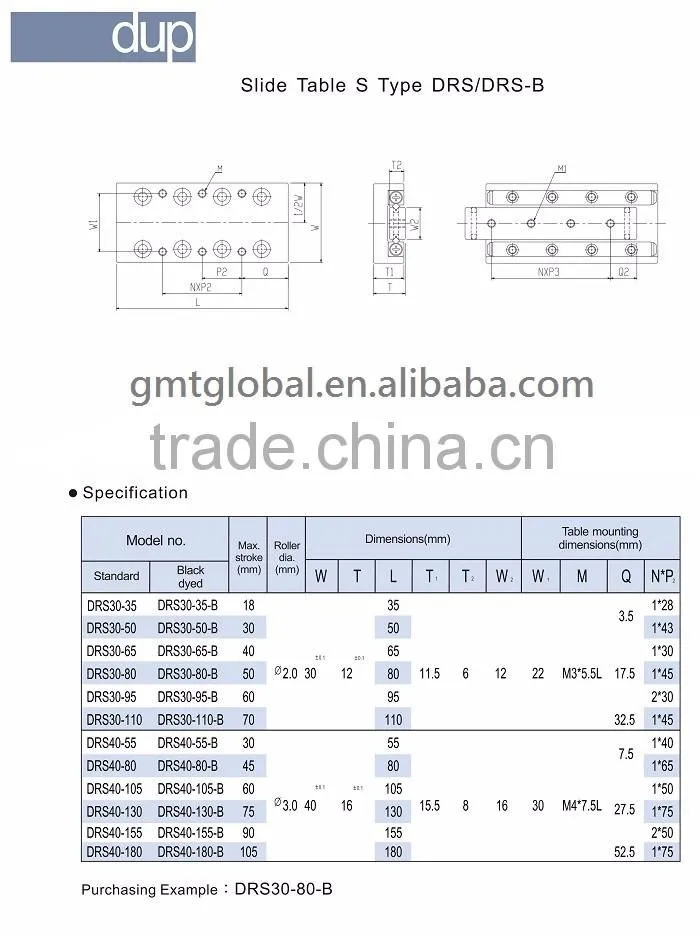

* Product Specification

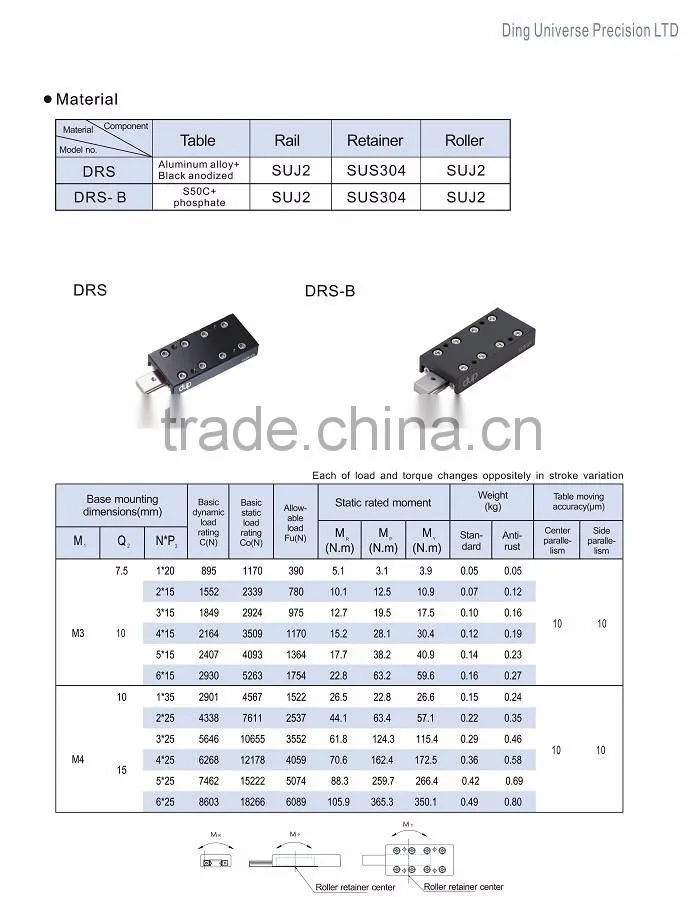

Component Material Introduction
| Model no. | Material indication | |||
| Table | Rail | Rataioner | Roller | |
| DRA/DRB | Aluminum- anodized black | SUJ2 | SUS304 | SUJ2 |
| DRM/DRH/DRS | ||||
| DRA-B/DRB-B | ||||
| DRM-B/DRH-B | S50C+phosphate | SUJ2 | SUS304 | SUJ2 |
| DRS-B | ||||
* new dup DRS/DRS-B Linear motion table sliding table *

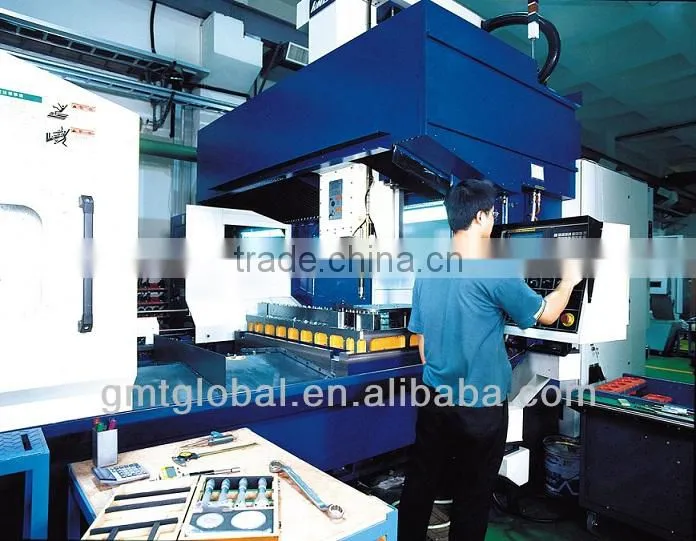

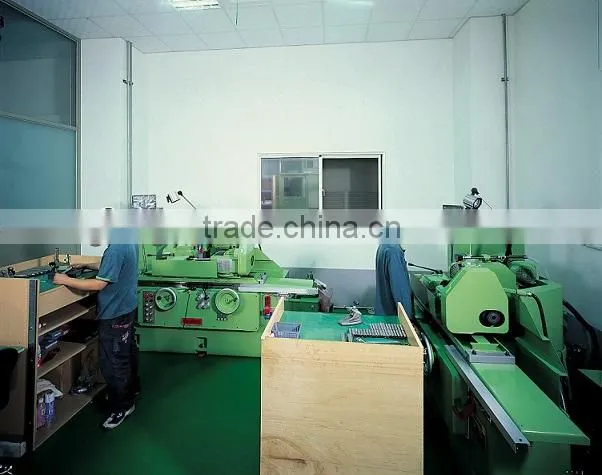

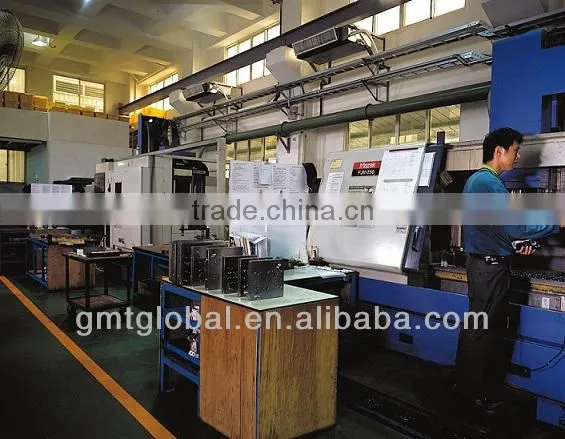

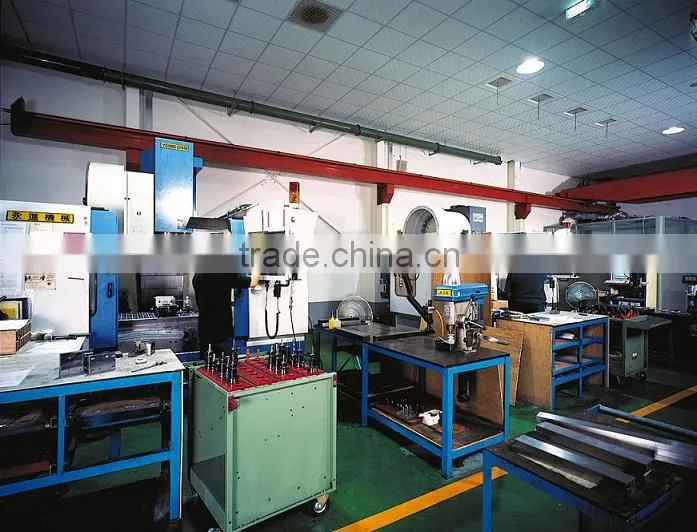

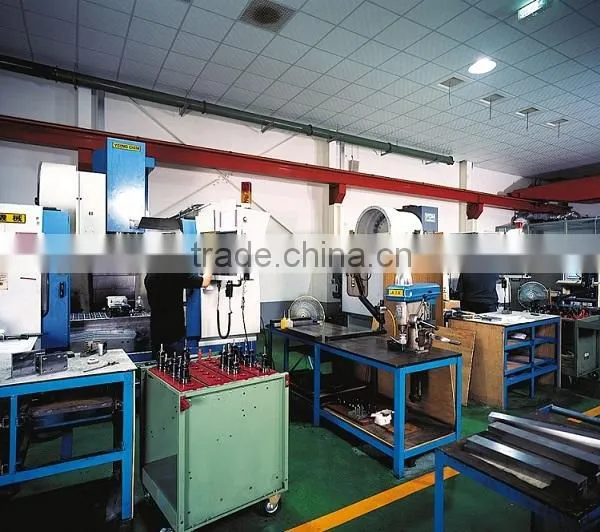

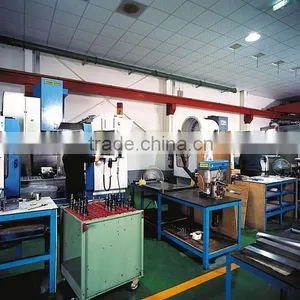

* Factory view:
