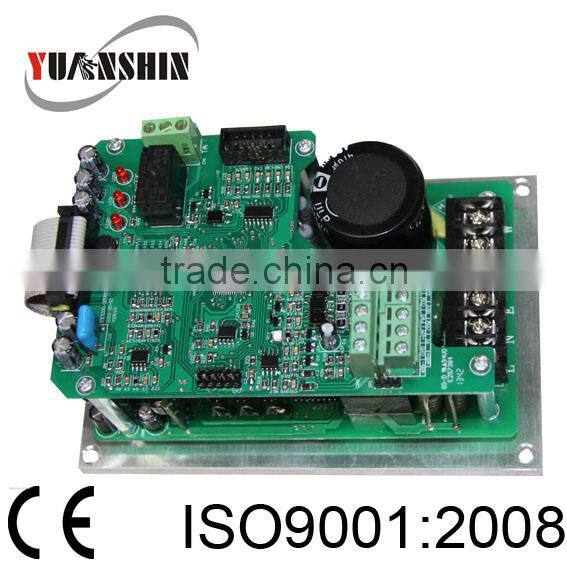

2HP 1.5KW PCB VFD

2HP 1.5KW PCB VFD thumbnail-1
2HP 1.5KW PCB VFD photo-1
US$ 55 - 65 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yuanshin
Model Number:
YX3300 series
Contact Supplier Request Quote Chat Now
Shenzhen Yuanxin Electric Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Yuanshin
Model Number YX3300 series
Output Power Other, 0.2KW to 1.5kw
Output Type Triple
Size 150*98*120mm
Weight 1.2kg
Input Voltage 220V
Output Voltage 0-220V
Type Other, AC-DC-AC type
Output Frequency 0-500Hz
Output Current 1.6A to 7.5A

Specifications

2HP 1.5KW PCB VFD
1.Use Fuji IGBT ,TI DSP chip set.
2.Certificate:CE ,ISO9001





Product Description



2HP 1.5KW PCB VFD (frequency inverter=frequency converter=ac drive =VFD =VSD=  VVVF =motor speed controller)



2HP 1.5KW PCB VFD





YX3000 Series General Purpose Frequency Inverter is specially designed for variable frequency control and energy saving. Because of the compact size and cheaper price, This installment series is very popular now.



Instruction



YX3000 Series Sensor-less Vector Control Frequency Inverter is a function enhanced product with strong stability. It takes use of Fuji IGBT and the TI DSP chip set, completely optimizes vector control and V/F control. It has been widely deployed in various industrial environment



Specification



Function Specification
input Input Voltage(V) AC 1PH 220V±20%
Input frequency(Hz) 47~63Hz
output  Output Voltage(V) 0~input voltage
Output Frequency(Hz) 0~500Hz
Control Mode V/F,sensorless vector control
Motor Type Asynchronous motor
Speed Control Accuracy ±0.2%(sensorless vector control)
Speed Fluctuation ±0.3%(sensorless vector control)
Technical Torque Response  <20ms(sensorless vector control)
Control Feature Torque control Accuracy 10%(sensorless vector control)
Starting Torque Asynchronous motor:0.25Hz/150%(sensorless vector control)
150% of rated current:1 minute
Overload Capability  180% of rated current: 3 second
Digital setting ,analog setting ,pulse frequency setting ,multi-step,textile swing frequency
Frequency Setting speed running setting ,simple PLC setting ,PID setting ,jop runing setting
RS485 standard communication port available, MODBUS communication setting
Running Control Auto voltage regulation When the grid voltagechanges,to maintain constant output voltage
Feature  Fault Protection  undervoltage,overheating, overcurrent and overload ,etc.
Speed Tracking Function The rotating motor can be started smoothly





Technical Features



  1. Two control modes: V/F control, and sensor-less vector control;
  2. Starting torque: 0.4Hz-20Hz;
  3. Internal brake unit has been deployed, and the braking resister can be connected outside for a quick stop;
  4. Five kinds of V/F control, which are constant torque V/F curve, One kind of customer defined V/F curve, 3 kinds of down torque curve (2.0/1.7/1.2 times the power).
  5. Through PLC or internal control terminal, multi-speed control and PID control could be realized. And users could combine a variety of operating modes while it’s necessary;
  6. Supporting multi-frequency deploy methods: digital setup, PID setup, analog quantity setup, and communication setup;
  7. Supports starting and stopping DC brake;
  8. YX3000 is Equipped with jump frequency control, which prevents mechanical resonance and makes the system more stable and reliable;
  9. YX3000 has build-in PI in order to establish close-loop control system easily;
  10. YX3000 is designed with the central frequency switch function, which let the end user to fix the central frequency while it is necessary;
  11. YX3000 has been equipped with RS485 communication interface, which support MODBUS protocol with ASCII and RTU forms;



Application



  1. Boiler drum, Induced draft fan, Mine exhaust fan;
  2. Energy-saving central air conditioning, Energy-saving air compressor
  3. Mechanical equipment, Conveyor
  4. Oil injection pump, Oil transfer pump;



Removable panel



2HP 1.5KW PCB VFD
