Home > Products > Vehicle Generator > 12kw single phase diesel generator vehicle mounted

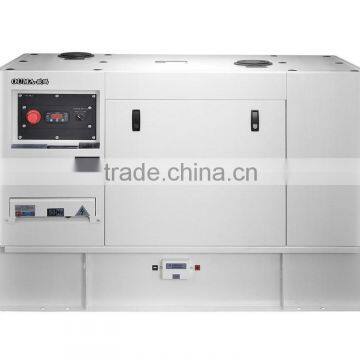

12kw single phase diesel generator vehicle mounted
- 20 Unit / Units per Month
- Shanghai or other Chinese ports
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | OUMA | Model Number: | OM12CY |
Output Type: | AC Single Phase | Speed: | 1500/1800rpm | Frequency: | 50HZ/60HZ |
Rated Power: | 13.6KW/50HZ,15KW/60HZ | Rated Voltage: | 115/230 120/240 | Rated Current: | 118/59.1 125/62.5 |
Product Description
Generator Set | Model | OM12CY |
Brand | OUMA | |
Rated power(KW) | 13.6 15 | |
Rated voltage(V) | 115/230 120/240 | |
Rated current(A) | 118/59.1 125/62.5 | |
Rated frequency(Hz) | 50 60 | |
Waveform distortion | Sinewave, distortion ≤5% | |
Noise level(dB@7m) | 62 | |
Battery(12V-Ah) | None | |
Overall dimension (L×W×H)(mm) | ≤ 1410x780x950 | |
Fuel tank capacity(L) | None | |
Diesel Engine | Model | OM492 |
Brand | OUMA | |
Power output(KW) | 17 20.4 | |
Type | Four cylinder, direct injection, four stroke | |
Displacement(L) | 1.8 | |
Bore×Stroke(mm) | 92×95 | |
Rotation speed(r/m) | 1500 1800 | |
Governor system | Mechanical | |
Starting mode | 12V DC | |
Filter system | Dry air filter, fuel filter, oil filter | |
Cooling type | Enclosed water-cooled | |
Exhaust muffler | Downward | |
Air inlet | Bottom | |
Fuel consumption(g/kw.h) | ≤220 | |
Oil capacity(L) | 8.3 | |
Alternator | Model | OM184 |
Brand | OUMA | |
Rated power(KW) | 13.6 15 | |
Excitation mode | Brushless, self-excitation | |
Voltage regulation | Auto regulation | |
Number of phase | Single phase,three wire | |
Number of pole | 4 | |
Rotation speed(R/M) | 1500 1800 | |
Temperature rise(℃) | 125 | |
Insulation grade(stator/rotor) | H/H | |
Voltage regulation range w/o load | ≥95%~105% | |
Steady-state voltage deviation | Less ±1% | |
Interference factor | TIF<50,THF<2% | |
IP grade | IP22 | |

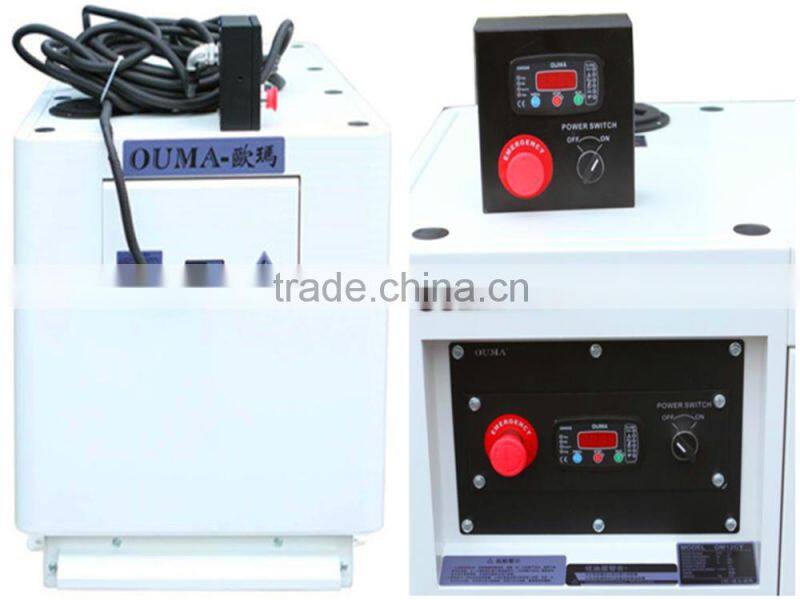

Control Panel | Model | OM588 |
Manufacturer | OUMA | |
Power output | Terminal post | |
Installation | In-built | |
Manufacturer | OUMA | |
Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
Parameter display | AC voltage, frequency, running hour, charging voltage |
FAQ
1. Why OUMA is the NO.1 in vehicle mounted generator?
OUMA is the first company to do R&D and manufacturing of vehicle mounted generator and always focusing on optimized solutions for customers.
2. What's your market share of this special generator?
NO. 1 with over 95% market share in China. OUMA is second to none in China.
3. What's your warranty?
15 months or 1200 running hours whichever comes first. OUMA guarantee response within 24 hours.
4. What's your delivery time?
Within 20 days for OUMA standard products.
