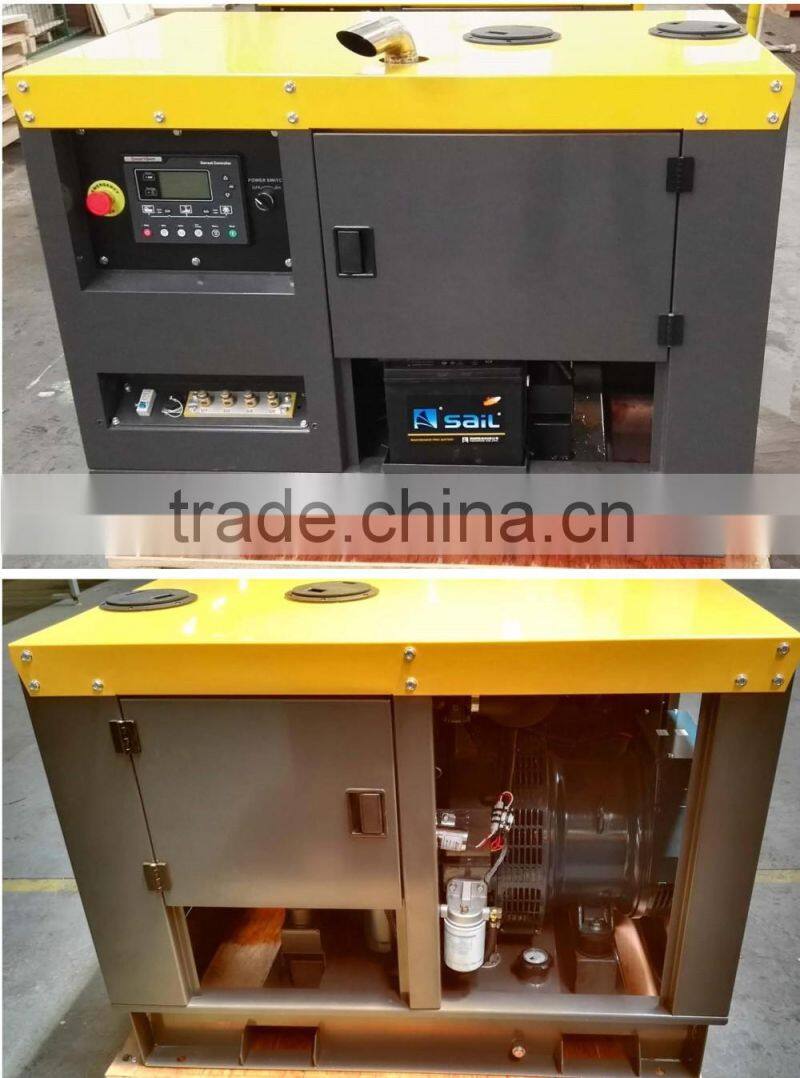

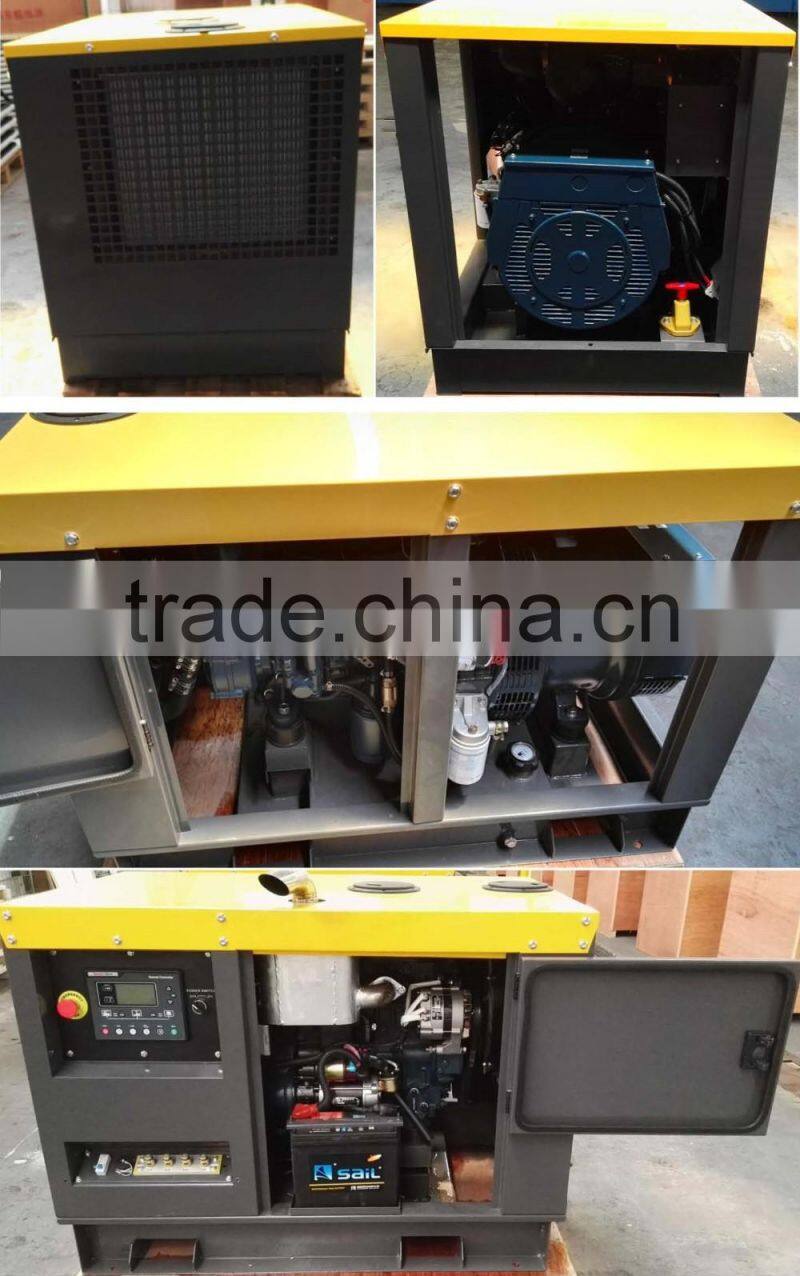

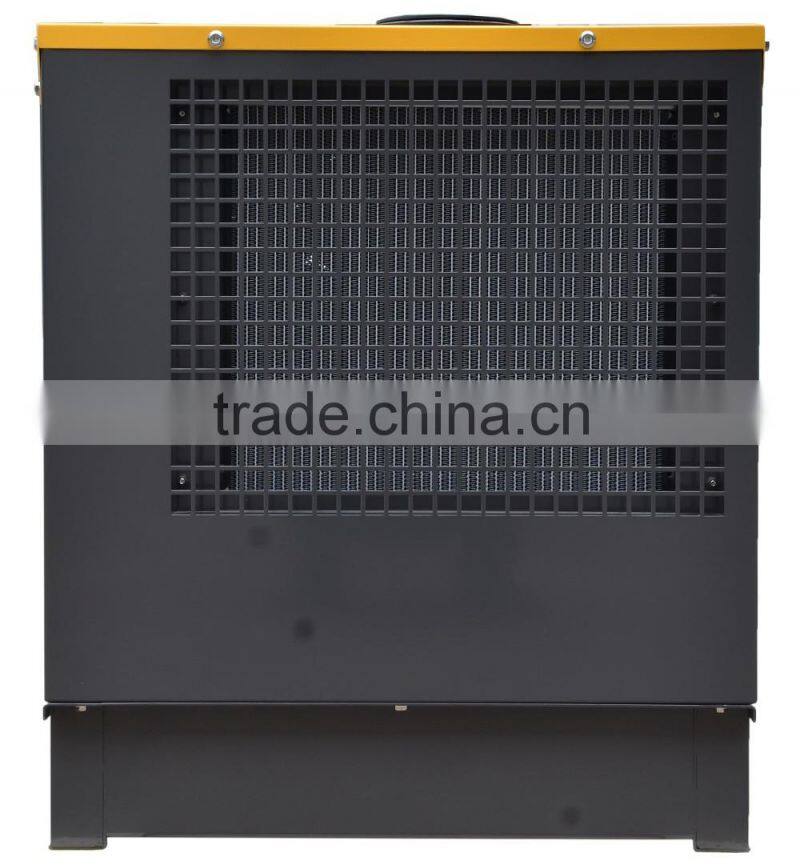

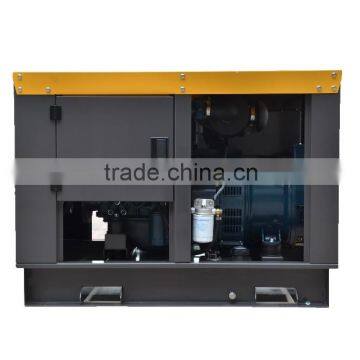

8kw/10kva Three Phase Semi Silent Diesel Generator
US$ 2,000 - 2,500
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OUMA
Model Number:
OM8CYE3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or any Chinese port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8kw/kva Single Phase Semi Silent Diesel GeneratorUS$ 2,000 - 2,500MOQ: 5 Units -
30KW/40KVA Three Phase Silent Diesel GeneratorNegotiableMOQ: 1 Unit
-
25KW/30KVA Three Phase Silent Diesel GeneratorNegotiableMOQ: 1 Unit
-
25kw/kva Single Phase Silent Rain Proof Diesel GeneratorNegotiableMOQ: 1 Unit
-
30kw/kva Single Phase Silent Rain Proof Diesel GeneratorNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
OUMA
Model Number
OM8CYE3
Output Type
AC Three Phase
Speed
1500RPM/50HZ,1800RPM/60HZ
Frequency
50HZ/60HZ
Rated Power
8KW/50HZ,11KW/60HZ
Rated Voltage
220V
Rated Current
83A
OUMA semi silent diesel gensets enjoy good image in the market with unique advantages and features:
Extreme small size: Only 1560*750*880 mm

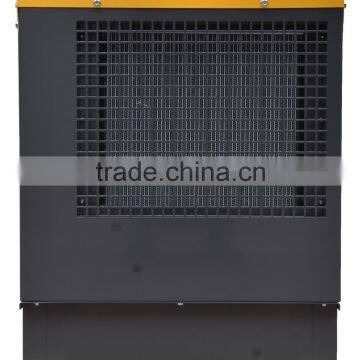

Battery switch, patent radiator, forklift pockets as standard configuration.

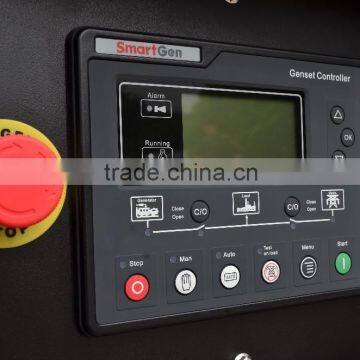

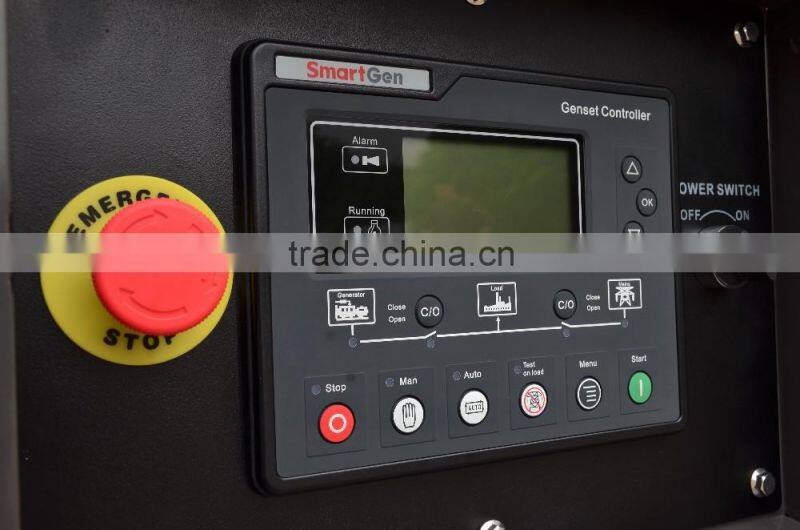

Smart control panel with ATS interface ready, AMF function available.
Strong rigid durable engine and high performance alternator. OUMA warranty 15 months or
1200 running hours whichever comes first. Most favourable among genset manufacturers!
Specifications:
| Generator set | Model | OM8CYE3 |
| Brand | OUMA | |
| Rated power(KW) | 8 11 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 14.4 19 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 75 | |
| Battery(12V-Ah) | 85 | |
| Overall dimension (L×W×H)(mm) |
1560*750*880 | |
| Overall weight(kg) | ≤580 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 15 | |

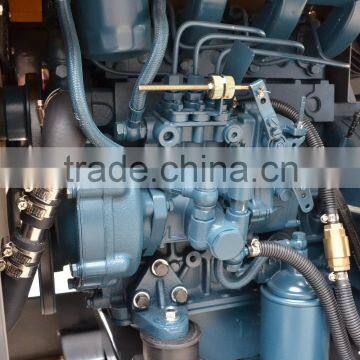

| Diesel engine | Model | OM385 |
| Brand | OUMA/YANGDONG | |
| Power output(KW) | 10 12 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |

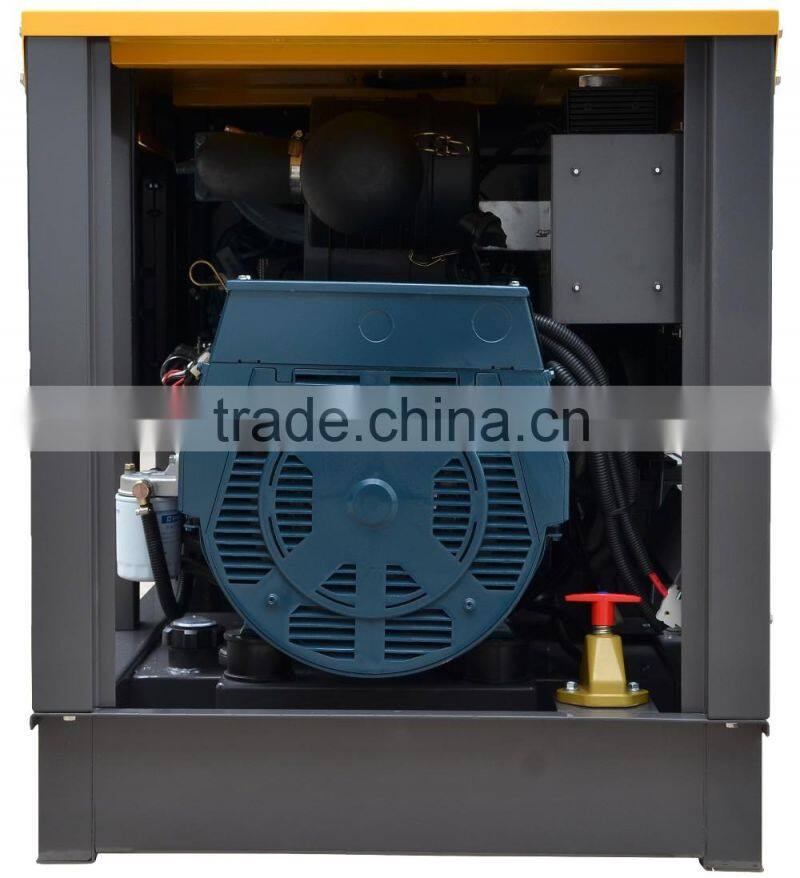

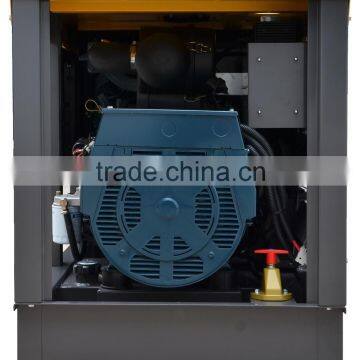

| Alternator | Model | OM164C3 |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%~105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF<50,THF<2% | |
| IP grade | 22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |

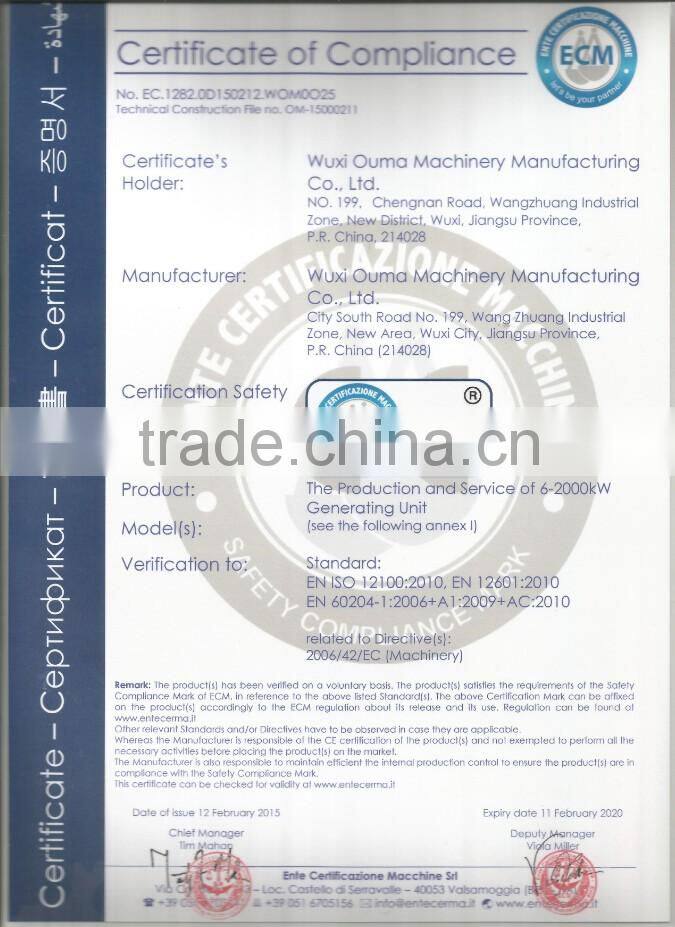

ISO, CE certifcates
Presentation in overseas exhibitions!
FAQ:
1. Why should I choose OUMA among so many Chinese factories?
OUMA is only making high quality products. Never cheap price low quality units.
Chinese engine we only use the top brands.
15months or 1200 running hours warranty.
2. What’s your lead time?
Generally within 20 working days
3. What are the biggest advantages and features of OUMA water cooled gensets?
Rain proof Special cooling system 62dbA low noise small size
4. Do you accept sample order?
Yes, and we do suggest new customer doing so to verify our excellent quality.
