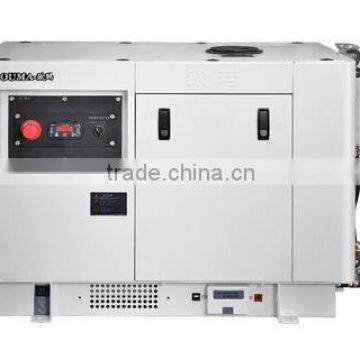

Marine Generator 8kw Three Phase

Marine Generator 8kw Three Phase thumbnail-1
Marine Generator 8kw Three Phase thumbnail-2
Marine Generator 8kw Three Phase thumbnail-3
Marine Generator 8kw Three Phase thumbnail-4
Marine Generator 8kw Three Phase thumbnail-5
Marine Generator 8kw Three Phase photo-1
Marine Generator 8kw Three Phase photo-2
Marine Generator 8kw Three Phase photo-3
Marine Generator 8kw Three Phase photo-4
Marine Generator 8kw Three Phase photo-5
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OUMA
Model Number:
OM8CYZ3
Contact Supplier Request Quote Chat Now
Wuxi Ouma Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other Chinese ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name OUMA
Model Number OM8CYZ3
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50HZ/60HZ
Rated Power 8kw
Rated Voltage 220V
Rated Current 15A
Product Description
Generator
Model
OM8CYZ3
Brand
OUMA
Rated Power(KW)
8                                     11
Rated Voltage(V)
115/230            120/240
Rated Current(A)
14.4                            19
Rated Frequency(Hz)
50                                 60
Waveform Distortion
Sinewave, distortion ≤5%
Noise Level(dBA@7m)
62
Battery(12V-Ah)
None
Overall Dimension(L*H*W)(mm)
≤ 1070x680x750
Overall Weight(kg)
≤480
Fuel Tank Capacity(L)
None
Diesel Engine
Model
OM388
Brand
OUMA
Power Output(KW)
12                                   14
Type
3 cylinder, direct injection, four stroke
Displacement(L)
1.4
Bore*Stroke(mm)
88×95
Rotation Speed(r/m)
1500                            1800
Governor System
Mechanical
Starting Mode
12V DC
Filter System
Dry air filter, fuel filter, oil filter
Cooling Type
External cycling sea water or river water
Exhaust Muffler
Water cooled
Heat Exchanger(L)
9
Sea Water Pump Suction(M)
1
Sea Water Filter
Available
Fuel Consumption(g/kw.h)
≤220
Oil capacity(L)
8.3
Alternator
Model
OM164CZ3
Brand
OUMA
Rated power(KW)
8.5                                      11
Excitation mode
Brushless, self-excitation
Voltage regulation
Auto regulation
Number of phase
Three phase，four wire
Number of pole
4
Rotation speed(R/M)
1500                                  1800
Temperature rise(℃)
125
Insulation grade(stator/rotor)
H/H
Voltage regulation range w/o load
≥95%～105%
Steady-state voltage deviation
Less ±1%
Interference factor
TIF＜50,THF＜2%
IP grade
IP22
Control Panel
Model
OM588
Manufacturer
OUMA
Power output
Terminal post
Installation
In-built and remote cable connected
Remote conrol w/ cable(M)
12
Manufacturer
OUMA
Auto function
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
Parameter display
AC voltage, frequency, running hour, charging voltage
Our Company

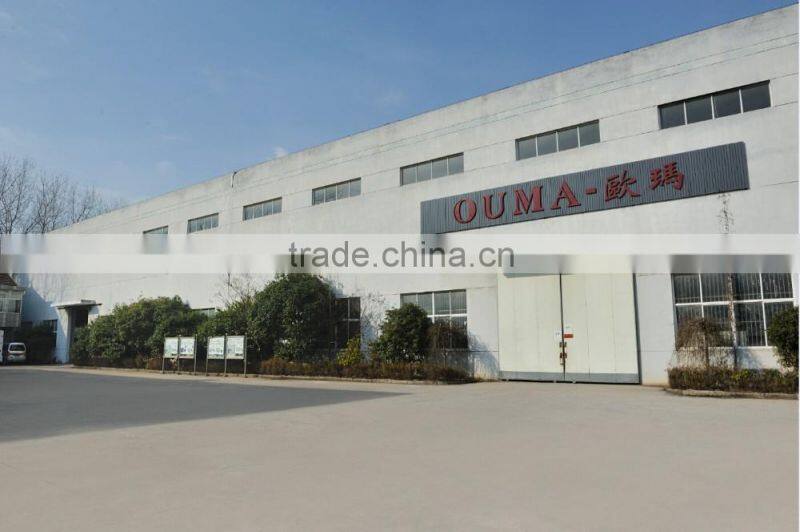

Factory

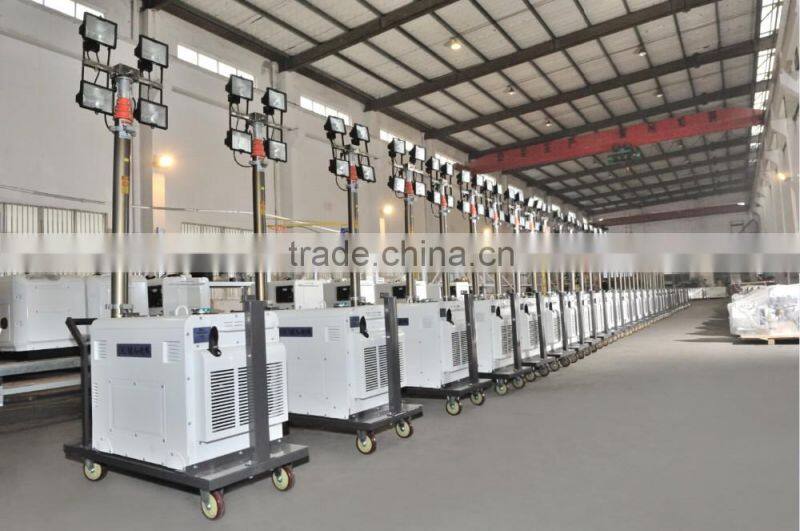

Our Factory

Workshop

Our Workshop

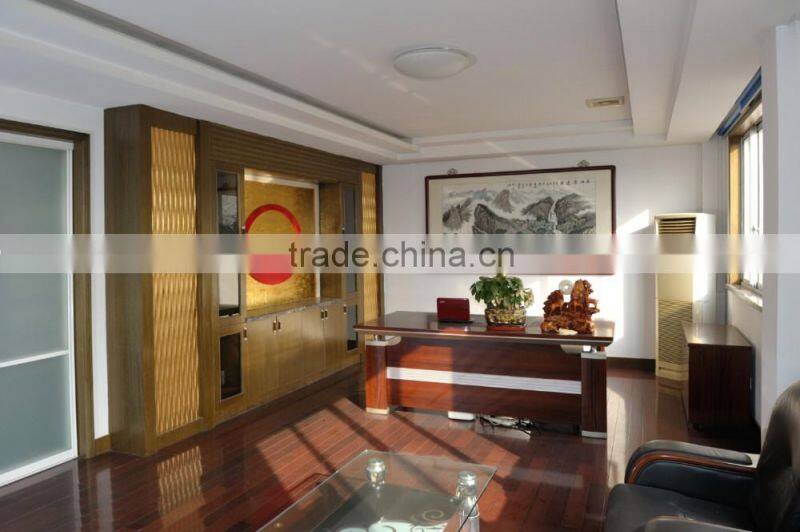

Office

Our Warehouse

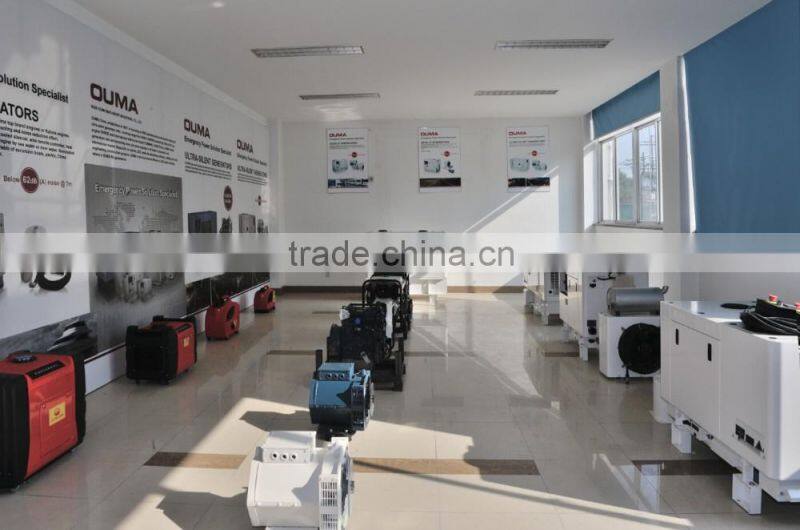

Show Room

Our Team

Our Benefits

1. Powerful engine, high efficent brushless alternator.

3. Corrosion-resistant cover of assembling bolts.

3. 2.0mm cold-rolled steel housing, rigid and corrosion resistant

4. Above 50% market share in marine industry in China.

5. Smallest size and most compact structure, maximum loading and installation space.

6. ISO and CE certificated.

7. 15 months or 1200 running hours warranty, whichever comes first.

8. Competitive price and fast delivery within 20 working days

Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for cost charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
