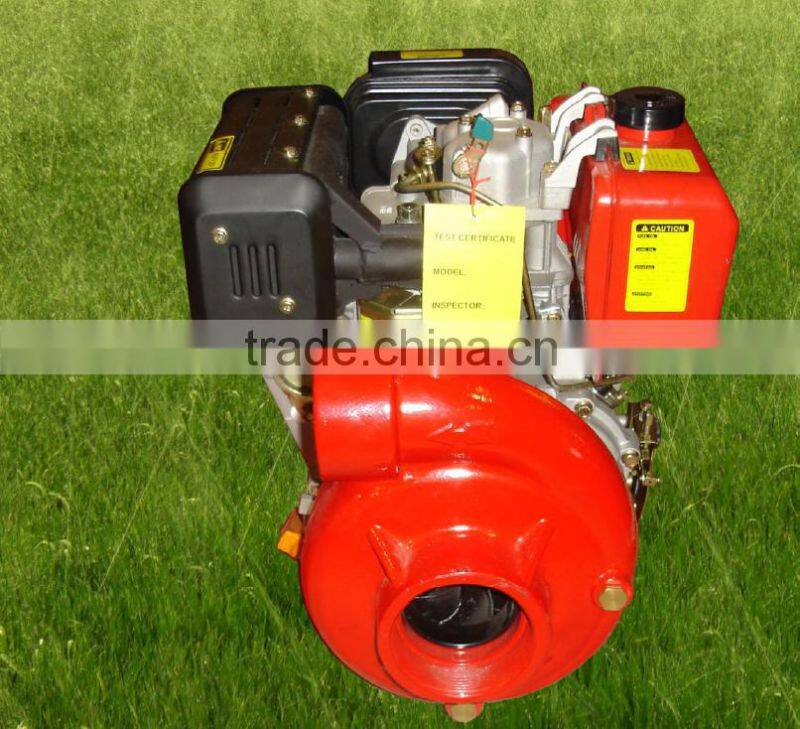

Cast Iron Water Pump With Diesel Engine
US$ 33.00 - 40.00
/ Piece
10 Pieces(Min. Order)
- Shanghai or any Chinese port
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Neutral | |
| Model Number | 1.5H 171 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |

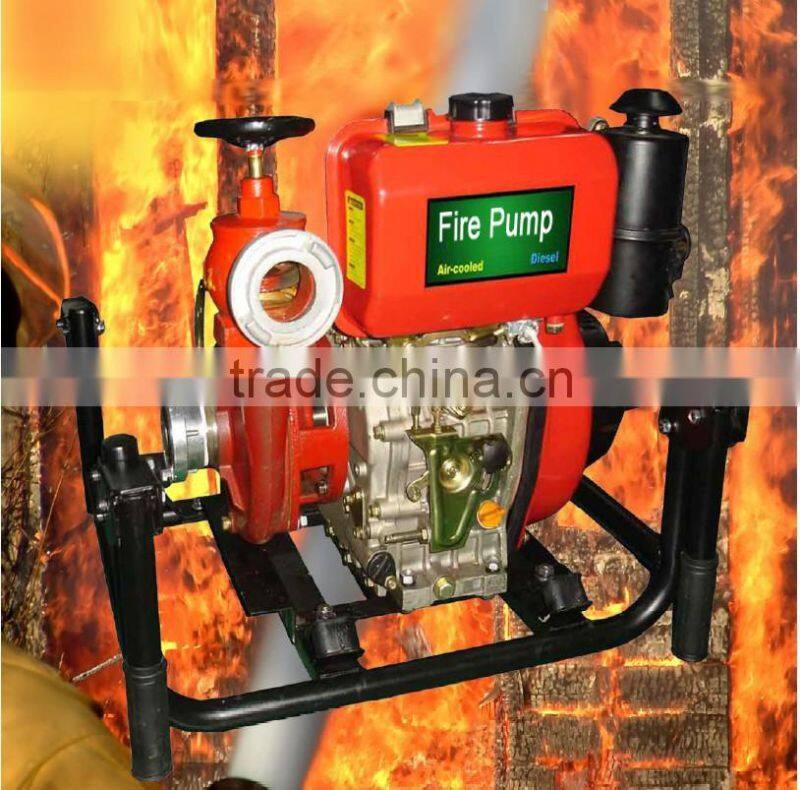

| Application | Fire |
Product Description
Cast Iron Pump are featured with good durability, big capacity and lift head than aluminium pump,
so cast iron pumps are widely used in agriculture, civil engineering, construction,mining, fire fighting etc.
You can order with us in different options.
1. Complete Casting Iron Water Pump

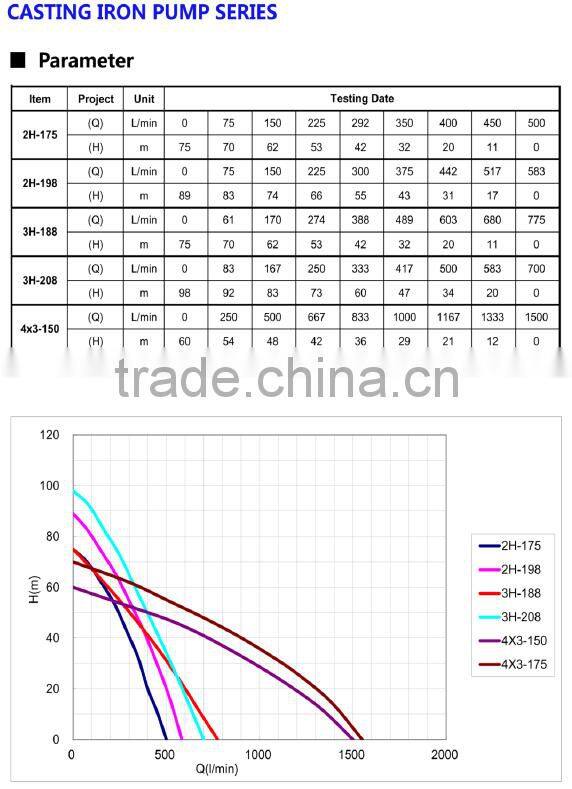

Specifications
| MODEL | 2x1.5 175 | 2H-175 | 2H-198 | 3H-188 | 3H-208 | 4X3 150 | 4X3 170 |
| Outlet Size(mm) | 40 | 50 | 50 | 80 | 80 | 80 | 100 |
| Inlet Size(mm) | 50 | 50 | 50 | 80 | 80 | 100 | 100 |
| Flow(m ³/h) | 30 | 30 | 35 | 40.4 | 40 | 90 | 150 |
| Lift H.max(m) | 75 | 80 | 92 | 80 | 102 | 60 | 75 |
| Impeller | 175 | 175 | 198 | 188 | 208 | 150 | 170 |
| Shaft | 3/4-16UNF | 3/4-16UNF | 1-14UNS-2A | 1-14UNS-2A | 1-14UNS-2A | 1-14UNS-2A | 1-14UNS-2A |
| Engine | 173F | 178F | 186FA | 186FA | 188FB | 186FA | 290F |
| Engine Power (KW) | 3.4 | 4 | 6.3 | 6.3 | 7.4 | 6.3 | 14.5 |
| Engine Power (HP) | 6 | 7 | 10 | 10 | 12 | 10 | 20 |
| Engine displacement | 238 | 296 | 406 | 406 | 456 | 406 | 954 |

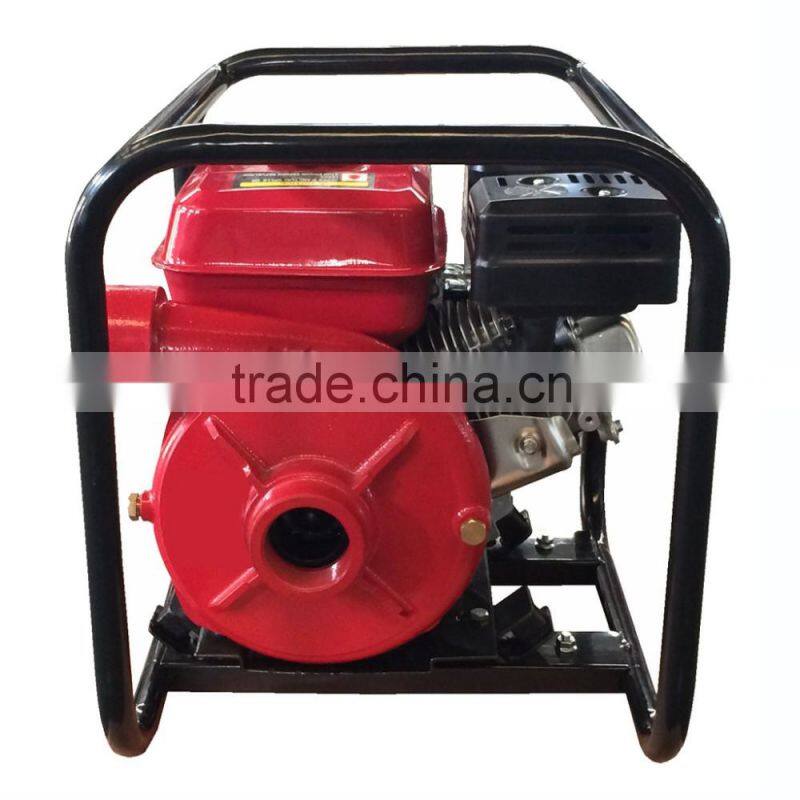

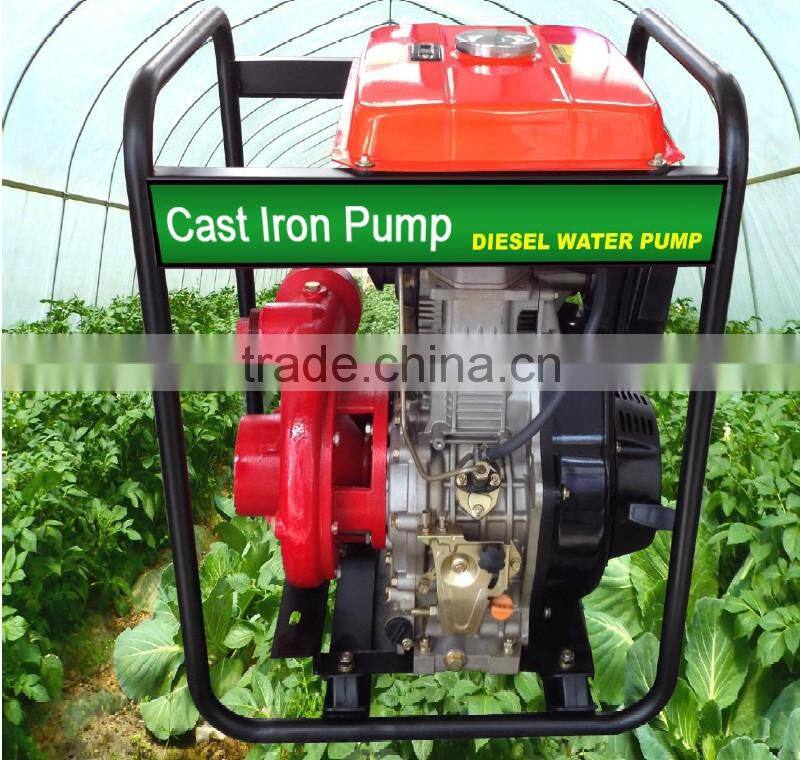

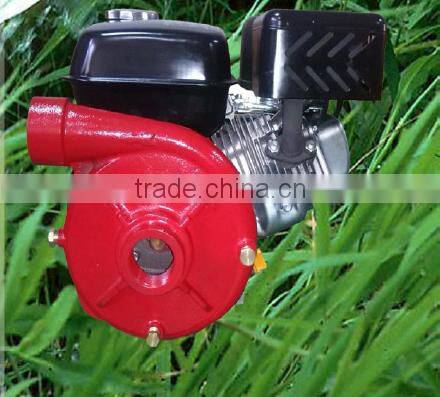

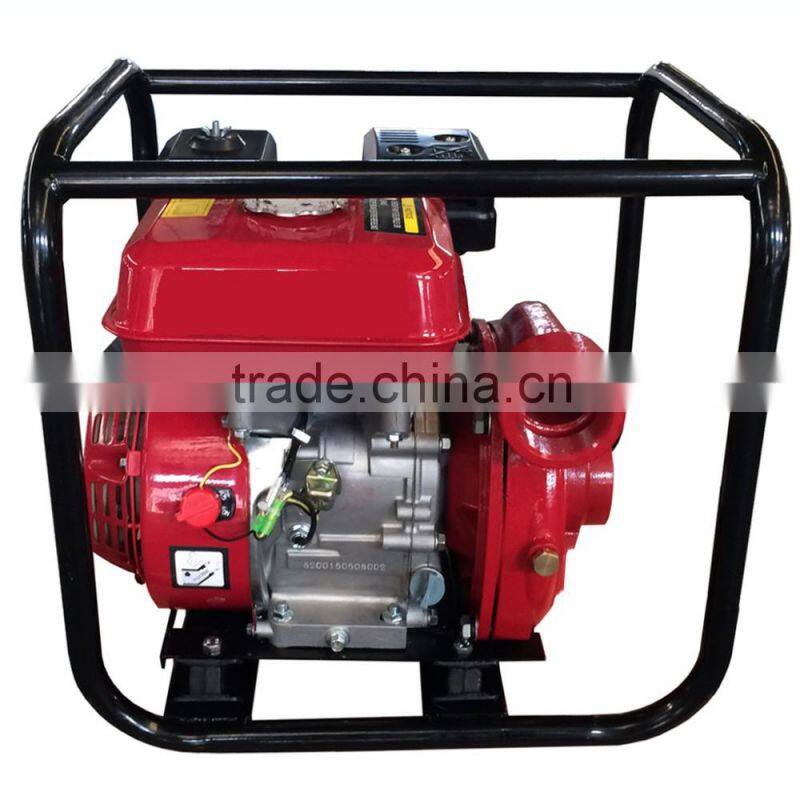

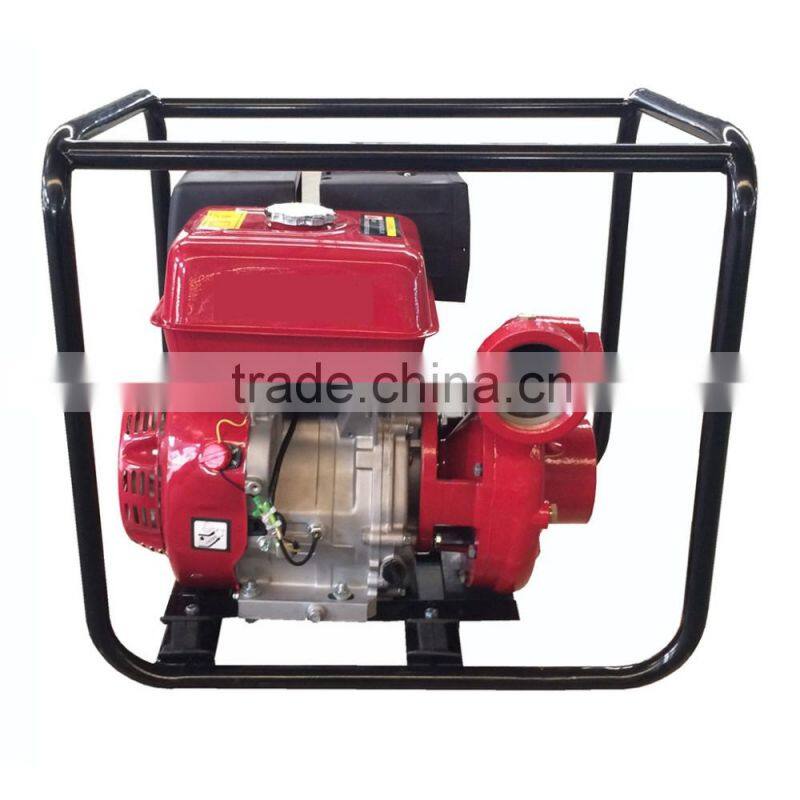

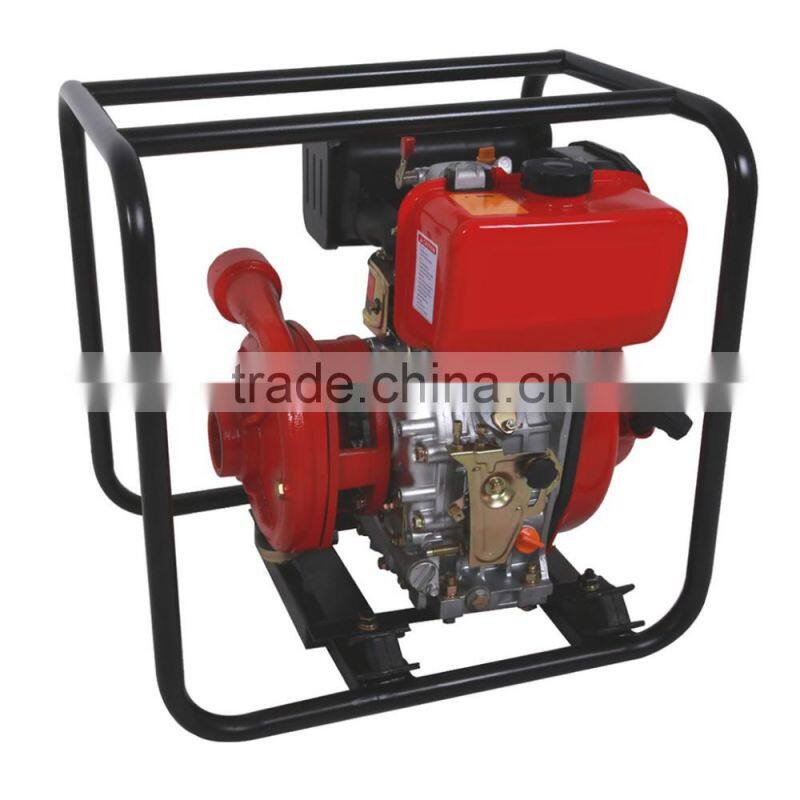

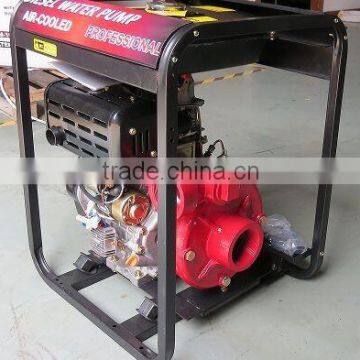

2. Casting Iron Pump with Diesel or Gasoline Engine

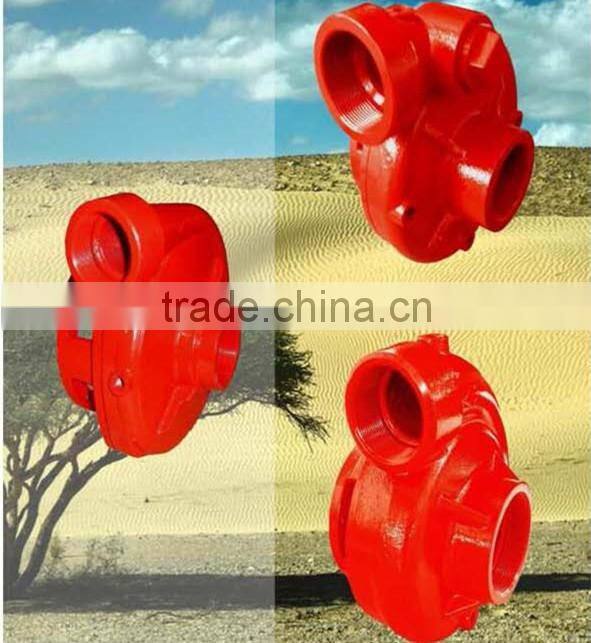

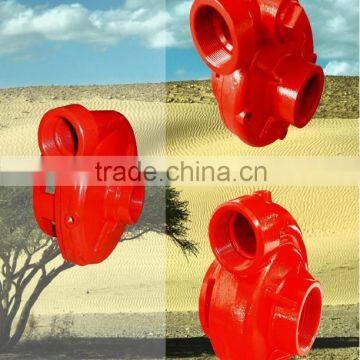

3. Cast Iron Pump only, without engine and frame.

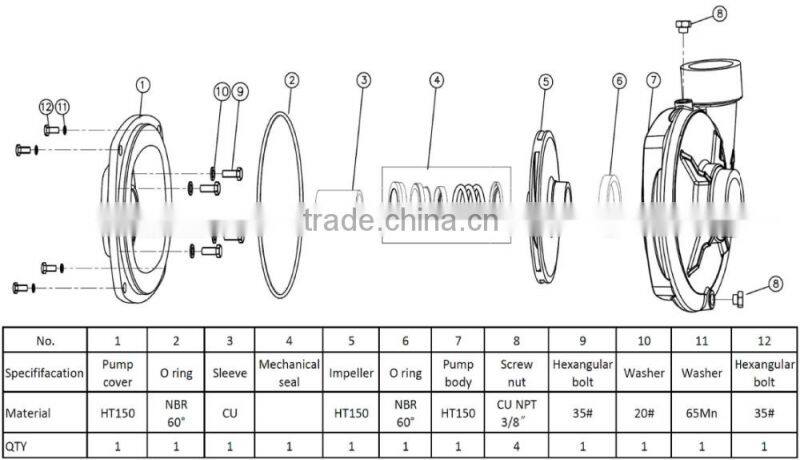

Parts and materials

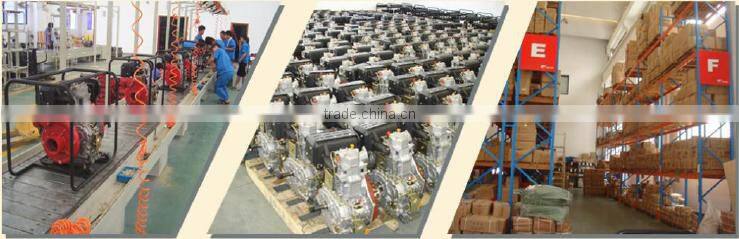

Production and certification
