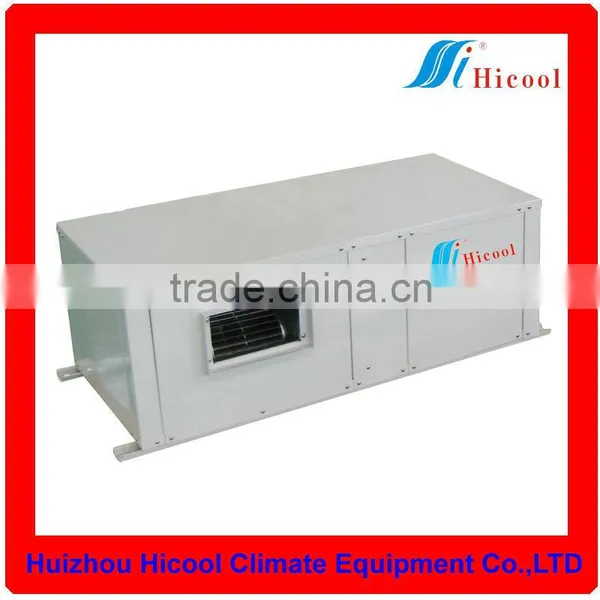

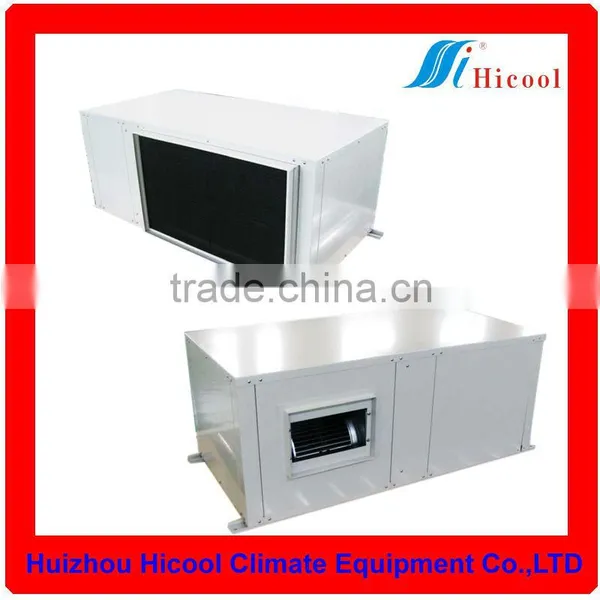

Ceiling Suspend Water Source Heat Pump 3KW--13KW
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Water Source Heat Pump
Installation:
Wall Mounted
Storage / Tankless:
Other, air to water
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Water Source Heat Pump Energy SavingNegotiableMOQ: 1 Set -
Packaged Horizontal Water Source Heat Pump Domestic/ Commercial UseUS$ 362 - 900MOQ: 1 Set
-
Residential Water Source Heat Pump 13KWUS$ 362 - 900MOQ: 1 Set
-
Water Source Heat Pump Unit (Water to Air) 18000BTU Air ConditionerUS$ 362 - 900MOQ: 1 Set
-
Water Source Heat Pump Unit (Water to Air) 5kw 10kw 15kwUS$ 362 - 900MOQ: 1 Set
Type
Water Source Heat Pump
Installation
Wall Mounted
Storage / Tankless
Other, air to water
Housing Material
Stainless Steel
Use
Other, Industrial / commercial building
Place of Origin
Guangdong, China
Brand Name
hICOO
Model Number
H-WP30B
Ceiling suspend Water Source Heat Pump
Features:
1. High efficiency, energy saving, investment saving
The water cooled packaged heat pump has higher efficiency than air cooled heat pump. If the system needs to supply cooling capacity and heating capacity at the same time, the unit can realize internal energy balance, reduce operation time of cooling tower and heating equipments to save energy. Meanwhile, comparing with traditional central air conditioners, this unit does not need special machine room or big air duct.
2. Easy to install, flexible application
Simple design and installation, less control devices, easy to configure water pipe work, short designing period. Meanwhile, user can select cooling or heating according to different application conditions, or partial cooling with partial heating.
3. Separate measuring
It can connect to user’s independent electric meter, convenient for separate calculation of electric charges, help to avoid conflict.
4. Introducing fresh air to improve air quality
The system can introduce fresh air, exempt annoyance of air-condition disease.
Application range
Widely applied to office buildings, apartments, hotels, banks, schools and gymnasiums etc.
Finished production:
Technical Data:
|
Packaged Horizontal Water Source Heat Pump Parameter | |||||||||
| Model | H-WP30B | H-WP36B | H-WP42B | H-WP60B | H-WP75B | H-WP95B | H-WP125B | ||
| Cooling Capacity | kW | 3.0 | 3.6 | 4.1 | 6.1 | 7.8 | 9.2 | 13.0 | |
| Heating Capacity | kW | 3.1 | 3.7 | 4.2 | 6.3 | 8.0 | 9.3 | 13.3 | |
| Rated Input Power | Cooling | kW | 0.8 | 1.0 | 1.1 | 1.7 | 2.0 | 2.7 | 3.6 |
| Heating | kW | 0.9 | 1.1 | 1.2 | 1.8 | 2.1 | 2.8 | 3.7 | |
| Rated Input Current | Cooling | A | 3.6 | 4.6 | 5.1 | 8.1 | 9.6 | 11.5 | 6.1 |
| Heating | A | 3.9 | 5.0 | 5.5 | 8.6 | 10.0 | 11.7 | 6.3 | |
| Power Supply | 220V~/50Hz/1Ph | 380V~/50Hz/3Ph | |||||||
|
Compressor |
Type | Rotary |
Scroll |
||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Refrigerant | R22(R410A) | ||||||||
| Refrigerant Charge | kg | 1.2 | 1.4 | 1.6 | 2.0 | 2.2 | 2.7 | 3.0 | |
| Protection | High/low pressure protection, over-heat protection, over-current protection, water break protection | ||||||||
| Air Flow Volume | m3/h | 550 | 600 | 850 | 1300 | 1600 | 1800 | 2400 | |
| Fan Power | W | 25 | 30 | 40 | 50 | 70 | 90 | 120 | |
| Static Pressure | Pa | 30 | 30 | 30 | 30 | 30 | 30 | 40 | |
| Cooling Water Flow | m3/h | 0.60 | 0.75 | 0.80 | 1.20 | 1.80 | 2.15 | 2.67 | |
|
Cooling Water Connecting Pipe |
DN20 | DN20 | DN20 | DN25 | DN25 | DN32 | DN32 | ||
| Water Resistance | kPa | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 23.0 | 25.0 | |
| Noise | dB(A) | 38 | 39 | 41 | 43 | 45 | 47 | 48 | |
| Net Dimension(LxWxH) | mm | 1060×580×410 | 1060×580×410 | 1060×580×410 | 1144×645×480 | 1144×645×480 | 1144×645×480 | 1350×645×550 | |
| Net Weight | kg | 58 | 65 | 72 | 76 | 80 | 95 | 105 | |
| Packing Dimension(LxWxH) | mm | 1180×600×480 | 1180×600×480 | 1180×600×480 | 1260×665×550 | 1260×665×550 | 1260×665×550 | 1480×665×620 | |
| Gross Weight | kg | 62 | 69 | 76 | 80 | 85 | 100 | 110 | |
|
Note: 1) Nominal cooling conditions: indoor dry bulb: 27°C, indoor wet bulb: 19°C, cooling water inlet: 30°C, cooling water outlet: 35°C 2) Nominal heating conditions: indoor dry bulb: 20°C, indoor wet bulb: 15°C, cooling water inlet: 20°C, cooling water outlet: 15°C. 3) Applicable temperature range: 21-30°C 4) Manufacturer keeps the right to change the above parameter without prior notice | |||||||||
About us
HICOOL REFRIGERATION INDUSTRY(HUIZHOU) CO., LTD is one of the most professional factories specialized in designing, manufacturing and exporting Commercial / Central air conditioning equipment, located in Huizhou City of Pearl River Delta , with occupation area of 25,000 square meters.
Since established in 2008, HICOOL has been insisting on developing new technologies and new products based on requirements of different customers from different countries and regions all around the word, under the guidance of Safe &Reliable, Efficient & Environmental, Creative & Technological, Precise & Improving , to offer products with reliable quality, elegant design and high efficiency. Our factory owns advanced producing lines and equipment, as well as famous testing systems, under the control of international advanced management system ISO9001. And, we've also obtained the certification of CE, CB, etc, for our main products.
HICOOL can offer complete series of commercial / central air conditioner products, including High / Low Static Duct Type unit, Rooftop Packaged unit, Air-cooled Split Type unit, Small / Modular Air-cooled Chiller (H.R. optional), Swimming Pool Heat Pump unit, Air Source Heat Pump (H.R. optional), Ground Source Heat Pump unit, Air-cooled Scroll / Screw Chiller, Water-cooled Scroll / Screw Chiller, Air Handing Unit, Fan Coils, VRV system, Cassette type, etc. These products are well approved in both domestic and overseas market, and we're exporting the products to many countries and regions in East Europe, Middle East, South Africa, Oceania, South America, etc.
HICOOL has been focusing on offering the best products together and most satisfying services to our customers since the very beginning, and our services system runs through the whole process of businesses, including product R&D, product design, manufacture, before and after sale service. We're also aiming to improve our product and services continuously through the latest and most reliable technology in refrigeration field, based on the requirements of different customers.
High Quality Creates Cool Life . We believe that HICOOL will create more values for customers and society, through our competitive products and full-round services, as well as our sincerity in cooperation with different customers, and you.
