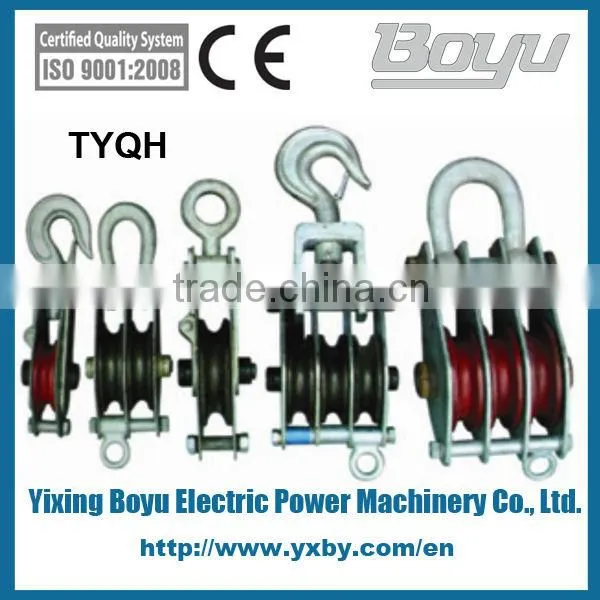

Service Snatch Block
1.Rated load: 10~150kN
2.Weight: 1.8~11.8
3.Max rope diameter: 6~21.5
4.No. of sheaves: 1~3

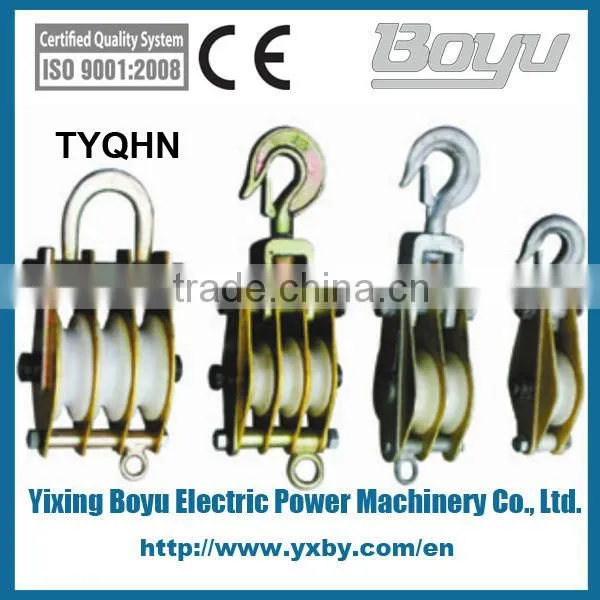

The service snatch blocks are supplied open or closed type. The wheels are mounted on ball bearings. Applied in line construction to craning weight ,etc. This tackle adopt aluminum alloy side panel and MC nylon sheave. Single sheave block is open.
Model |
Number of sheaves | Rated load(kN) | Outside diameterxwidth(mm) | Max rope diameter(mm) | Weight(kg) | Hoisting point type | ||
| QH1GN-1K | 1 | 10 | 100x31 | 7.7 | 1.8 | G | H | |
| QHN1-2 | 2 | 10 | 80x27 | 6 | 1.8 | G | H | |
| QHN1-3 | 3 | 10 | 80x27 | 6 | 2.1 | G | H | |
| QHN2-1K | 1 | 20 | 120x35 | 9.3 | 2.2 | G | H | B |
| QHN2-2 | 2 | 20 | 100x31 | 7.7 | 2.6 | G | H | |
| QHN2-3 | 3 | 20 | 100x31 | 7.7 | 3.7 | G | H | |
| QHN3-1 | 1 | 30 | 150x39 | 22 | 3.4 | G | H | B |
| QHN3-2 | 2 | 30 | 120x35 | 9.3 | 4.5 | G | H | |
| QHN3-3 | 3 | 30 | 100x31 | 7.7 | 4.6 | G | H | |
| QHN5-1K | 1 | 50 | 166x40 | 13 | 5.2 | G | H | B |
| QHN5-2 | 2 | 50 | 150x39 | 11 | 5.5 | G | H | |
| QHN5-3 | 3 | 50 | 120x35 | 9.3 | 5.1 | G | H | |
| QHN8-1K | 1 | 80 | 205x49 | 17 | 7.2 | G | H | B |
| QHN8-2 | 2 | 80 | 166x40 | 13 | 8.3 | G | H | |
| QHN8-3 | 3 | 80 | 150x39 | 11 | 7.9 | G | H | |
| QHN10-1K | 1 | 100 | 246x60 | 18.5 | 11.4 | G | B | |
| QHN10-2 | 2 | 100 | 166x40 | 13 | 10.2 | H | ||
| QHN10-3 | 3 | 100 | 150x39 | 11 | 11.7 | H | ||
| QHN15-1K | 1 | 150 | 280x65 | 21.5 | 12.1 | B | ||
| QHN15-2 | 2 | 150 | 205x49 | 17 | 12.8 | H | ||
| QHN15-3 | 3 | 150 | 166x40 | 13 | 11.8 | H | ||
More pictures:
Production workshop
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
....
