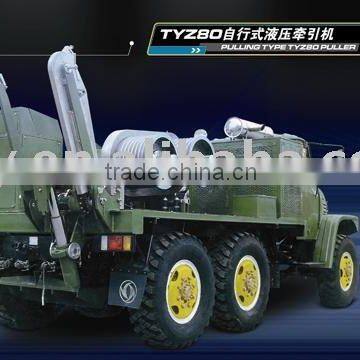

TYZ80 Self-propelled wire rope puller

In addition to the high performance and high configuration,this equipment also has unique selfpropelled and excellent cross-country performance, which makes field transfer much more convenient.Thus it better adapts to the 220kv line construction with characteristics of long construction section and field transfer distance, urgent construction period with especially heavy task.

Performance parameter

Max intermittent pulling force :85KN

Max continous pulling force:80KN

Corresponding speed:2.5km/h

Max continous pulling speed:5km/h

Corresponding pulling force:35KN

Structure parameter

Puller wheel diameter:540mm

Groove number:8

Max diameter of applicable steel wire rope :21mm

Max diameter of coupling :100mm

Electric systerm:24V

Max diameter of applicable wire coil:1400mm

Total weight:9800kg

Overall dimension (length*width*height):7150×2550×2280mm

Main comfigurations

Engine:Cummins

Main pump:German Rexroth

Main moter speed reducer :German Rexroth

Tail bracket hoisting motor:American Eton

Hydraulic meter: German WIKA

Chassis:Dongfeng

More pictures:

Production workshop

Company introduction

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system

History

Founded in 1993, Yixing city power machinery factory

Established in 1997, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.

....
