1.Max pull: 90kN
2.Engine: Cummins 118kw
3.Main pump & Reducer: German Rexroth
4.German WIKA

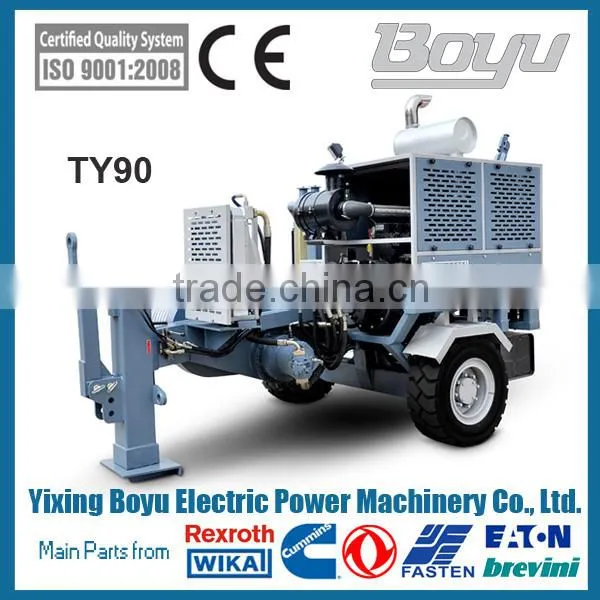

TY-90 Hydraulic Cable Pull machinery
TY90 Hydraulic Puller
This machine allows for the tension stringing of twin-bundle conductor of 500mm2
and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2
and below in flat lands, and of single conductor 720mm2 in various terrains;
besides, it can be used for traction stringing of OPGW or ADSS optical cable
and 220kV haulage rope in various terrains.
Performance parameter
Max intermittent pulling force : 90KN
Max continous pulling force: 80KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 40KN
Structure parameter
Puller wheel diameter: 540mm
Groove number: 8
Max diameter of applicable steel wire rope : 21mm
Electric systerm: 24V
Max diameter of applicable wire coil: 1400mm
Total weight: 4000kg
overall dimension (length*width*height): 4000×2200×2100mm
Main configurations
Engine:Cummins
Main pump: German Rexroth
Main moterspeed reducer : German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA
| Performance parameter | max inMax intermittent pulling force | 90kn |
| Max continous pulling force | 80kn | |
| Corresponding speed | 2.5km/h | |
| Max continous pulling speed | 5km/h | |
| Corresponding pulling force | 40KN | |
| Structure parameter | Puller wheel diameter | 540mm |
| Groove number | 8 | |
| Max diameter of applicable wire coil: | 1400mm | |
| Main comfigurations | Engine | Cummins |
| Main pump | German Rexroth |
Production pictures
Production workshop
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
....
