Help CenterTY800 Self-propelled Tractor Puller
Related Products
-
TY500 Self-propelled Mechanical PullerUS$ 12,000 - 18,000MOQ: 1 Set -
Cable Pulling Hydraulic Machine Corresponding Speed:2.5km/hNegotiableMOQ: 1 Set
-
Cable Pulling Hydraulic Machine Groove Number:7NegotiableMOQ: 1 Set
-
Max Intermittent Pulling Force :90KN TY90 Hydraulic Steel Cable PullerNegotiableMOQ: 1 Set
-
Hydraulic Steel Wire PullerNegotiableMOQ: 1 Set

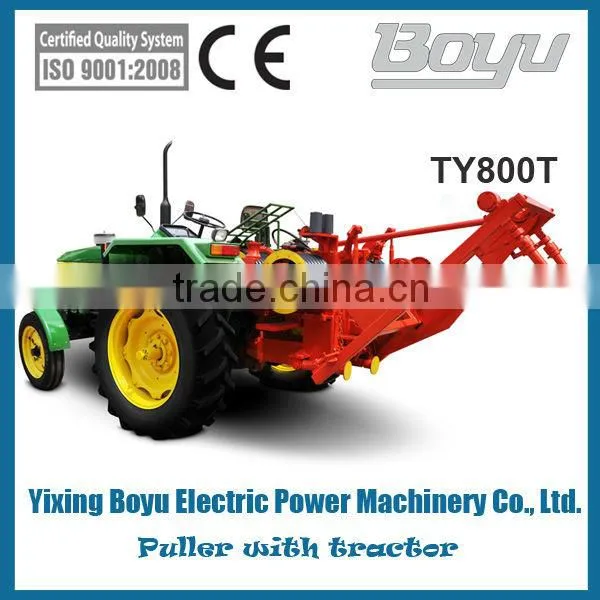

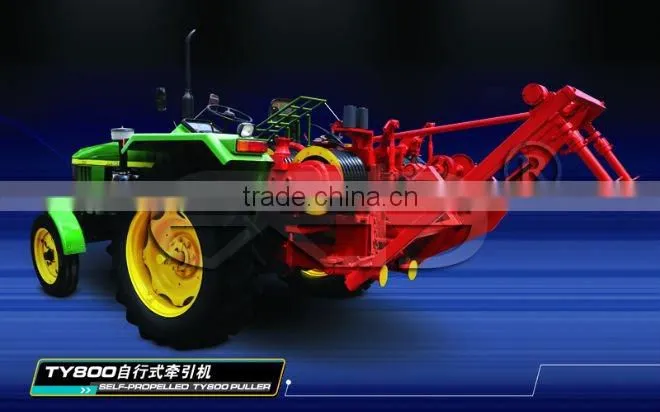

Self-propelled tractor puller
Puller wheel diameter: 450
Groove number : 8
Max diameter steel wire rope : 17
The aircraft selected John Deere tractors days JDT8002 limited production of tractors from restructuring.Mechanical transmission, simple operation,traction big,fast,easy main-tenance,construction is not only line of defense in Ligan,Tajikistan,and bear the fine line equipment , but also as long-held or tension line the ideal machine . The aircraft can be allocated based on user needs to cable installations.
Structure parameter
Puller wheel diameter: 450
Groove number :8
Max diameter of applicable steel wire rope :17
Overall dimension (length*width*height): 4050*2150*2690mm
gear |
Low gear1 |
Low gear2 |
Low gear3 |
Low gear4 |
Low gear5 |
Slow down |
| Kn | 80 | 65 | 55 | 35 | 20 | |
| m/min | 15.6 | 19 | 23 | 43 | 65 | 14 |
More pictures:
production workshop
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
....
