Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Chiller > 3 Ton Chiller
US$ 850 - 3,510
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air-Cooled, Chiller
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other, Air-Cooled, Chiller
Place of Origin
Guangdong, China
Brand Name
HICOOL
Model Number
H-AchR105S/P
Cooling Capability(kw)
11.7KW
Voltage
220v
Dimension(L*W*H)
1130X630X1620
Weight
118
Certification
CE, ROHS, UL, CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Save investment2. Excellent performance
3. Running Silently
4. Flexible configuration
5. Widely used

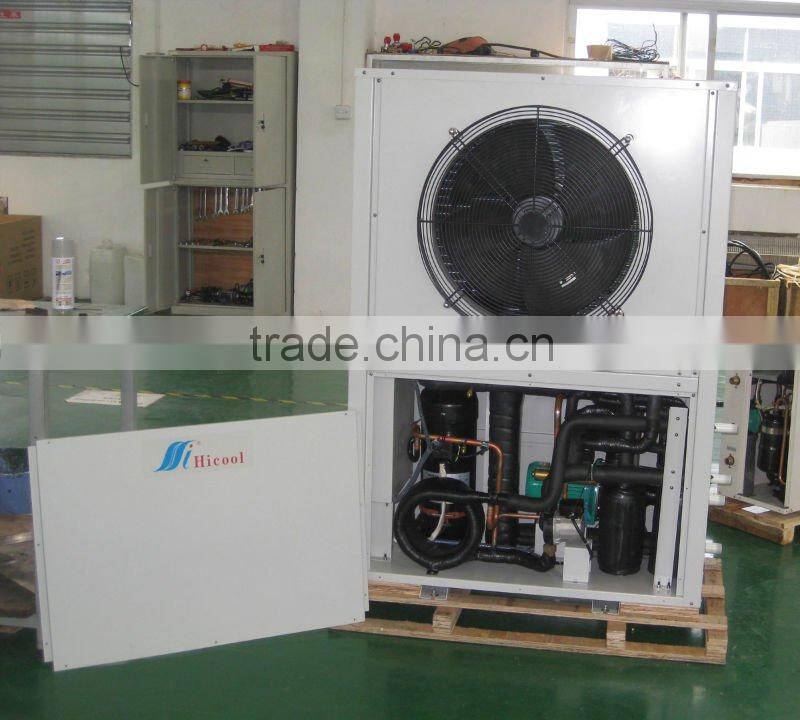

3 ton chiller
1.Air to water air conditioning system saves investment
Compared with traditional water cooled central air conditioner, air to water system does not need the whole cooling water system or special machine room, it can save building space greatly, save civil engineering expenditure, reduce the total project investment.
2.Excellent performance, running silently
The unit adopts world famous brand scroll compressor, configured with high efficiency low noise vibration absorption fan special for air conditioner, having excellent air supply performance, running smoothly & silently. The units have high/low pressure protection, freezing-proof protection, over-current protection, etc. to insure safe & reliable operation.
3.Flexible configuration
The small air cooled chiller unit can be configured to have heat recovery function, multi-purpose units can save investment, it can supply 50-60°C hot water in all weathers besides cooling in summer & heating in winter, economical and practical, perfect combination of air cooled chiller unit and heat pump.
Application range:
Especially applicable to small garden villas, office buildings, high-class apartments, etc.
Parameter
| Model | H-Ach50/P | H-Ach75/P | H-Ach105/P | H-Ach150/P | H-Ach105/P3 | ||
| Cooling Capacity | kW | 5 | 7.5 | 10.5 | 15 | 10.5 | |
| Heating Capacity | kW | 5.5 | 8 | 11 | 16 | 11 | |
| Rated Input Power | Cooling | kW | 1.7 | 2.7 | 3.8 | 5.4 | 3.8 |
| Heating | kW | 1.6 | 2.5 | 3.7 | 5.3 | 3.7 | |
| Rated Input Current | Cooling | A | 9.8 | 15.2 | 19.4 | 32.8 | 8.2 |
| Heating | A | 9.1 | 14.2 | 18.2 | 31.3 | 8 | |
| Power Supply | 220V/50Hz 1P | 380V/50Hz 3P | |||||
| Compressor Quantity | Sets | 1 | 1 | 1 | 2 | 1 | |
| Fan Quantity | Sets | 1 | 1 | 1 | 1 | 1 | |
| Refrigerant | R22 / R410A | ||||||
| Refrigerant Charge | kg | 2 | 2.5 | 3.8 | 5.6 | 3.8 | |
| Ambient Temperature | -7°C~43°C / -7°C~52°C | ||||||
| Control Manner | Central control and network control | ||||||
| Protection | High/low pressure protection, freezing-proof protection, over-current protection, water-break protection | ||||||
| Noise | dB(A) | 56 | 56 | 57 | 58 | 57 | |
| Pump | Type | Stainless Multi-state | |||||
| Water Head | m | 15 | 15 | 15 | 20 | 15 | |
| Water Flow | m3/h | 0.9 | 1.3 | 1.8 | 2.6 | 1.8 | |
| Water Gap Spec | inches | 1" | 1" | 1" | 1-1/4" | 1" | |
| Net Dimension(LxWxH) | mm | 966×840×410 | 966×840×410 | 1445×1006×460 | 1445×1006×460 | 1445×1006×460 | |
| Net Weight | kg | 90 | 100 | 118 | 127 | 118 | |
| Packing Dimension(LxWxH) | mm | 1050×950×500 | 1050×950×500 | 1620×1130×630 | 1620×1130×630 | 1620×1130×630 | |
| Gross Weight | kg | 100 | 110 | 128 | 137 | 128 | |
| Model | H-Ach125/P3 | H-Ach150/P3 | H-Ach200/P3 | H-Ach250/P3 | H-Ach300/P3 | ||
| Cooling Capacity | kW | 12.5 | 15 | 20 | 25 | 30 | |
| Heating Capacity | kW | 13 | 16 | 21 | 25.8 | 31.5 | |
| Rated Input Power | Cooling | kW | 4.5 | 5.4 | 7.2 | 8.9 | 10.7 |
| Heating | kW | 4.3 | 5.3 | 7 | 8.6 | 10.5 | |
| Rated Input Current | Cooling | A | 9.5 | 12.4 | 16.7 | 20.2 | 22.4 |
| Heating | A | 9.2 | 12 | 16.3 | 19.5 | 22 | |
| Power Supply | 380V/50Hz 3P | ||||||
| Compressor Quantity | Sets | 1 | 1 | 2 | 2 | 2 | |
| Fan Quantity | Sets | 1 | 1 | 2 | 2 | 2 | |
| Refrigerant | R22 / R410A | ||||||
| Refrigerant Charge | kg | 4.5 | 5.6 | 6.8 | 7.6 | 7.6 | |
| Ambient Temperature | -7°C~43°C / -7°C~52°C | ||||||
| Control Manner | Central control and network control | ||||||
| Protection | High/low pressure protection, freezing-proof protection, over-current protection, water-break protection | ||||||
| Noise | dB(A) | 57 | 58 | 59 | 60 | 60 | |
| Pump | Type | Stainless Multi-state | |||||
| Water Head | m | 20 | 20 | 20 | 20 | 20 | |
| Water Flow | m3/h | 2.2 | 2.6 | 3.44 | 4.3 | 5.2 | |
| Water Gap Spec | inches | 1-1/4" | 1-1/4" | 1-1/4" 1-1/2" | 1-1/4" 1-1/2" | 1-1/4" 1-1/2" | |
| Net Dimension(LxWxH) | mm | 1445×1006×460 | 1445×1006×460 | 1553×1362×483 | 1553×1362×483 | 1553×1362×483 | |
| Net Weight | kg | 120 | 127 | 210 | 222 | 230 | |
| Packing Dimension(LxWxH) | mm | 1620×1130×630 | 1620×1130×630 | 1740×1520×670 | 1740×1520×670 | 1740×1520×670 | |
| Gross Weight | kg | 130 | 137 | 233 | 245 | 265 | |
| Note: 1) Rated cooling working condition: water inlet: 12°C, water outlet: 7°C, outdoor ambient temperature: 35°C 2) Rated heating working condition: water inlet: 40°C, water outlet: 45°C, outdoor ambient temperature: 7°C | |||||||
