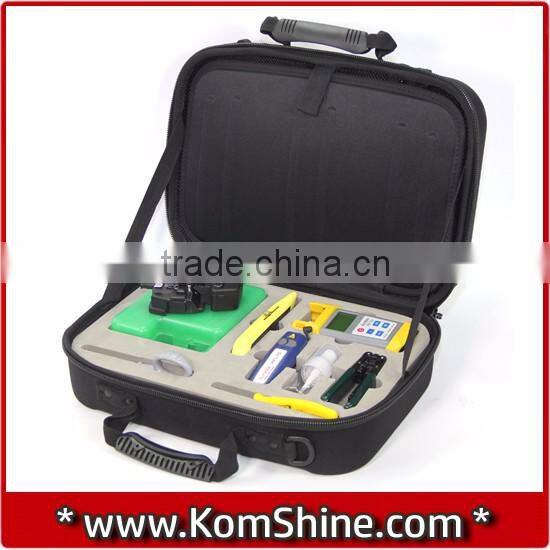

KomShine KFH-13 Basic Fiber Optic Tool Kit Glasvezel Assembly Optical Power Meter / VFL / Fiber Cleaver Ect

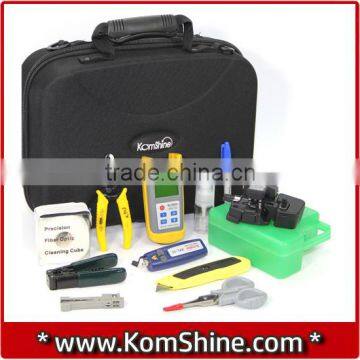

Standard Package :
| Item | Name | Qty |
| 1 | Komshine Black Fashion Carrying Bag | 1 |
| 2 | Sumitomo FC-6S Optical Fiber Cleaver-OEM | 1 |
| 3 | KPM-25M Handheld Optical Power Meter | 1 |
| 4 | Visual Fault Locator KFL-10-1mW | 1 |
| 5 | Mark Pen | 1 |
| 6 | 45-162 Fiber Optic Stripper Coaxial Cable Stripper | 1 |
| 7 | Komshine KCS-1 Fiber Optic Kevlar Shears | 1 |
| 8 | Drop Cable Stripper Fiber Optic Tool Pro'sKit CP-FB01 | 1 |
| 9 | FIS TRI-HOLE Fiber Optic Cable Jacket Stripper | 1 |
| 10 | Fiber Optical Cable Jacket Stripper | 1 |
| 11 | Knife | 1 |
| 12 | Pliers | 1 |
Product description:

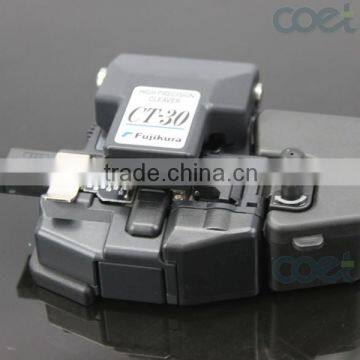

The CT-30 cleavers set the standard for portability, reliability and ease of use. The CT-30A Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the CT-30A is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications.
The 16-position blade yields 48,000 single-fiber cleaves, or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.
2.KPM-25 Optical Power Meter
KPM-25 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Features:
- Pocketsize, large easy to read LCD display, easy to use
- PC software available for testing data collection and report generation (only available for KPM-25u)
- Wave ID (auto identification & switching)(only available for KPM-25u)
- Power measurements in dBm or μW
- Long battery life with 2 x AAA alkaline
- 2.5 mm FC,SC connector input (1.25 mm adapter for LC sold separately)
| Type | KPM-25 |
| Wavelength | 800 ~1700 nm |
| Detector | InGaAs |
| Measurement Range | -70~+3 dBm |
| Uncertainty | ±5% (-10 dBm,20±30C) |
| Calibrated Wavelength | 850,1300,1310,1490,1550,1625 nm |
| Resolution | 0.01 dBm |
| Connector | FC ,SC ,LC |
| Power Supply | Alkaline Battery(2 AAA 1.5V) |
| Battery Operating Time | 240 h |
| Operating Temperatrue | -10~+60 0C |
| Storage Temperatrue | -25~+700C |
| Relative Humidity | 0~95% (non-condensing) |
| Dimension | 130mm(W)×65 mm(D)×35 mm(H) |
| Weight | 180g |

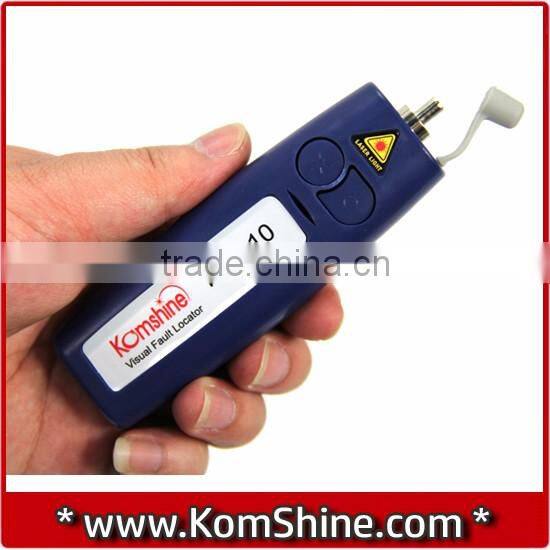

The KomShine KFL-10 Pocket Visual Fault Locator/Fiber Break Checher/Locator is a robust, cost-effective OTDR dead-zone tool. This VFL identifies fibers from end to end and locates polished connector endfaces easily. It features a universal connector that accommodates 2.5mm ferrules
Company Information
Supplying Optical Fiber Communication (OFC) products and Services to Leading Companies Worldwide.
Supplying Optical Fiber Communication (OFC) products and Services to Leading Companies Worldwide.
KomShine is an ODM (original design manufacturer)/OEM (original equipment manufacturer) providing a variety of support services related to design, manufacturing, and after-sales service for Optical Fiber Communication (OFC) products. KomShine sells products to clients who use their own brand to introduce into the marketplace.
Our client base consists of branded, global/regional-based OEM (original equipment manufacturer) companies. Our clients request KomShine to provide an ever increasing array of services to support their product development plans.
Conttact Us
KomShine Technologies Limited
1F Building#2 Huashen Technology Park,Yuhua district,Nanjing, JS, 210001, P.R. China
Phone: +86 ( 25 ) 8687 1288
Web:
Features:
- Dimensions (W x D x H): 69mm x 82mm x 41mm (2.7" x 3.2" x 1.6")
- Weight: 180g (0.4 lbs)
- Blade lifetime: 48,000 fiber cleaves (4000 12-fiber cleaves)
- Cleave angle capability: typically < 0.5°
