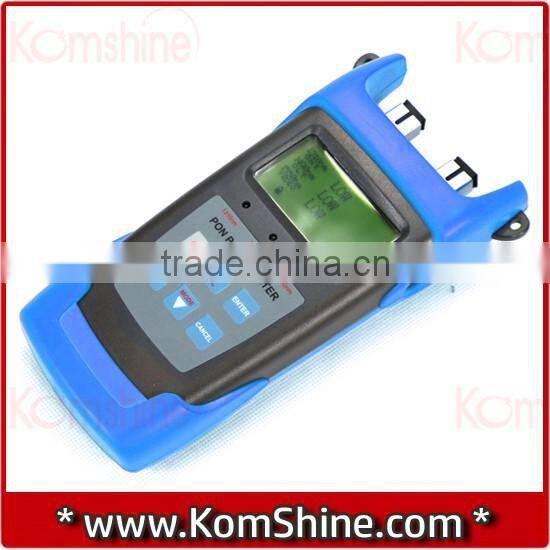

Komshine KPN-25 Digital Power Meter /VFL /Visual Fault Locator equal to EXFO
KPN-25 PON power meter is a small size, low loss and good quality handed-held optical power meter. It is designed for the testing, installation and maintenance of FTTX PON network, which can be used for APON, BPON, EPON and GPON network. FHP2P01 has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm. It can directly show the status of pass, warning or failure by threshold testing. FHP2P01 is the ideal tool for PON setting and maintenance.
Features:
- Handed-held, Easy-to-carry and use
- P/F testing and normal testing mode
- Two testing ports with " ONU " & " OLT/Video "
- Support 1310nm upstream CW/brust signal and 1490nm /1550nm downstream signal
- Design for networks of APON, BPON,EPON and GPON
- Threshold programmable
- Huge data storage capability
- USB integrated
- Built-in battery charger
- 2pcs of AAA battery as power supply
- Provided Software for communicating with upper-computer
Specifications:
| easurement range | 1310 nm: +10 ~ - 35 dBm |
| 1490 nm: +10 ~ - 50 dBm | |
| 1550 nm: +25 ~ - 45 dBm | |
| ORL | APC: 55 dB; UPC: 35 dB |
| Pass through insertion loss | < 1.5 dB |
| Accuracy | ± 0.5dB (burst signal) |
| ± 0.2dB | |
| Threshold sets | 10 |
| Data Storage | 100 |
| Connector | SC/PC (can customise other connectors) |
| Auto Power Off | No operation in 10 minutes (can be cancelled), Low battery energy |
| Battery Charge | Yes |
| Operate Time | Above 36 hours |
| Storage Temperature | -20 -- +60 °C, 90%RH |
| Operating Temperature | -10 -- +50 °C, 90%RH |
| Power Supply | 3 * AA batteries or AC/DC adapter(battery not include) |
| Size | 190mm * 90mm *40mm |
| Weight | About 450g |
