Specifications
1. 6pcs SMD5050 RGB LED
2. 12V / 24V LED RGB pixel point lights with 6 leds inside
3. SD card & Ledwalker & DMX
4. CE & RoHS Certification
5. 2 years

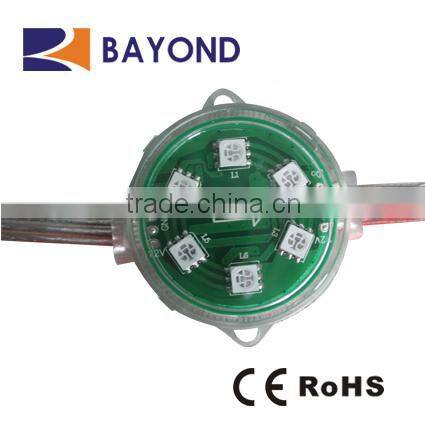

SMD5050 RGB color IP67 pixel piont light led
SMD5050 RGB color IP67 pixel piont light led
RGB Pixels are digitally-controllable lights you can set to any color, or animate

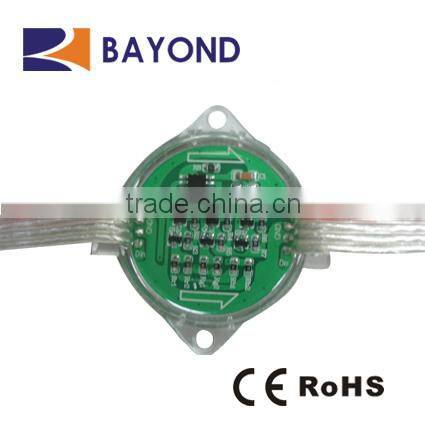

Each RGB camaleon led LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 35mm drill hole in any material up to 1.5mm/0.06" thick
They're typically used to make outdoor signs. Compared to our other LED dots

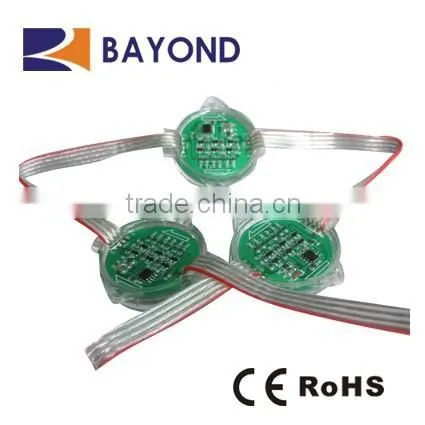

The pixels are connected by a 3-conductor cable. Blue is +12V / 24V, Yellow is GND, Green is DATA
Data is shifted down from one pixel to the next so that you can easily
connect to the strand or attach more onto the end.
feature:
I SD controller
l Programable by Software
l Individually Control
l Conformal Coating,PVC glue protection
l IP66, Water-proof protection
l Easy installation (punching 35mm hole on metal panel)
l 12V / 24V 35mm LED RGB pixel point lights with 6 leds inside .
Specification:
Model NO. |
BY-5050ICRGB |
IC chip |
UCS1903 |
Power Consumption |
0.72W |
Work Voltage |
DC 12V / 24V |
Beam Angle |
≥120 |
LED Quantity |
6 PCS SMD 5050 |
Color |
Full color (ICRGB) |
Dimension |
35*40*43mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
1. Packing: 20 pcs/ string. 80 pcs/ anti-static bag. 640 pcs/ carton. GW: 17KG.
2. Shipping: Transporation include DHL. Fedex. UPS. TNT.EMS to send the order to your hands
1. For all your inquires about us or our products, we will reply you in detail within 24 hour.
2. We own well-tranied and professional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM or ODM services. Can print clients'logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Bayond Light Co., Ltd manufacture LED modul, LED pixel, indoor and outdoor lighting for led module , LED
Advertising Signage Illumination, as we believe it’s better to do a few things well. With six production lines boasting SMT machines from Japan, we make up to 150,000 units monthly—all of which are CE- and RoHS- marked. Our lead times are as fast as five days. Orders are typically filled in 10-15 days.
