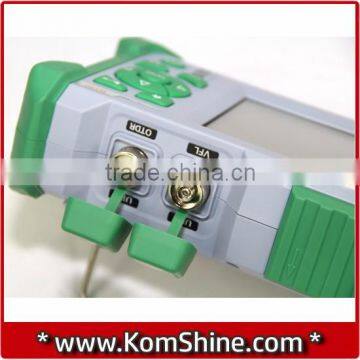

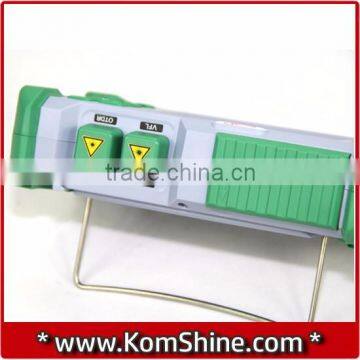

KomShine QX50 Optical Time Domain Reflector

Name: KomShine QX50 Optical Time Domain Reflector
Brand: KomShine
Availability: InStock

FOB Price

US$ 1,000 - 2,500 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	KomShine
Model Number	QX50

Product Description

KomShine QX50 All-Fiber OTDR SM, MM, SM&MM, PON OTDR

With a short <3m dead zone the QX50 is designed for FTTx application. It can test the length, fiber loss connector loss and other physical characteristics of fiber. it can locate events on fiber cables precisely. It is really the tool of choice for FTTx application installation and maintenance as well as for fiber R&D and producing testing. QX50 rugged design, lightweight and easy operation, as well as the low-reflection LCD and more than 10 hours battery life make it be perfect in filed testing. Meanwhile, Its two USB & SD interfaces help to store and transfer traces easily and conveniently. ..

Product Description

Features

Applicable fiber: Networks with PLC Splitters
<3m extra-short event dead zon
Wavelength: 1310/1550nm+1490nm
Up to 32/30/28dB High Dynamic Range
Distance Range: 4,8,16,32,64,128,256km
Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
640×480, 6.5 inch TFT-LCD (touch screen)
USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
Memory capacity >800 traces
Built-in lithium battery with high capacity for over 8 hours of operating life
Display: Color LCD
One year Warranty

Specifications:

Model	=	QX50-P1
Wavelength(nm)	=	1310/1550+1490
Dynamic range(dB)	=	32/30/28
Pulse width (ns)	=	5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Display		6.5 inch TFT LCD touch screen
Event blind zone (m)	=	3
Attenuation blind zone (m)	=	13
Linearity (dB/dB)	=	±0.05 dB/ dB
Loss threshold (dB)	=	0.05
Loss resolution ratio (dB)	=	0.01
Sampling resolution ratio (m)	=	0.125 to 8
Sampling point	=	32k
Distance uncertainty (m)	=	±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km)	=	0.3 to180
Memory capacity of trace	=	SD Card (4G), > 10000 pieces
Duration of measurement	=	Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Optical interface	=	FC/UPC, SC/UPC
Data interface	=	USB interface, SD card interface
Visual Fault Locator	=	No available
Power supply	=	Lithium battery; continuing working duration ≥ 8 hours
Warranty period	=	12 months

Standard Package:

QX50 OTDR

FC+SC+LC UPC Connectors

SM Fiber Optic Patch Cord FC-SC 1M

Testing & Calibration Report

AC/DC adapter

Quality certification

Trace analyzing software(CD)

Internal Battery

User Manual

Carrying Case
