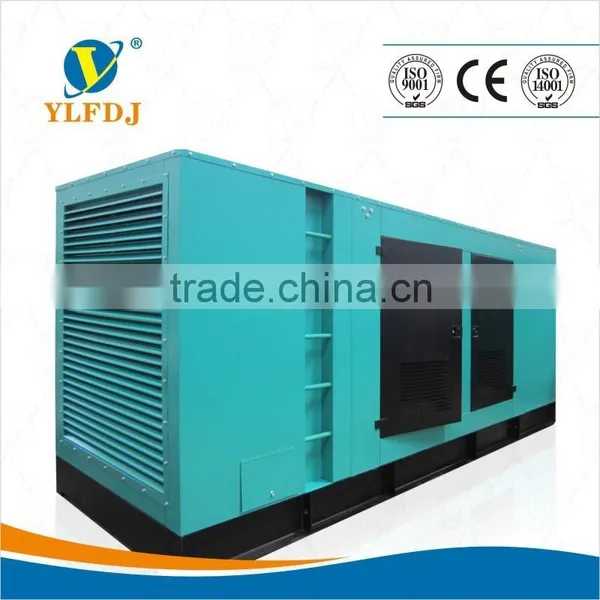

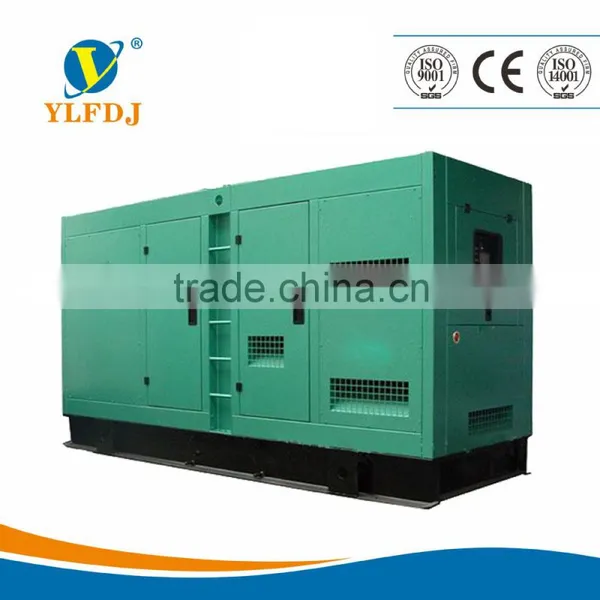

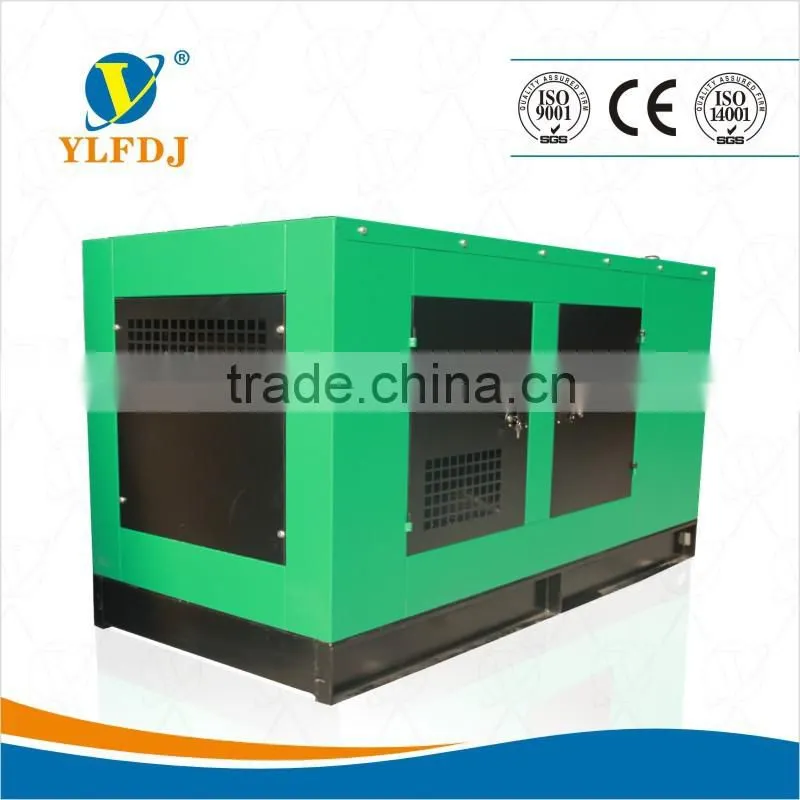

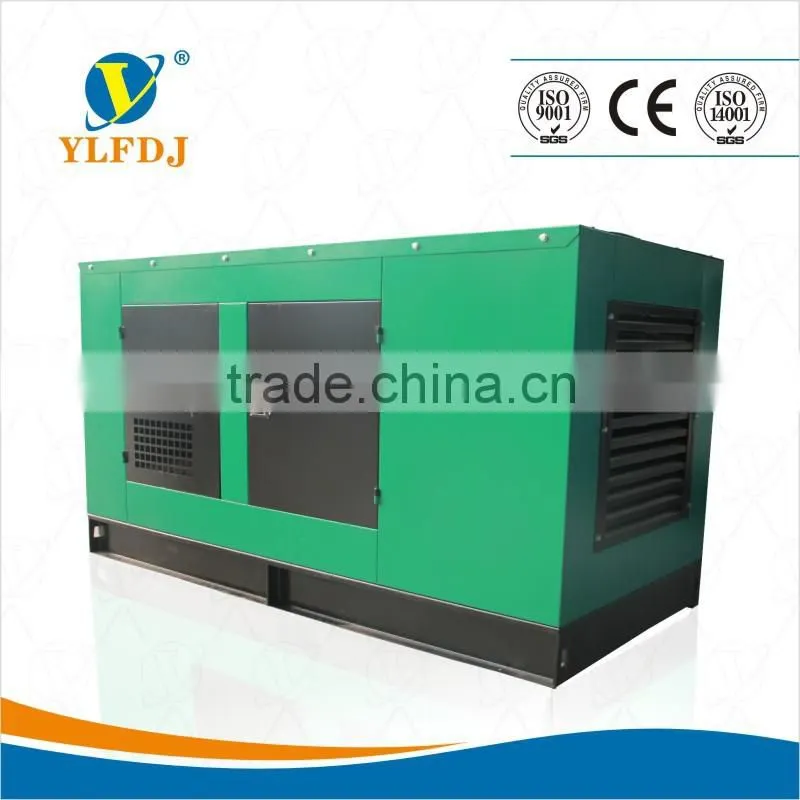

Factory outlet 450KVA (360kw) silent diesel generator with Perkins engine.
- 500 Set / Sets per Month
- GUANGZHOU SHENZHEN
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YLFDJ | Model Number: | 2506A-E15TAG1 |
Output Type: | AC Three Phase | Speed: | 1500rpm/1800rpm | Frequency: | 50hz/60hz |
Rated Power: | 360kw/450kva | Rated Voltage: | 400/230V/110V | Rated Current: | 648A |
Product Description
Genset Model | YLGF-360 | |||||
Genset | Power Capacity (kw/kva) | 360/450 | ||||
Rated Voltage (V) | 400/230/110 | |||||
Rated Current (A) | 648 | |||||
Rated Frequency (Hz) | 50/60 | |||||
Rated Speed (rpm) | 1500/1800 | |||||
Power Factor / Phase | Cos 0.8 Lagging, 3 phase | |||||
Cooling System | Closed cycle water-cooled with fan,water tank | |||||
Overall Dimension (L×W×H) (mm) | 4000x1200x 2100 | |||||
Gross Weight (kg) | 3600 | |||||
Engine Brand | Perkins | |||||
Diesel Engine | Engine Model | 2506A-E15TAG1 | ||||
Prime Power (kw) | 360/450 | |||||
Engine Structure | 6Cylinder,Vertical,Inline,4 stroke | |||||
Bore×Stroke (mm) | 105x127 | |||||
Displacement (L) | 3.3 | |||||
Compression Ratio | 17.25:1 | |||||
Lube Capacity (L) | 7.9 | |||||
Fuel System | PT type fuel injection pump | |||||
Fuel Consumption (g/kw.h) | 216 | |||||
Lube Consumption (g/kw.h) | 2 | |||||
Rotating Speed (rpm) | 1500/1800 | |||||
Speed Governing | electric speed governor | |||||
Starting Method | By 12V batteries | |||||
Alternator Brand | YLFDJ | |||||
Alternator | Alternator Model | YLW-360 | ||||
Insulation Class | Class H | |||||
Steady Voltage Regulation | ≤ +/- 0.5% | |||||
Instant Voltage Ragulation | -15%~+20% | |||||
Voltage Fluctuation Rate | ≤ +/- 0.5% | |||||
Steady Frequency Regulation | ≤ +/- 0.5% | |||||
Instant Frequency Ragulation | -7%~+10% | |||||
Phase/Connection Type | 3 phase 4 wire/Y type | |||||
Controller | Controller Brand | ZZ6110 |
Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is one set generator,EX factory price.For full container order our price is FOB price.
Q: Is it ok to make customers’ own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: 12months or1000 hours basis on the earlier one.
Q: What is the delivery time?
A: 15 work days after receiving your T/T deposit or L/C.
Q: What is your packing way ?
A: Factory standard packing is plastic film, for other packing way should recalculate the packing cost.
