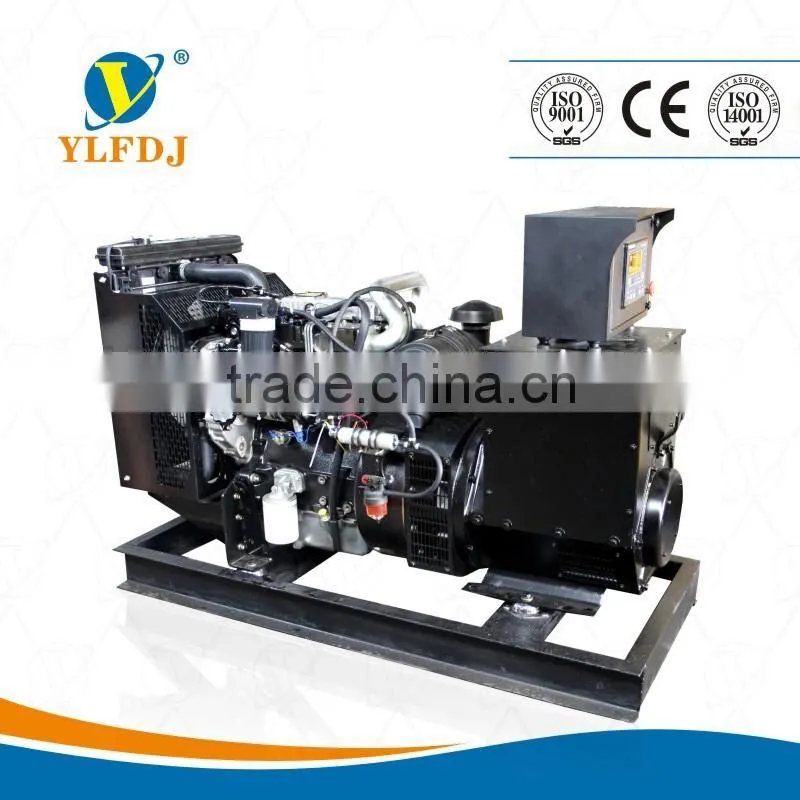

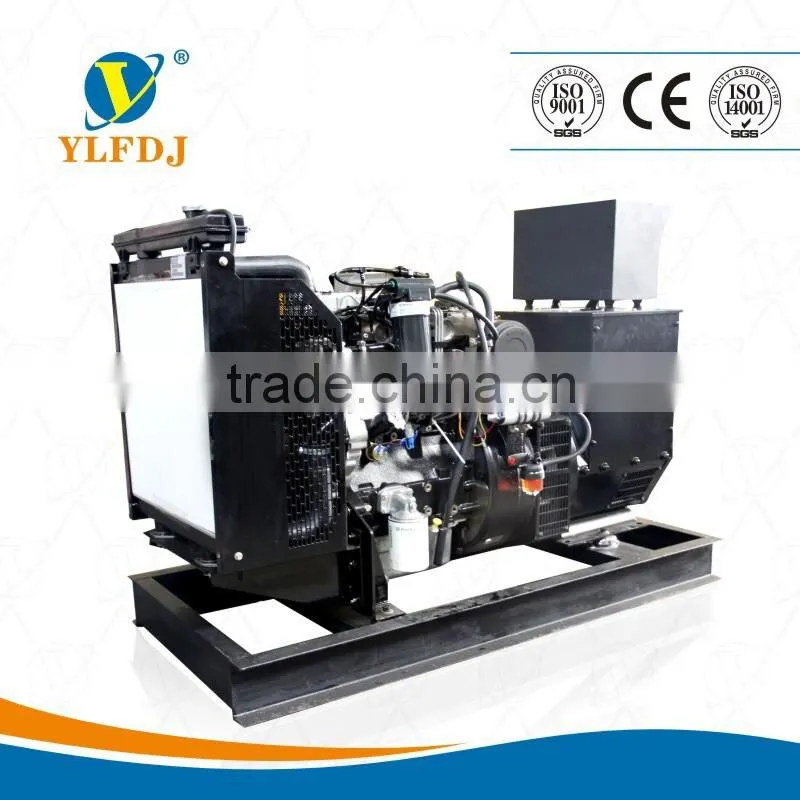

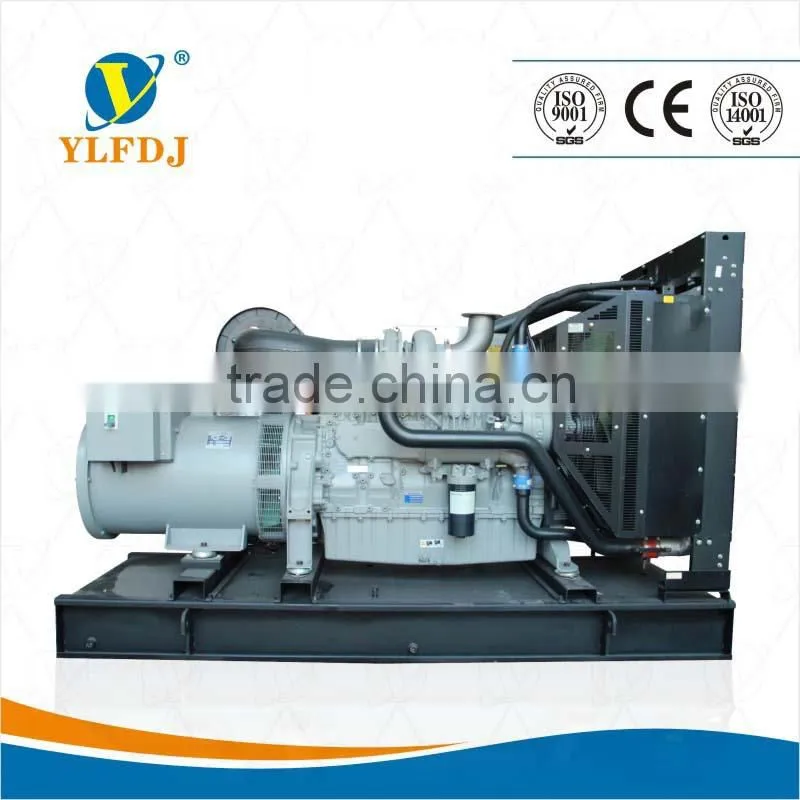

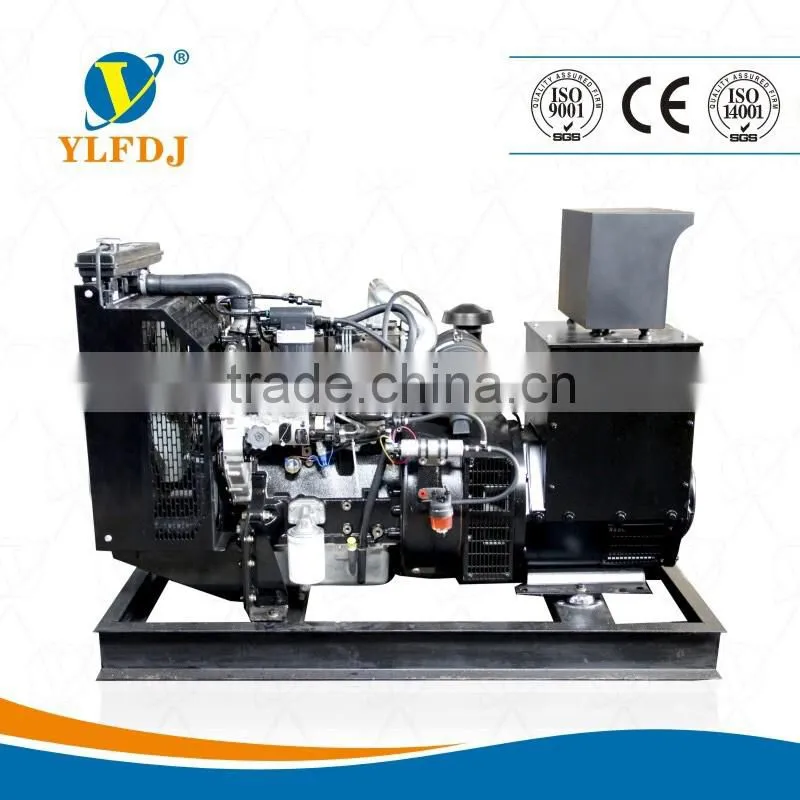

80KVA (64kw) Diesel Generator Set With Perkins Engine
US$ 9,864 - 11,344
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YLFDJ
Model Number:
1104C-44TAG1
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100KVA (80kw) Diesel Generator Set (Diesel Generator With Perkins Engine)US$ 12,707 - 14,613MOQ: 1 Set -
300kva Diesel Generator for Hotel Use With Cummins EngineUS$ 21,009 - 24,594MOQ: 1 Set
-
50kva Breeding Industry Generator Diesel With Parkins EngineUS$ 44,836 - 51,561MOQ: 1 Set
-
Mining Industry Use 625kva /500kw Diesel Generator Price Powered by Cummins EngineUS$ 44,023 - 52,828MOQ: 1 Set
-
Silent Generator 30kva/24KW With Diesel EngineUS$ 2,614 - 2,614MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
YLFDJ
Model Number
1104C-44TAG1
Output Type
AC Three Phase
Speed
1500rpm/1800rpm
Frequency
50hz/60hz
Rated Power
64kw/80kva
Rated Voltage
400/230V/110V
Rated Current
115.2A
| Genset Model | YLGF-64 | |||||
| Genset | Power Capacity (kw/kva) | 64/80 | ||||
| Rated Voltage (V) | 400/230/110 | |||||
| Rated Current (A) | 115.2 | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| Rated Speed (rpm) | 1500/1800 | |||||
| Power Factor / Phase | Cos 0.8 Lagging, 3 phase | |||||
| Cooling System | Closed cycle water-cooled with fan,water tank | |||||
| Overall Dimension (L×W×H) (mm) | 2150x730x 1600 | |||||
| Gross Weight (kg) | 1100 | |||||
| Engine Brand | Perkins | |||||
|
Diesel Engine |
Engine Model | 1104C-44TAG1 | ||||
| Prime Power (kw) | 64/79 | |||||
| Engine Structure | 4Cylinder,Vertical,Inline,4 stroke | |||||
| Bore×Stroke (mm) | 105x127 | |||||
| Displacement (L) | 4.41 | |||||
| Compression Ratio | 18.2:1 | |||||
| Lube Capacity (L) | 8.5 | |||||
| Fuel System | PT type fuel injection pump | |||||
| Fuel Consumption (g/kw.h) | 232 | |||||
| Lube Consumption (g/kw.h) | 2.2 | |||||
| Rotating Speed (rpm) | 1500/1800 | |||||
| Speed Governing | electric speed governor | |||||
| Starting Method | By 12V batteries | |||||
| Alternator Brand | YLFDJ | |||||
| Alternator | Alternator Model | YLW-64 | ||||
| Insulation Class | Class H | |||||
| Steady Voltage Regulation | ≤ +/- 0.5% | |||||
| Instant Voltage Ragulation | -15%~+20% | |||||
| Voltage Fluctuation Rate | ≤ +/- 0.5% | |||||
| Steady Frequency Regulation | ≤ +/- 0.5% | |||||
| Instant Frequency Ragulation | -7%~+10% | |||||
| Phase/Connection Type | 3 phase 4 wire/Y type | |||||
| Controller | Controller Brand | ZZ6110 | ||||
Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
