Standalone access controller RFID

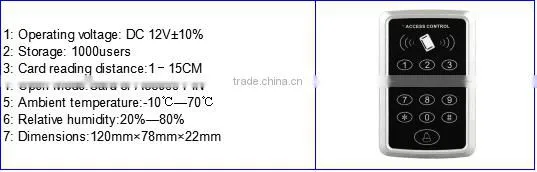

1,Technical parameters:
NO |
ITEM |
Parameter |
1 |
Operating voltage |
DC 12V±10% |
2 |
Operating current |
< 100mA |
3 |
Dimensions |
120mm×78mm×22mm |
4 |
Weight |
110g |
5 |
Ambient temperature |
-10°C—70°C |
6 |
Relative humidity |
20%—80% |
7 |
Storage |
1000 users |
8 |
Card type (alternative) |
EM(ID) card(IC card for option) |
9 |
Card reading distance |
1-15CM |
2,Factory default settings:
Programming Password |
123456 |
Open Mode |
Card or Access PIN |
Output signal time |
5secs |
3,LED and buzzer indicates:
Two-color LED: red and green:
NO |
Led State |
Access control status |
1 |
light red once every 1 sec (Slow flash) |
Holding state |
2 |
light red, N.O. |
Programming state |
3 |
light green within Open time |
Unlocking state |
4 |
light green once every 0.3sec (Fast flash) |
Pending further action |
4,Built-in buzzer:
Description |
Status |
1 short buzz |
Valid input |
3 short buzz |
Invalid input |
1 long buzz |
Program success |
Continuous long buzz |
Restoring factory programming passwords |

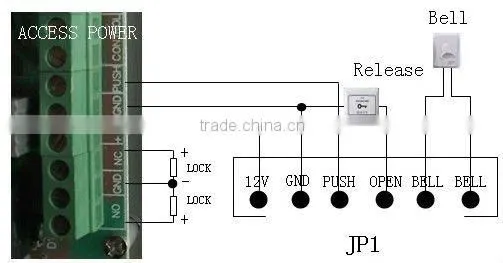

5,Installing wiring diagram: JP1
PIN |
Color |
Function |
+12V |
Red |
Power+ |
GND |
Black |
Power- |
PUSH |
BLUE |
Low level output |
OPEN |
Yellow |
Door Release |
BELL |
Grey |
BELL |
BELL |
White |
BELL |

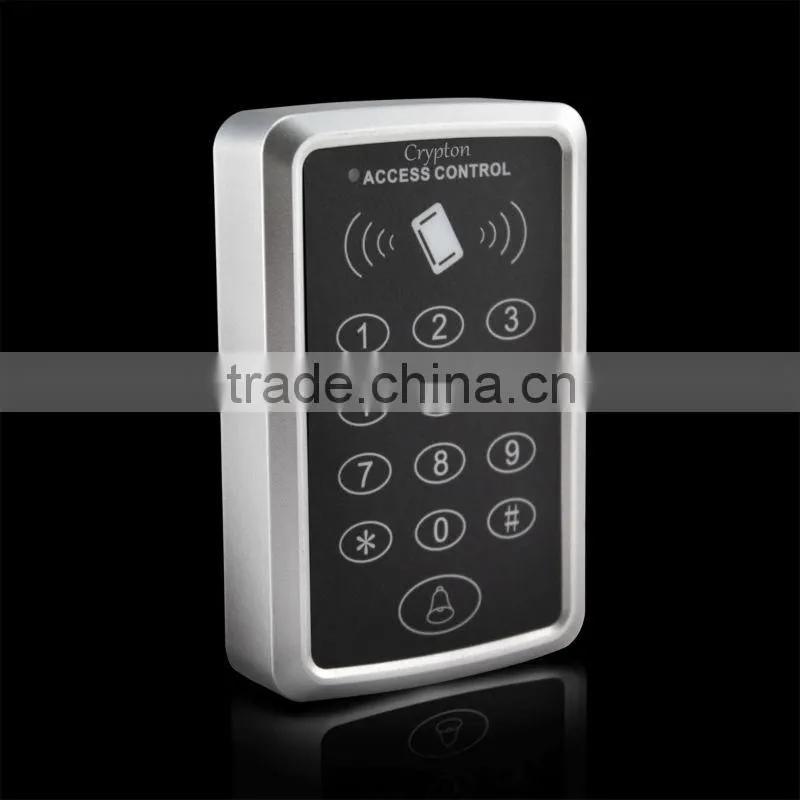

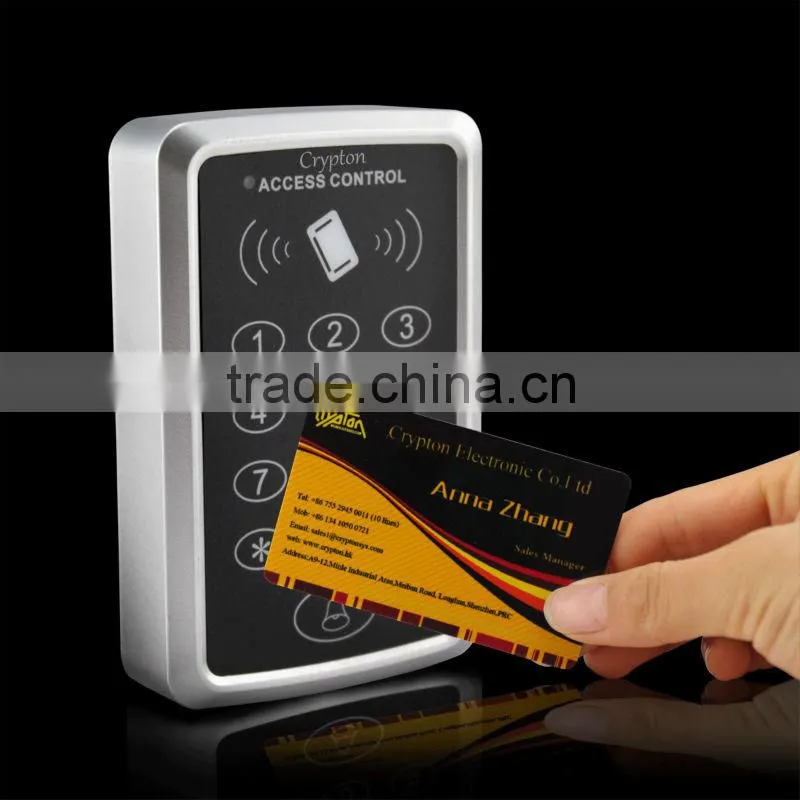

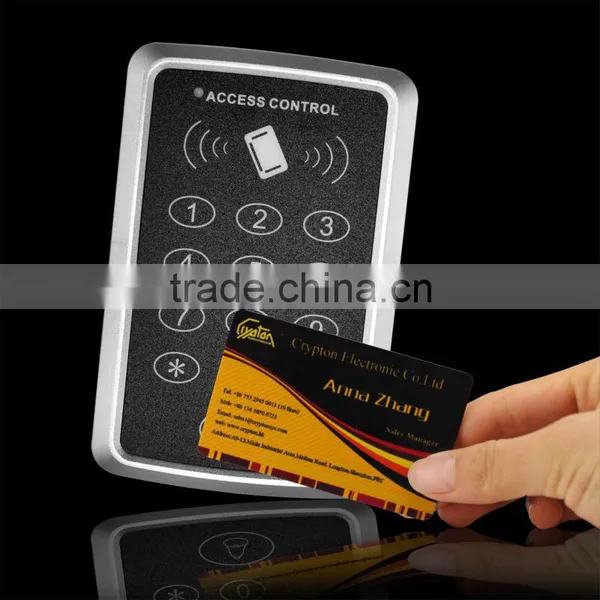

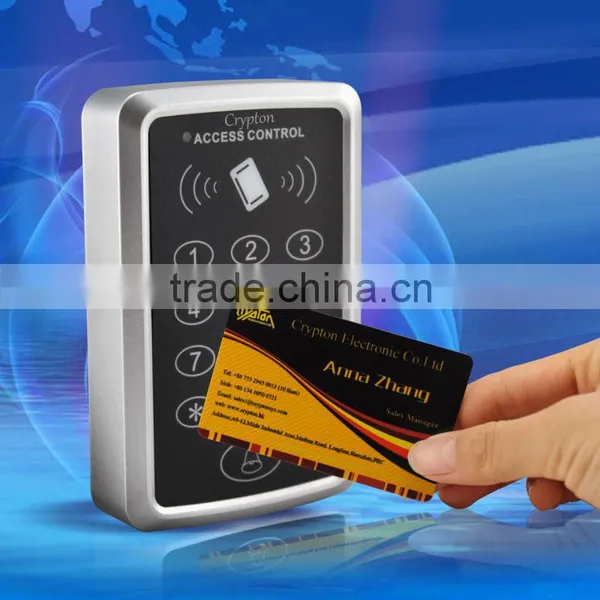

Pictures for SA-0109 standalone access controller

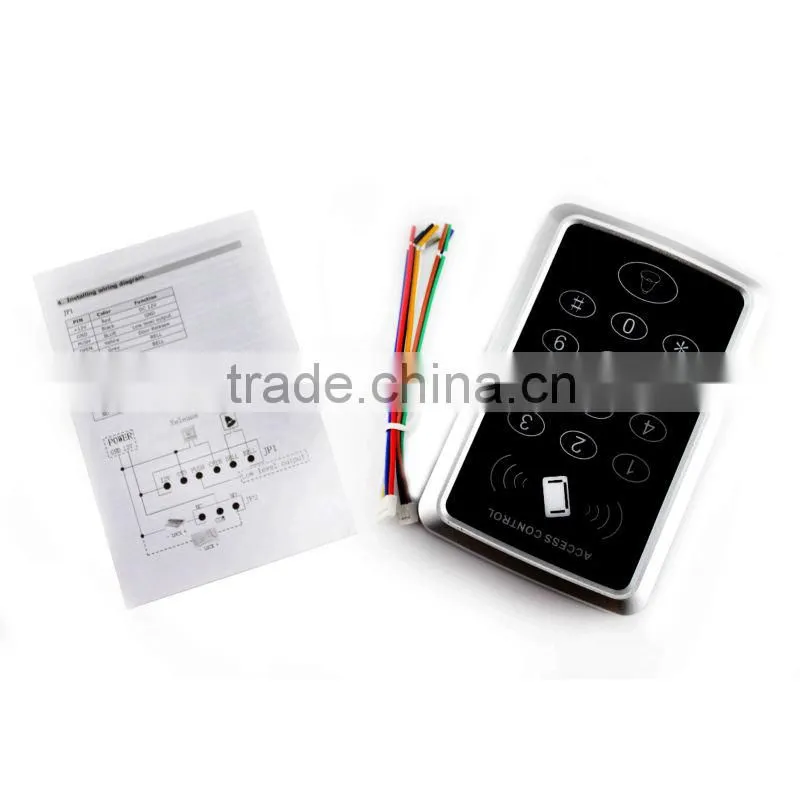

A complete kits for SA-0109 standalone keypad:
