Touch-screen Metal RFID Standalone Door Controller

Touch-screen Metal RFID Standalone Door Controller thumbnail-1
Touch-screen Metal RFID Standalone Door Controller thumbnail-2
Touch-screen Metal RFID Standalone Door Controller thumbnail-3
Touch-screen Metal RFID Standalone Door Controller thumbnail-4
Touch-screen Metal RFID Standalone Door Controller thumbnail-5
Touch-screen Metal RFID Standalone Door Controller thumbnail-6
Touch-screen Metal RFID Standalone Door Controller photo-1
Touch-screen Metal RFID Standalone Door Controller photo-2
Touch-screen Metal RFID Standalone Door Controller photo-3
Touch-screen Metal RFID Standalone Door Controller photo-4
Touch-screen Metal RFID Standalone Door Controller photo-5
Touch-screen Metal RFID Standalone Door Controller photo-6
US$ 19.8 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Crypton Touch-screen Metal RFID standalone door controller
Model Number:
SA-TS23 Touch-screen Metal RFID standalone door controller
Contact Supplier Request Quote Chat Now
Shenzhen Crypton Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hk or shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Crypton Touch-screen Metal RFID standalone door controller
Model Number SA-TS23 Touch-screen Metal RFID standalone door controller


Touch-screen Metal RFID standalone door controller

Digital backlit access control keypad Anti-vandal touch screen controller

Touch-screen Metal RFID standalone door controller


Product Description



Product presentation



Metal case, anti-vandal

Digital backlit keypad

Multi-function standalone access controller and reader, can

be used as WG26 reader

Capacity: 2000 cards / codes

Three accesses: card, pin, card + pin

WG interface: WG26 Input / output Doorbell support and interface: button and circuit segregate,

any doorbell can be connected





Specifications



Card type:EM

Static electricity: ≤30mA

Working voltage: DC12V±10%

Ambient temperature: -45 ℃ ~ 60 ℃

Read Range:5-8cm

Electric lock output: ≤3A

Humidity: 10% to 90%

Short-circuit Protect: ≤100μS

Door Opening Time:0-99s(Adjustable)

Dimensions: 110 *75* 25mm



Installation

l Remove the back cover from the keypad using the supplied special screw driver

l Drill 2 holes on the wall for the Self tapping screws and I hole for the cable

l Put the supplied rubber bungs to into the two holes

l Fix the back cover firmly on the wall with 2 Self tapping screws

l Thread the cable through the cable hole

      Attach the keypad to the back cover.





Wiring



Colour

Function

Description

Pink

BELL_A

Doorbell button one end

Pale blue

BELL_B

Doorbell button to the other end

Green

D0

WG output D0

White

D1

WG output D1

Grey

ALARM

Alarm negative(alarm positive connected 12 V+)

Yellow

OPEN

Exit button one end(the other end connected GND)

Brown

D_IN

Magnetic switch one end(the other end connected GND)

Red

12V+

12V + DC Regulated Power Input

Black

GND

12V - DC Regulated Power Input

Blue

NO

Relay normally-on end(Connect positive electric lock "-")

Purple

COM

Relay Public end, connect GND

Orange

NC

Relay Closed end(connect negative electric lock "-")







Touch-screen Metal RFID standalone door controller

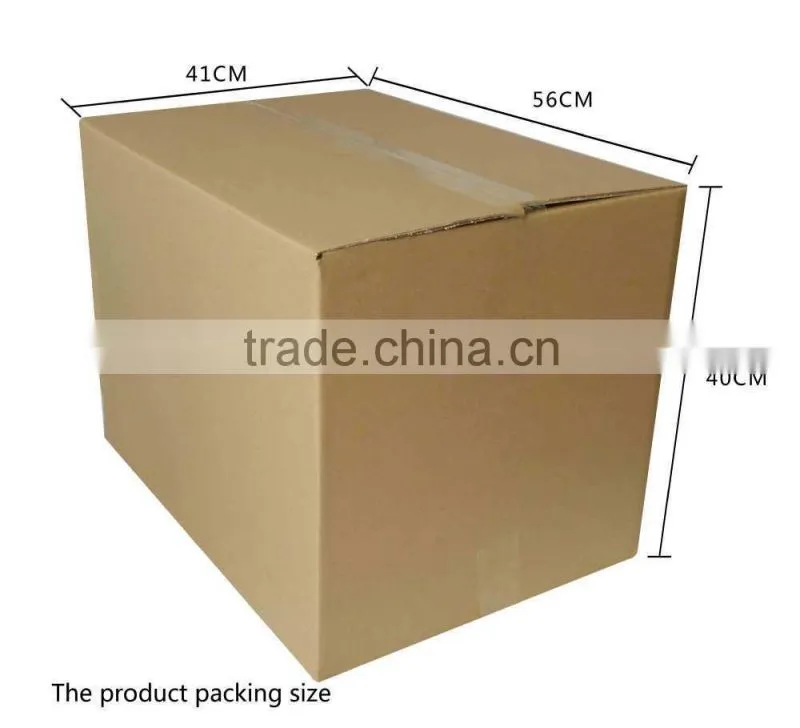

Packaging & Shipping



Touch-screen Metal RFID standalone door controllerTouch-screen Metal RFID standalone door controller





Our Services





Our Services



1.Warranty

From the day of purchasing Crypton electronic products
(in formal purchase invoice date, hereinafter referred to as: the purchasing date) ,

Crypton electronic offer you free warranty
(ACB series control board,UHF long range card reader, within 2year quality guarantee.RFID card reader,
exit push button,magnetic lock,bolt lock, strike lock, turnstile gate series
standalone access controller ,access power supply etc warranty period is 1 years,

There will be labour and parts cost charged if the warranty period is expired;
If the product need to be renovated, there will be labour cost and handling cost in cured



2.Hot line services

If you have any product related technical problems when using Crypton electronic products,
you are welcome to call our hot line at +86 755 29450011,
Crypton electronic engineers and product designers will answer all the related questions.

At the same time, you also can go to our official web site
which provides the common problem settlement solutions.

We will regularly put those customer common problems settlement solutions
into the website for customer reference,
there are general technical and non-technical problems will be included.



3.Quick response

In the product warranty period, if there is the equipment malfunction, since the official announcement day,
Crypton electronic will be response to the customer request within 2hours at working days,
and will solve the problem within two working days.

If there is any special reason the product cannot be repaired, we will contact you to find out the solutions,
if the products being out of the warranty period, there will be related service charges.

Note: in the service process,
because other accident causes the products cannot be according to the commitment as mentioned above,
Crypton will contact you to find out the better solution..



4.After-sales service confirmation procedures

Please prepare the corresponding purchase invoice, warranty certificate.

If you can't provide above mentioned documents,
the product of free warranty period will be calculated 30 days after ex-factory date.

If you cannot provide any warranty certificate,
Crypton electronic will check the the production date for provide better warranty service.

After maintenance service, the products will continue to enjoy the original warranty.

If the date of after maintenance to free warranty period is less than three months,
Crypton electronic will extend the free warranty up to three months.

At that time, you need to provide effective maintenance record. Please see this article below.



Company Information



Why Choose Crypton & S4A?

Crypton obtained more than 9years experience in Door access control systems and solutions,
we did many project in local market,

if you need diagram or wiring, just email or call us back at anytime.
we will send relevant according to your request.

In shenzhen ,we have 2office, as :Crypton Electronic Co.Ltd
                                  S4A Industrial Co.Limited

Also we have 1branch office in Doha-Qatar,
also selling door access control systems and provide technicial support.
if you need local installation, we are happy to serve you..



Products we could provide are below:

Access Control Board
(for single door, double door and four door support TCP/IP and web based)

Standalone access control
(Easy to install and program without software)

Fingerprint access control&time attendance
(Easy to install and program with software and keep record)

UHF long range card reader
(5M or 15M or 20M are avaliable in the stock list)
Facial access control terminals
(Face to open the door or do record)

Electromagnetic lock/Bolt lock/Strike lock

Exit push button/Access Power supply/RFID cards

RFID card reader
(to work with access control board)

S4A 6868 Facial Recognition Door Lock

We are here waiting for your inquiries! My friend



FAQ



Contruction wiring and Standard

1.The line of electric lock to controller, it’s recommended to use two-wire power line, the cross-sectional

2.area of 1.0 mm2 or more. If over 50 meters, it’s considered to use more thick line or multiple parallel,

3.the longest no more than 100 meters.

The line of door sensor to controller, it’s recommended to use two-wire power line,
the cross-sectional area of 0.22 mm2 or more If no need to know door open/close status online,
or door long-time not close alarming, either illegal intrusion alarming, interlock function, etc.,
the door sensor can be without wiring.



4.TCP/IP communication line: It’s the same with computer network wiring, controller connecting to switch or HUB

with ordinary network cable, distance less than 100meters. The longer distance, the higher quality requirement of cable.

5. 220V AC power cable: three-wire power supply, the cross-sectional area 1.0mm2 or more.

It’s required that power supply must be grounded to prevent from power interference.

 Touch-screen Metal RFID standalone door controllerTouch-screen Metal RFID standalone door controllerTouch-screen Metal RFID standalone door controllerTouch-screen Metal RFID standalone door controller

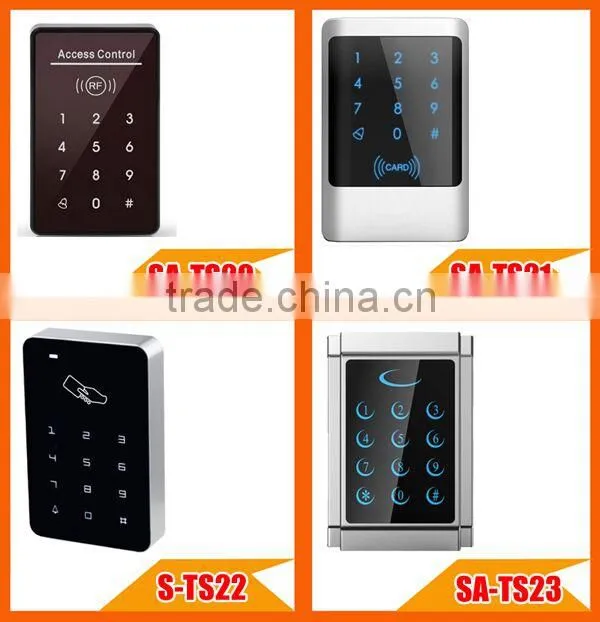

This is new released items in Nov,2015 SA-TS22 and SA-TS23, if you want to get more clear photos without waterproof mark

and price, pls email back or call us NOW!



Touch-screen Metal RFID standalone door controller



this is Sales office team

Touch-screen Metal RFID standalone door controller



Cooperate clients from Uganda,Congo,Pakistan,etc

Touch-screen Metal RFID standalone door controller
