GTP-F1 GPRS Fingerprint Guard Tour System

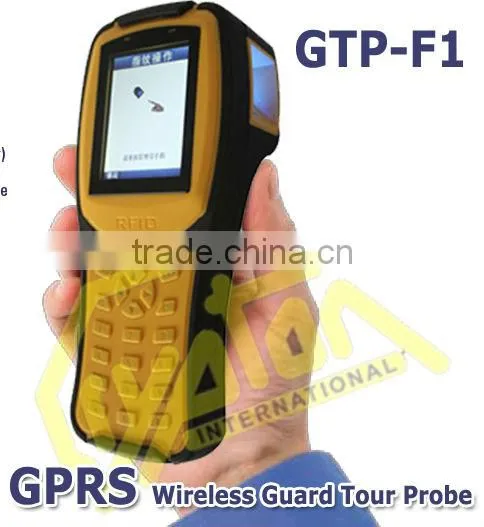

GTP-F1 GPRS Real-time Fingerprint Guard Tour System
How to use ?
Take the GTP-F1 fingerprint patrol device, and scan your fingerprint to login as the current user. Walk according to the patrol route given, use the device to read the spot card information by the device. If the current spot needs the authentication confirm, you should scan your fingerprint or ID card again.
If the fingerprint or ID card is belongs to current user, you can edit the check items now. Otherwise you won’t get the permission to edit or update the data. After input all the data and press ok button, system will launch the GPRS model to upload the data to server.

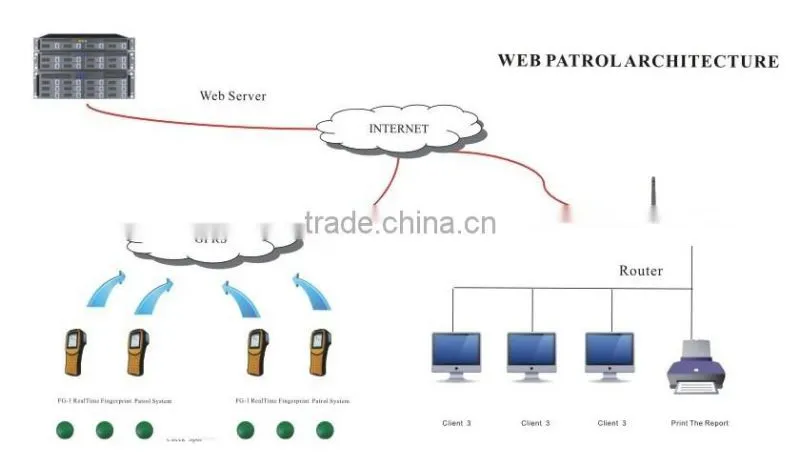

Then the patrol system software can deal with the data and display or print the result of the report. When the exceptions occurred during the patrol, warning will be shown in time.
Reader Type |
Fingerprint Reader |
Casing |
Engineering Plastic, Bi-color injection molding, drop-proof |
Card Reader Type |
Supports TI-Tagit, ISO15693,ISO14443A/B/C, etc |
Support languages |
English |
Display Monitor |
TFT2.4” HD True Colour(240*320); |
Notification |
Customized event parameters input nofitication (maximum,minimum) |
Data Accuracy |
Data is stored until 4 digits after decimal point |
Units Measurement |
Supports up to 250 units of measurement |
Batter Display |
Battery display in multi-level |
Data Browsing |
Browses fingerprint, data, event, etc directly |
Warning Function |
Low storage space warning , low battery warning |
Permission |
Fingerprint permission management |
Input method |
Standard Keyboard |
Capacity |
Stores up to 10000 data entries |
Data Security |
Stores data up to 30 years after power unplugged |
Communication |
GPRS, patrolling data send in time |
Technical Specification:
Card Reader Type |
EM,TI Full-featured proximity card |
Total Data Stored |
10000 |
Numbers of Single Event |
15 (Event Size is 28 bytes) |
Maximum Digits of Data Input |
8 digits before decimal point and 4 digits after decimal point |
Logical Selections |
5 |
Units Measurement |
250 |
Card Reader Responce Time |
<0.1 S |
Display Monitor |
TFT 2.4' 240*320 HD True Color |
Baud rate |
115200 |
Data Tramission |
Auto data transmission |
Communication |
USB/GPRS |
Operating Temperature |
-40 °C ~ +70 °C |
Size |
160*68*44 MM |
....
