magnetic door access control system
|
Packing Details
| |
| Unit Size | 160mm x106mm |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mmx228mmx65mm |
| Accessories | User Manual, warranty card |
|
Parameter
| |
| Conventional Function | offline operation; |
| real time supervision; | |
| remote unlocking;multi-user supervision; | |
| report form;report can be exported to excel file; | |
| card+password unlocking;alarm for long time unclosing; | |
| alarm for invalid card swiping;alarm for illegal break in; | |
| unlocking at definite time | |
| Professional function |
for professional users such as bank,cash house,telecom station, power supply station,prison and plice station |
| all-in-one-card management system |
nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
|
Specification
| |
| Communication | TCP/IP+Web standalone |
| English Software supportable database: | SQL |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader |
Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) |
| Quantity of Readers | 4 Pcs |
| Door Controlled | 2 |
| Description |
Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°-70° |
| Operation Humidity | 10-90 % RH ,No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | Depand on network range |
| Collocations |
PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
|
Alarm for long time door open, ilegal break in, intimidate |
Yes |
| Fire and alarm linkage |
If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware If connected with strengthened expansion board, then is able to Security alarm. |
|

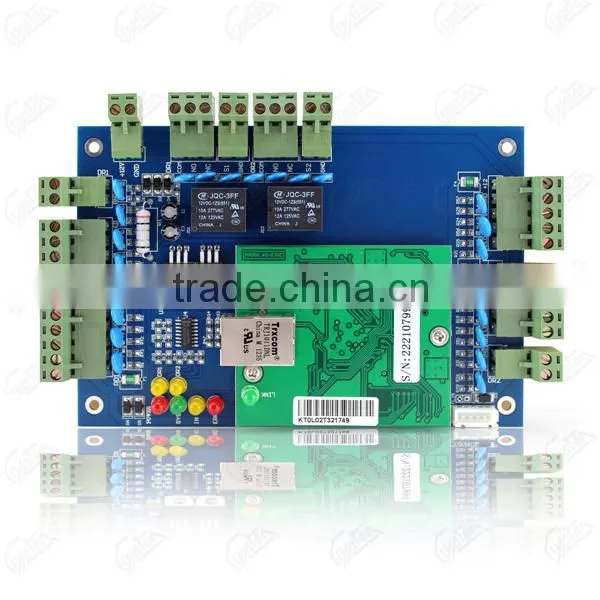

Picture for ACB-002
| |
| | |
|

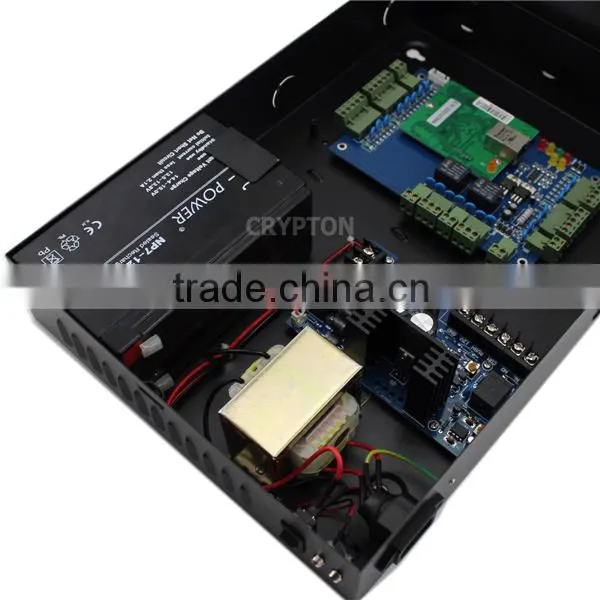

ACB-PS08A Power Supply work with ACB-002,also can configure PS-400B Storage battery
| |
| | |
|
ODM customized package design and CD Cover
| |
| | |
|

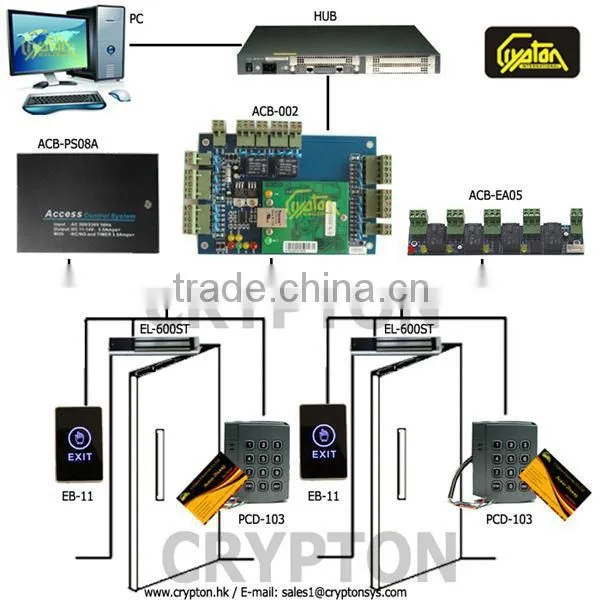

ACB-002 get in by swiping card and get out door by button
| |
| | |
|

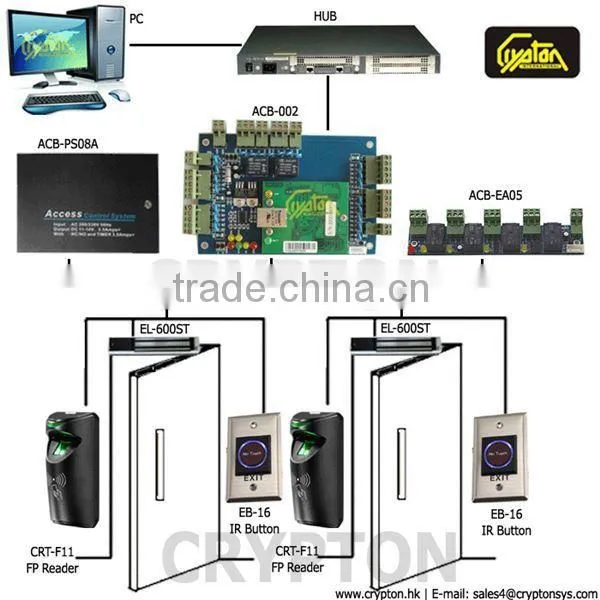

ACB-002 enter door by Finger or swipe ID cards ( CRT-F11 Fingeprint Reader )
| |
| | |
|

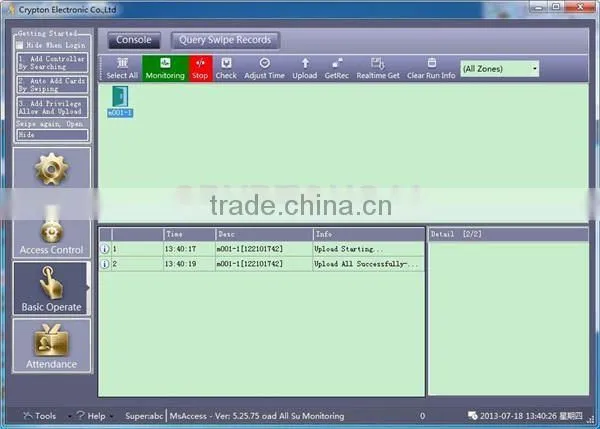

Access Control Software
| |
| | |
|
Neutral package or ODM customize package design
|
| |
| |
| |
|
Shipping
|
|
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door 2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving 3. Customers specifying freight forwarders or negotiable shipping methods! 4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods. |
|
Payment Terms
|
|
1. Payment: T/T, Western Union,PayPal for trial order. 2. MOQ: 1 piece as start |
|
1.Warranty
|
|
From the day of purchasing Crypton electronic products (in formal purchase invoice date, hereinafter referred to as: the purchasing date) , Crypton electronic offer you free warranty (ACB series control board,UHF long range card reader, within 2year quality guarantee.RFID card reader, exit push button,magnetic lock,bolt lock, strike lock, standalone access controller ,access power supply etc warranty period is 1 years, There will be labour and parts cost charged if the warranty period is expired; If the product need to be renovated, there will be labour cost and handling cost in cured |
|
2.Hot line services
|
|
If you have any product related technical problems when using Crypton electronic products, you are welcome to call our hot line at +86 755 29450011, Crypton electronic engineers and product designers will answer all the related questions. At the same time, you also can go to our official web site which provides the common problem settlement solutions. We will regularly put those customer common problems settlement solutions into the website for customer reference, there are general technical and non-technical problems will be included. |
|
3.Quick response
|
|
In the product warranty period, if there is the equipment malfunction, since the official announcement day, Crypton electronic will be response to the customer request within 2hours at working days, and will solve the problem within two working days. If there is any special reason the product cannot be repaired, we will contact you to find out the solutions, if the products being out of the warranty period, there will be related service charges. Note: in the service process, because other accident causes the products cannot be according to the commitment as mentioned above, Crypton will contact you to find out the better solution.. |
|
4.After-sales service confirmation procedures
|
|
Please prepare the corresponding purchase invoice, warranty certificate. If you can't provide above mentioned documents, the product of free warranty period will be calculated 30 days after ex-factory date. If you cannot provide any warranty certificate, Crypton electronic will check the the production date for provide better warranty service. After maintenance service, the products will continue to enjoy the original warranty. If the date of after maintenance to free warranty period is less than three months, Crypton electronic will extend the free warranty up to three months. At that time, you need to provide effective maintenance record. Please see this article below. |
| |
|
5. Customers cannot enjoy “Crypton electronic standard warranty policy " situation Under the following situation, whether or not in the warranty period inside, customers will not enjoy the free warranty: - no Crypton electronic labeling or counterfeit Crypton electronic labeled. - product beyond the Crypton electronic warranty period. - being not according to specification, installation instruction, wrong installation, dis-mental without Guardianship and lead to malfunction. - due to the use of the non-Crypton electronic accessories and lead to malfunction. - because of accident and misused (including improper handling, extrusion, collision, scratches, high temperature, damp, input voltage or current discrepancy) lead to malfunction. - because of natural disasters and controllable matters - other issues being not related to product design, technology, manufacturing, quality problem and lead to malfunction. |
|
6.Accessories
|
|
This commitment is only applicable to in China (except Hong Kong, Macau and Taiwan ) sales and purchase of Crypton electronic products. This commitment is only applicable to the purchasing date after Dec,2013 This warranty hot line may change, please go the this website for update information. Remarks: 1) Crypton electronic liability is limited to repair, replacement of defective products or product components. 2) Freight and maintenance costs are at the user’s cost in the maintenance period. 3) Maintenance lead time is 7 days after receiving maintenance request. |
|
Why Choose Crypton & S4A?
|
|
|
|
Crypton Office wroking enviroment - Pictures show
|
| |
|
Crypton Magnetic lock support OEM & ODM order, picture show for factory
|
| |
|
CE Certification
|
|
|
|
Access Control board by TCP/IP Control 1 door, 2 door and 4 door.
|
|
1: What's Crypton access control board features and advantages?
|
|
Answer: Our advantages: easy to install, easy to use, easy to upgrade, high stability and compatibility. You may find we don't have a lot of models, but all these models are Crypton's elite of 10 years experience in this industry. |
|
2: Can your software be translated into our local language?
|
|
Answer: For the time being we only have English and Chinese version. In future our software may be translated to other languages. We'll consider to include this into our next development plan. |
|
3: does your company has any guys to guide me how to use software and hardware?
|
|
Answers: Yes sure, any questions, we will reply it within 2 hours at working time. all issues and questions must be solved within 2days at non-working time. |
|
4: Software How to do OEM company name?
|
|
Answers: Email to us ( azura @ ), then will guide you one by one . Or can take a trial order from Crypton, We will send Software via OEM company name to you.. |
|
5: CD Cover how to do ODM design?
|
|
Answers: We have professional designer to do this files.. IF ACB-00 series controller based on 100 units, We will do ODM design for CD Cover without extra charge. |
|
