Exit Button

Exit Button thumbnail-1
Exit Button thumbnail-2
Exit Button thumbnail-3
Exit Button thumbnail-4
Exit Button thumbnail-5
Exit Button thumbnail-6
Exit Button photo-1
Exit Button photo-2
Exit Button photo-3
Exit Button photo-4
Exit Button photo-5
Exit Button photo-6
US$ 4.8 - 9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Crypton
Model Number:
EB-13
Contact Supplier Request Quote Chat Now
Shenzhen Crypton Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong and Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Crypton
Model Number EB-13
Max. Current 36VDC Max
Max. Voltage 3A

exit button



exit button



Product Description

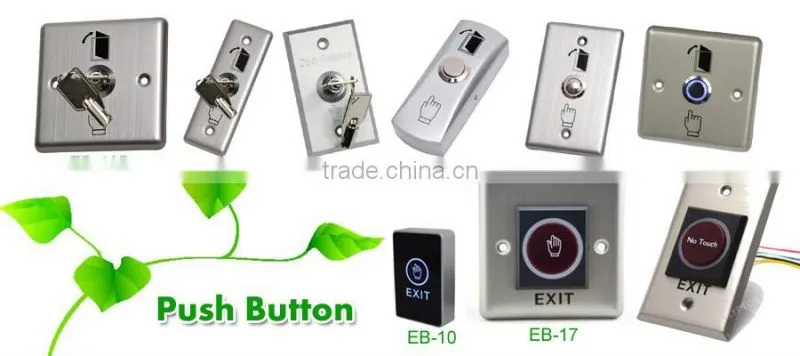

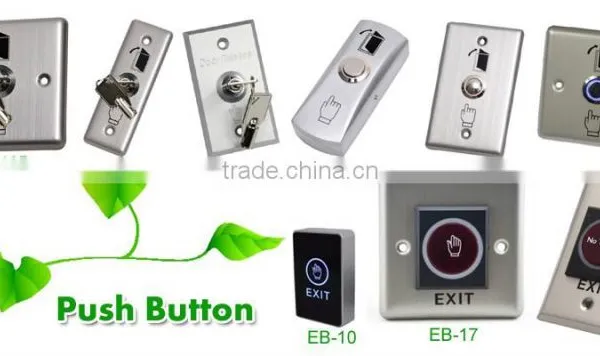

EB-16 and EB-17 No Touch Sensor Button:
EB-16  115Lx70Wx29H(mm)
EB-17  86Lx86Wx29H(mm)
Input   DC12V
Contact Rating  12-28V,3A
Output Contact  NONCCOM
Mechanical Life  500000 tested
Suitable for Door  Hollow Door
Operating temp  -20°C~+55°C(14-131F)
Suitable Humidity  0-95% (non- condensing)
Detection range  0.1-10cm
LED Indicator
White LED indicator  Power OFF
Blue LED indicator  Power ON(standby)
Red LED indicator  Power ON(sensation)
 exit button

EB-1405 Stainless Steel Push Button with button box
1: Dimensions: 80Lx30Wx24H(mm)
2: Standard Structure: Zinc Alloy Plate,Include Stainless steel Button
3: Current Rating: 3A@36VDC Max
4: Output Contact: NO/COM
5: Mechanical Life: 500000 tested
 exit button

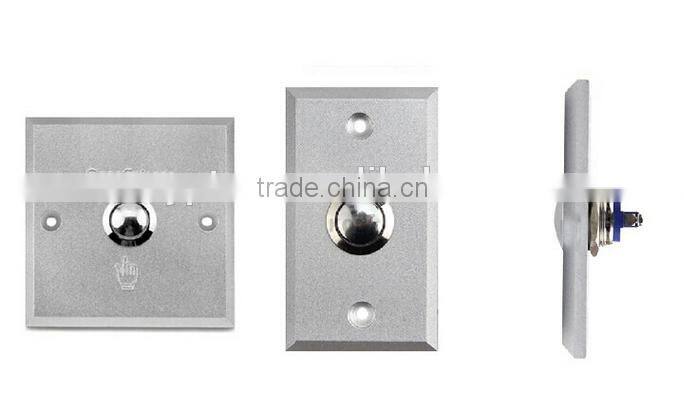

EB-14 Aluminium Exit button
Exit Push Button(Aluminium)
1: Dimensions: 86Lx50Wx20H(mm)
2: Rating: 3A@36VDC Max
3: Mechanical Life: 1000000 tested
4: Suitable for Door: Hollow Door
5: Color: White, Blue (luminescence)
 exit button

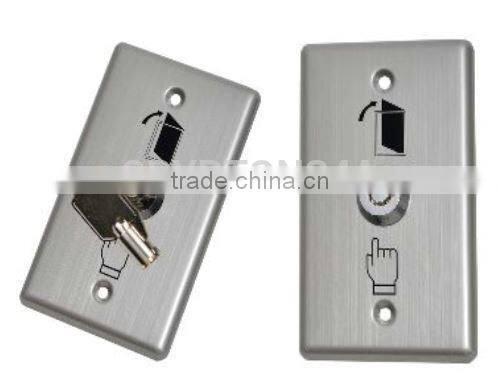

EB-14B ANSI Stainless Steel Exit Button with Key
ANSI Exit Button
1: Dimensions: 115Lx70Wx38H(mm)
2: Rating: 30A@36VDC Max
3: Mechanical Life: 1000000 tested
4: Suitable for Door: Hollow Door
5: Output Contact: NONCCOM
 exit button

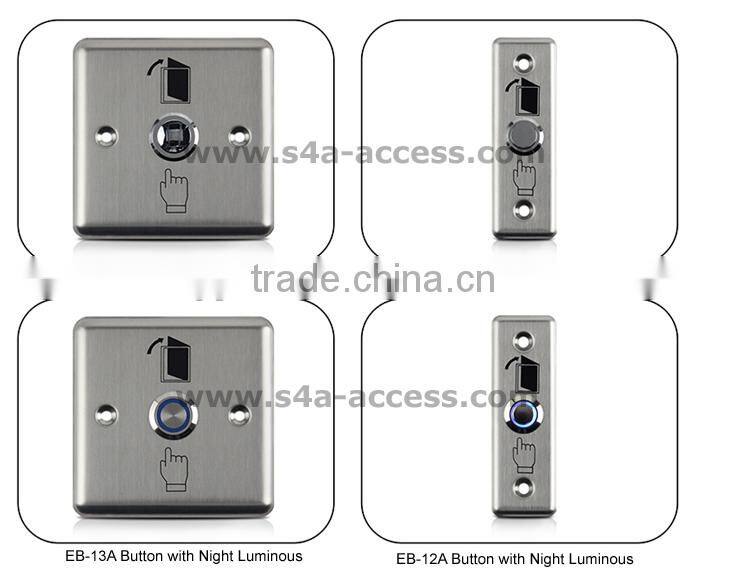

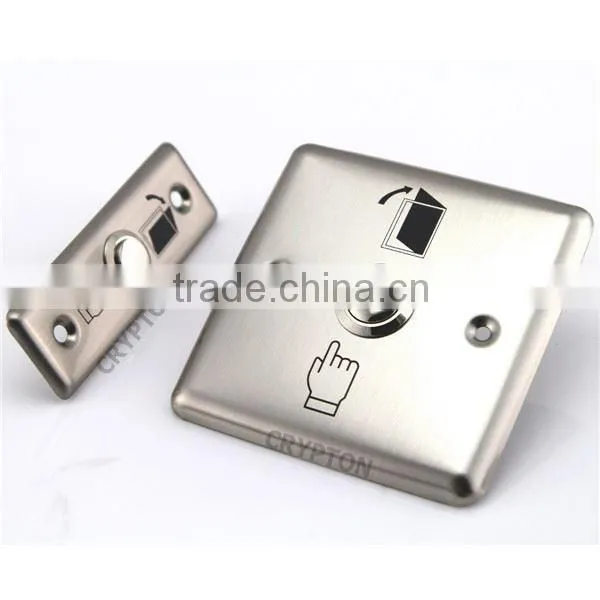

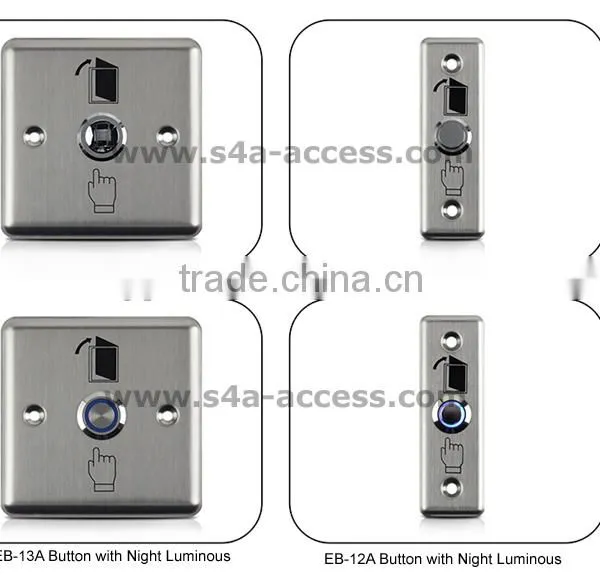

EB-13 and EB-13A Stainless Steel Exit Push Button
EB-13 Stainless Steel Push Button
EB-13A Stainless Steel Push Button with Night Luminous
Specification
Dimensions  91Lx28Wx20H(mm)
Standard Structure  Stainless steel Panel, Steel Button
Current Rating  3A,36VDC Max
Output Contact  NCCOM
Mechanical Life  1000000 tested
Suitable for Door   Hollow Door
Operating temp  -10~+55°C(14-131F)
Operating Humidity  0-95% (non- condensing)
Weight 0.15kg
Standard Packing 70pcs
 exit button

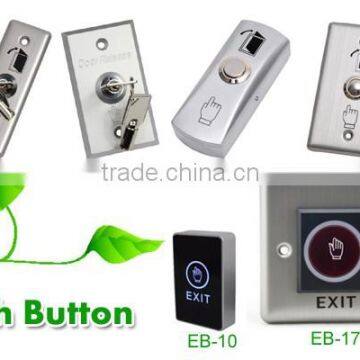

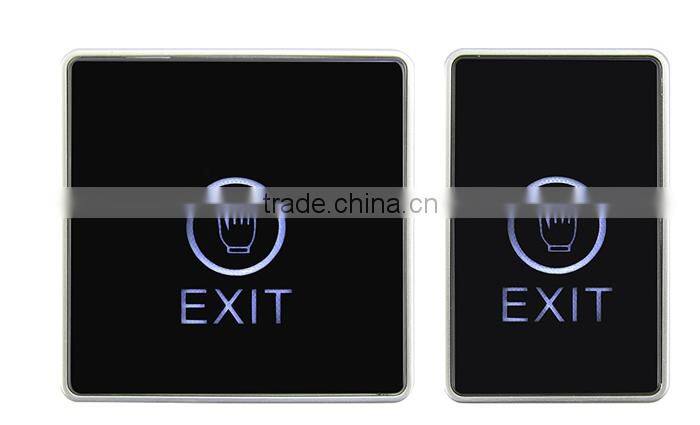

EB-10 and EB-11 Touch Screen Button:
EB-10 86x50x21mm
EB-11 86X86mm
Specification
Standard Structure  Stainless steel Panel, Steel Button
Current Rating  3A,36VDC Max
Output Contact  NCCOM
Mechanical Life  1000000 tested
Suitable for Door   Hollow Door
Operating temp  -10~+55°C(14-131F)
Operating Humidity  0-95% (non- condensing)
Weight 0.15kg
Standard Packing 70pcs
 exit button

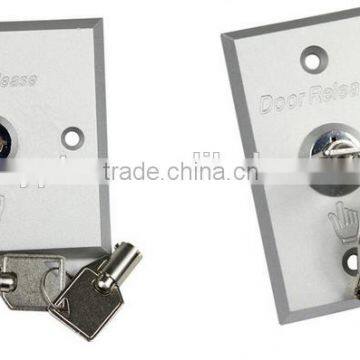

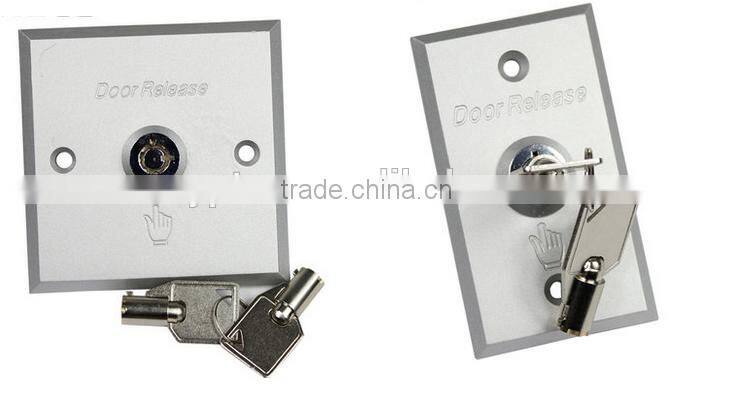

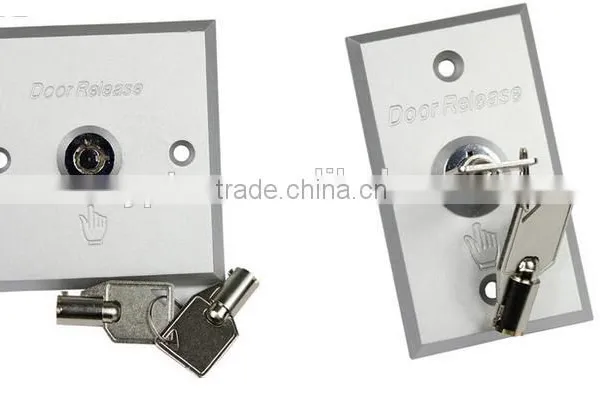

EB-30 and EB-31 Aluminium Emergency Switch Button with Key
EB-30 86(L) X50(W)
EB-31 86(L) X86(W)
Specification
Max Continuous Current  10A, 36VDC
Lock Resistance  ≤200ma
Safety Standard  Surface waterproof
and anti-copy key
Quality Assurance Two quality guarantee
Testing More than thousands of times
Multi-contact output Different types of door lock requirement
Standard Packing 70pcs
 exit button

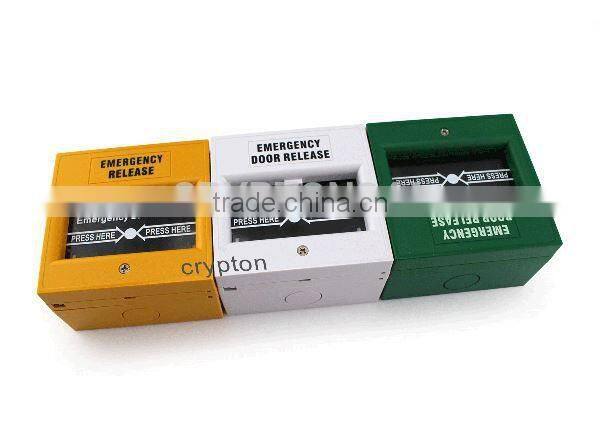

EB-20 Break Glass Fire Emergency Exit Release
Break Glass Fire Emergency Exit Release
Plastic Shell,Break glass to stop
1: connected circuit(NO/NC)
2: Dimension: 86*86*55mm
3: White, Red, Yellow and Green color available
 exit button

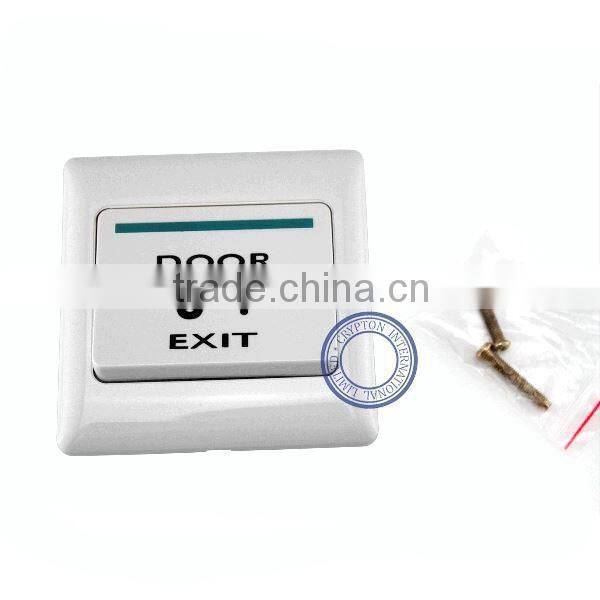

EB-18 Plastic Exit Button
Dimensions  86Lx86Wx20H(mm)
Standard Structure  Fireproof Material
Current Rating  3A,36VDC Max
Output Contact  NCCOM
Mechanical Life  1000000 tested
Suitable for Door  Hollow Door
Operating temp  10~+55°C(14-131F)
Panel Material  Fireproof Material
Weight  0.15kg
 exit button

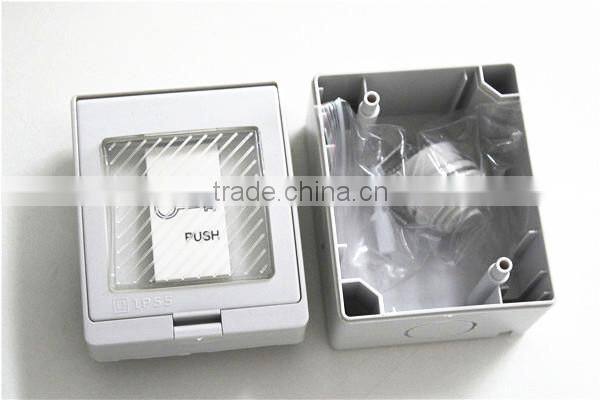

EB-W1 Waterproof Door Release Exit Button
EB-W1 button. This is plastic with fireproof material.
weight is 0.16kg/unit. It comes with back box and IP55 waterproof.
It is elegant style with long time usage.
 exit button

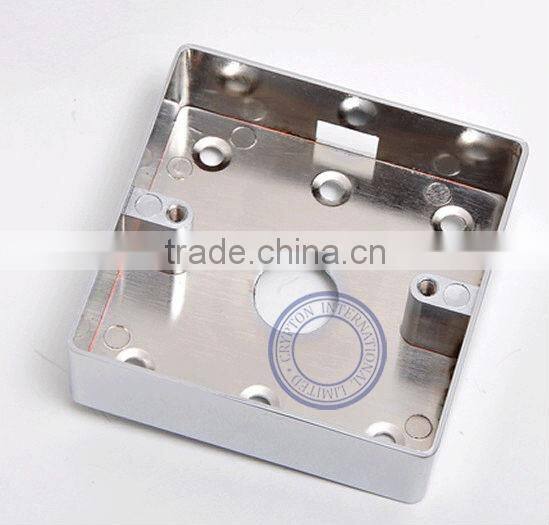

Metal Mounted Back Box for
1:Standard Instruction: zinc alloy material,and surface is coated with chrome
2:Design with metal material,beautiful,attractive and durable,
   only availble for NO and COM terminals
 exit button

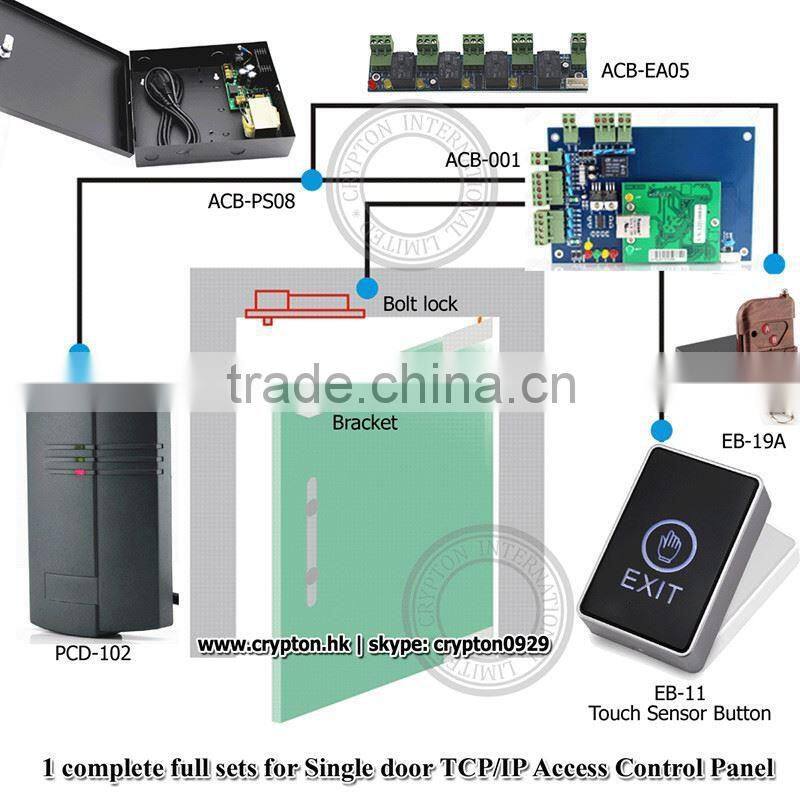

Exit button for Security Access Control Board
 exit button

Exit button for Fingerprint Access Control
 exit button

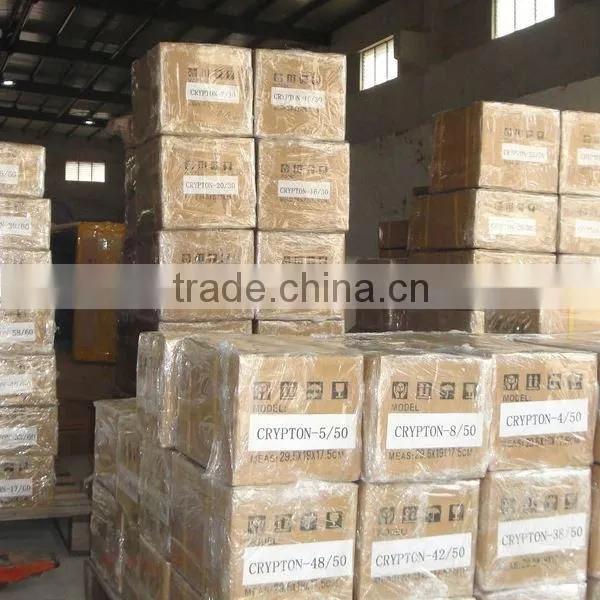

Packaging & Shipping

 exit button







Company Information



Access Control Board

(for single door, double door and four door support TCP/IP and web based

 with free software to manage)

Standalone access control

(Easy to install and program without software)

Fingerprint access control&time attendance
(Easy to install and program with software and keep record)

Facial access control terminals
(Face to open the door or do record)

Guard tour probe

(Available with GPRS,3G,4G to customize)

Electromagnetic lock/Bolt lock/Strike lock

(available with OEM&ODM design)

Exit push button/Access Power supply/RFID cards

Proximity card reader

(125KHz and 13.56MHz)
