Specifications
1.Easy operation2.flexible starting
3.accurate colour register
4.Two color printing machine

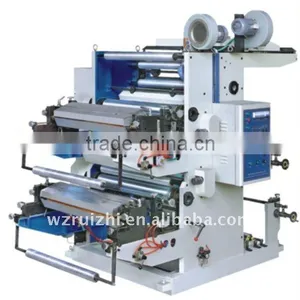

YT TWO COLOR PRINTING MACHINE
Use
Suitable for printing such packing materials as non-woven fabric,polyethylene, polypropylene plastic bag, glass paper,etc. It is a kind of ideal printing equipment for producing paper package, supermarket handbag, vest bag and clothes bag, etc.
Function:
1 Easy operation, flexible starting, accurate color register.
2 The meter counter an set printing quantity according to the requirement,Stop the machine automatically at the quantity,Stop when the material is cut off.
3 Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink automatically after lifting.
4 The printing ink is spread by the anilox cylinder with even ink color.
5 Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6 360°continuous and adjustable longitudinal register device.
7 The import frequency controller of motor speed adapts to different printing speed.
8 there are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameters:
Model |
YT-2600 |
YT-2800 |
YT-21000 |
YT-21200 |
YT-21400 |
Max.Width of Printing Material (mm) |
600 |
800 |
1000 |
1200 |
1400 |
Max.printing Width(mm) |
560 |
760 |
960 |
1160 |
1360 |
Length Range of Printing Product(mm) |
191-914 |
191-914 |
191-914 |
191-914 |
191-914 |
Max.Diameter of Roll Material(mm) |
450/1000 |
450/1000 |
450/1000 |
450/1000 |
450/1000 |
Printing Speed (m/min) |
5-50 |
5-50 |
5-50 |
5-50 |
5-50 |
|
Thickness of plate(mm) (including Two-sided Glue Paper) |
2.38/3.94 |
2.38/3.94 |
2.38/3.94 |
2.38/3.94 |
2.38/3.94 |
Power Supply(V) |
380V (three-phase four-wire power cable) |
380V (three-phase four-wire power cable) |
380V (three-phase four-wire power cable) |
380V (three-phase four-wire power cable) |
380V (three-phase four-wire power cable) |
Total Power(kw) |
8kw |
10kw |
11kw |
11kw |
13kw |
Machine Weight(kg) |
1800kg |
1900kg |
2100kg |
2300kg |
2400kg |
Incasement Weight(kg) |
2000 |
2100 |
2300 |
2500 |
2600 |
Machine Dimensions (mm) |
2300x1700 x2200 |
2300x1900 x2200 |
2300x2100 x2200 |
2300x2300 x2200 |
2300x2500 x2200 |
