Home > Packaging & Printing > Machinery for Packaging Supplies > Bag Making Machine > Multifunction Non Woven Box Bag Making Machine (Wzdj-N Series)

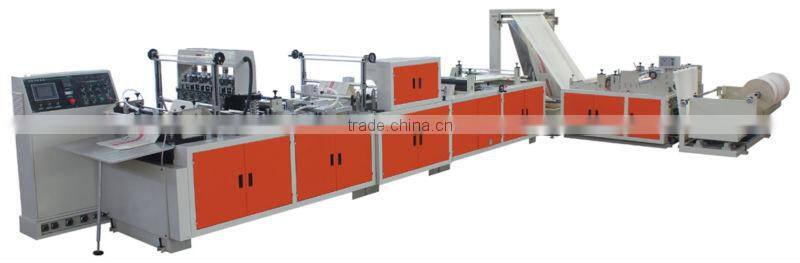

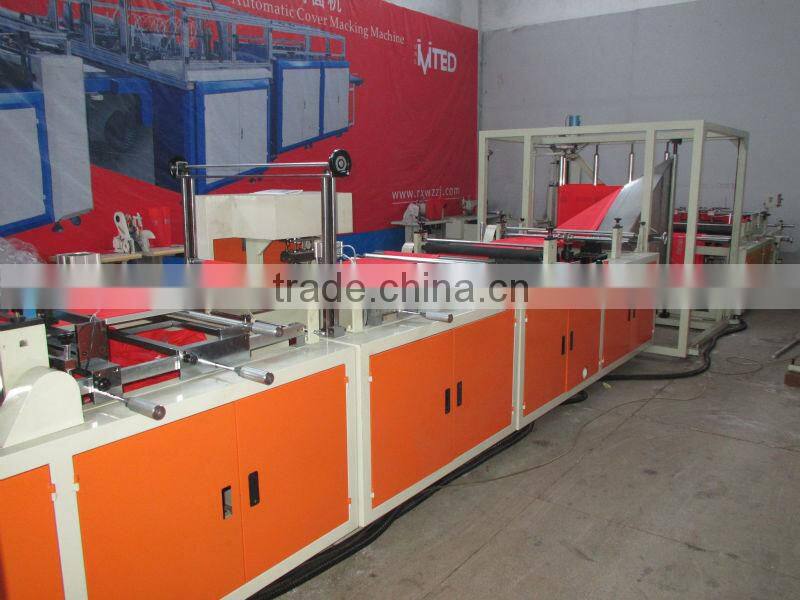

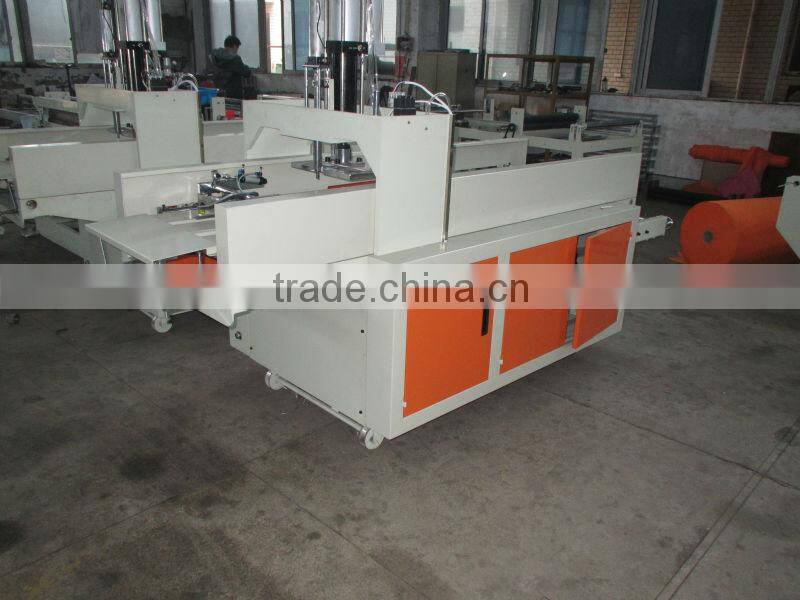

Multifunction Non Woven Box Bag Making Machine (Wzdj-N Series)

Name: Multifunction Non Woven Box Bag Making Machine (Wzdj-N Series)
Brand: MTED
SKU: 118591943
Availability: InStock

Wenzhou Ruizhi Packing Machinery Co., Ltd.

Multifunction Non Woven Box Bag Making Machine (Wzdj-N Series) thumbnail-1

Multifunction Non Woven Box Bag Making Machine (Wzdj-N Series) photo-1

US$ 1 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Machine Type:

Bag Forming Machine

Bag Type:

Shopping Bag

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Machine Type Bag Forming Machine

Bag Type Shopping Bag

Material Non Woven Bag

Computerized Yes

Place of Origin Zhejiang, China

Brand Name MTED

Model Number WZDJ-NB

Certification CE

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.hard sealing
2.high speed
3.high efficiency
4.Ultrasonic rolloff

WZDJ-NB FULL AUTOMATIC NON WOVEN BAG MAKING MACHINE SUPPLIER

Use:

This machine continual improved by our company, according to same industry technical norms of the most advanced in the world at present,recast and designed by the newest demic engineering. Multi-function,fast speed,quality stable. Now, this machine become the newest generation full automatic multifunction non woven fabric bag making machine, and this equipment use non-woven fabric raw material,can made various type bag,different type non-woven fabric bag,such as gift bag,handle bag,flat bag,T-shirt bag etc. It have superiority to make many kinds of bag on the machine,get more favor and good opinion from native and foreign customers! Completely attain CE safety standards in Europe.

Function:

1. This machine adopt Taiwan touch screen computer display,PLC computer program which can edit.

2. Auto meter counting,stopping could freely setting number.

3. Computer Fixed-length,printing color mark track orientation,Auto-stop when complete.

4. high voltage static processor,Auto constant temperature heating controller.

5 It have could control automatic triangle trim angle, stand type air pressure welding,automatic pneumatic handle punching.

6. Unwinding magnetic powder tension control with manual,auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects,bag mouth folding welding,bottom sealing,side sealing,once full completed,fast speed,east to operate,firm sealing,beautiful and decent.

Main Technical Parameters:

600Model
Bag Type	Flat bag	Box bag	T-shirt bag	Handle bag
Length of Bag (mm)	300-520	350-480	300-520	300-520
Width of Bag (mm)	100-700	300-600	150-360	100-700
Speed (pcs/min)	20-110	20-50	20-70	10-25
Material Thickness (g)	35-80	45-85	35-60	30-80
Inserting Size (mm)	30-90	30-80	30-120	30-90
Machine Power	380v (Three-phase Four-wire power cable)
Air Pressure	0.5
Total Power(kw)	14
Machine Weight(kg)	3200
Incasement Weight(kg)	3800
Overall Dimension L Shape (mm)	1300016001800
With T-shirt bag punch(pcs)	5-10pcs
Dimension with T-shirt bag punch(mm)	2800x1200x1900

700Model
Bag Type	Flat bag	Box bag	T-shirt bag	Handle bag
Length of Bag (mm)	300-650	350-550	300-600	300-650
Width of Bag (mm)	100-700	300-600	150-420	100-700
Speed (pcs/min)	20-110	20-50	20-70	10-25
Material Thickness (g)	35-100	45-85	35-60	30-80
Inserting Size (mm)	30-90	30-80	30-120	30-90
Machine Power	380v (Three-phase Four-wire power cable)
Air Pressure	0.5
Total Power(kw)	15
Machine Weight(kg)	3500
Incasement Weight(kg)	4200
Overall Dimension L Shape (mm)	1300018001800
With T-shirt bag punch(pcs)	5-10pcs
Dimension with T-shirt bag punch(mm)	2800x1200x1900

800 Model
Bag Type	Flat bag	Box bag	T-shirt bag	Handle bag
Length of Bag (mm)	300-750	300-650	300-600	300-750
Width of Bag (mm)	100-700	300-700	200-480	100-700
Speed (pcs/min)	20-110	20-50	20-70	10-25
Material Thickness (g)	35-100	45-85	35-65	30-80
Inserting Size (mm)	40-90	40-80	40-120	30-90
Machine Power	380v (Three-phase Four-wire power cable)
Air Pressure	0.5
Total Power(kw)	16
Machine Weight(kg)	4000
Incasement Weight(kg)	4500
Overall Dimension L Shape (mm)	1300020002000
With T-shirt bag punch(pcs)	5-10pcs
Dimension with T-shirt bag punch(mm)	2800x1200x1900
