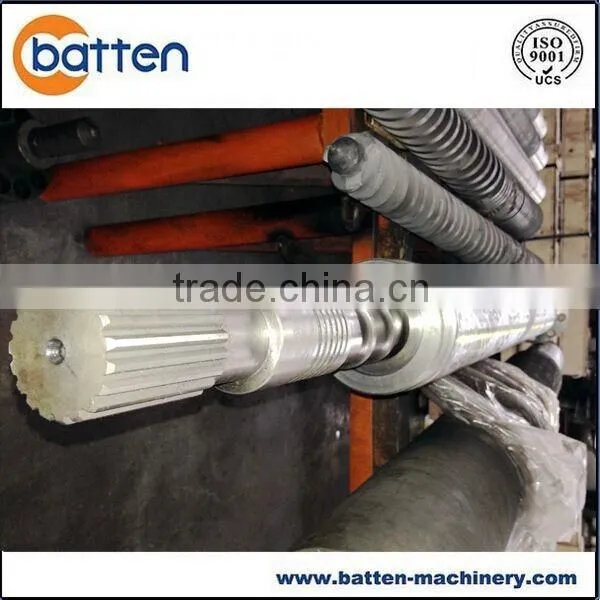

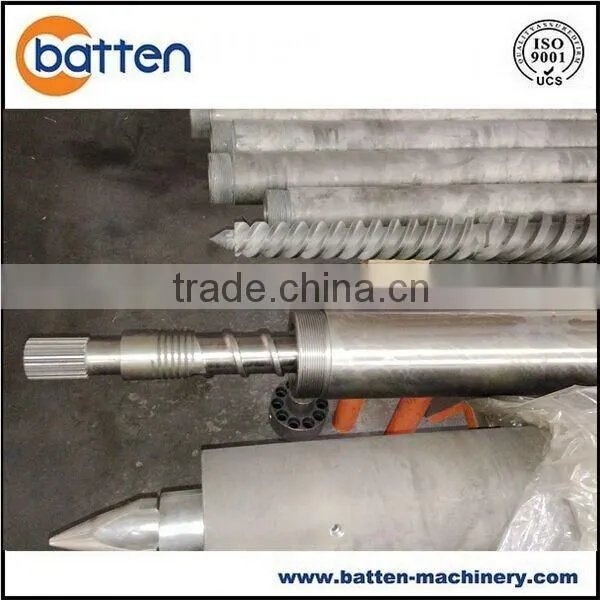

Help Center60mm Single Plastic Machine Screw Barrel for PE Film Extruder Machine
Related Products
-
Single Bimetallic Extruder Screw and Barrel Factory for Plastic MachineUS$ 2,000 - 2,300MOQ: 1 Set -
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe ExtruderUS$ 2,800 - 2,800MOQ: 1 Set
-
100/36 High Capacity Screw Barrel / Water-cooled Jacket for HDPE Pipe ExtruderUS$ 4,500 - 4,500MOQ: 1 Set
-
PE Granulation Screw BarrelUS$ 6,200 - 6,200MOQ: 1 Set
-
Cable & Wire Screw Barrel for PVC Cable & Wire ExtruderUS$ 2,000 - 2,000MOQ: 1 Set
| Technical Information | |||
| Main Base materials | 1.38CrMoAlA (SACM645) | Main Alloy Materials | 1. Ni-based alloy/Deloro alloy |
| 2. SKD-61 (Special Tool Steel) 4Cr5MoSi V1 | 2. Tungsten carbide/Wolfram carbide | ||
| 3. 42CrMo (Ultrahigh StrengthSteel) | 3. NiCo-based alloy | ||
| 4. DC53 (Cold WorkDie Steel) | 4. Fe-based alloy | ||
| 5. W6Mo5Cr4V2 (High-SpeedToolSteel 6542) | 5. Co-based alloy | ||
| Processing Technics | 1. Heat treatment | Technical parameters | Nitriding layer depth:0.5-0.8mm |
| 2. Quenching | Nitrided hardness:900-1000HV | ||
| 3. Nitriding treatment | Bimetallic layer depth: 0.8-3 mm | ||
| 4. Bimetallic alloy welding for screw | Bimetallic hardness:57~65HRC | ||
| 5. Bimetallic alloy centrifugal casting for barrel | Hard-chrome plating hardness after nitriding:≥950HV | ||
| 6. Hard-chrome electroplating | Chrome-plating layer depth:0.03-0.09mm | ||
| Linearity of screw:0.015mm | Surface roughness:Ra 0.4 | ||

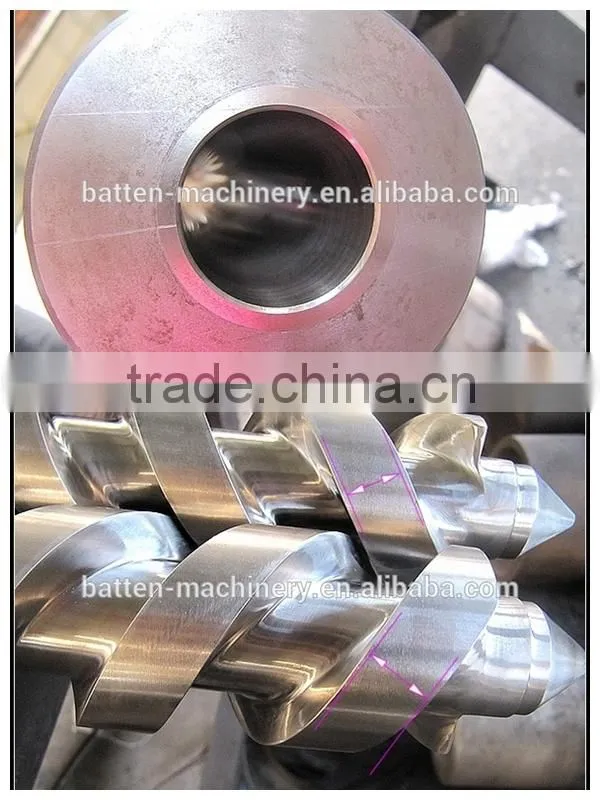

We use special alloy powders being sprayed and welded on the screw's ridge with diferent alloy and welding methods for different function.

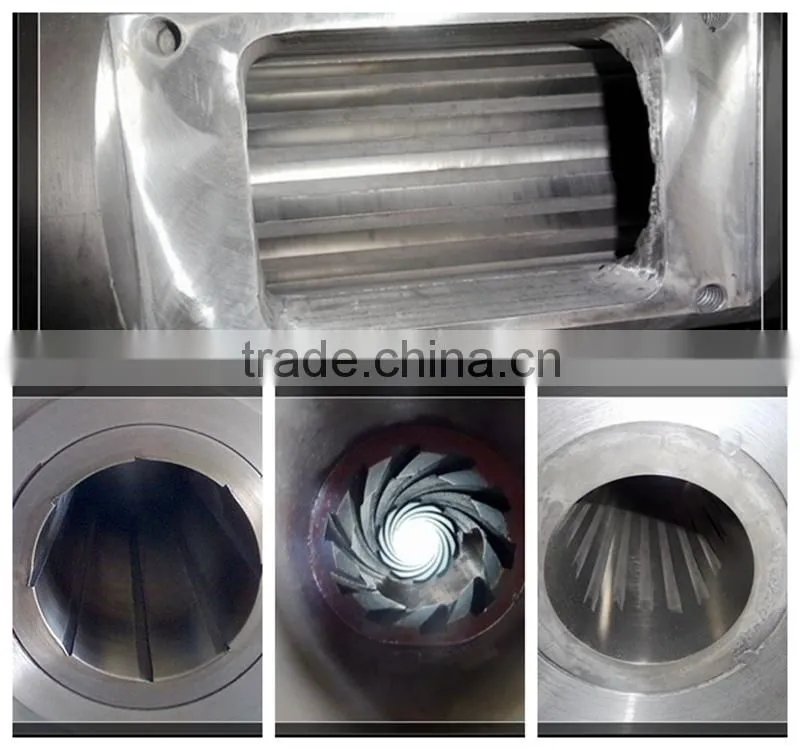

For faster feeding, line grooves and helix grooves could be processed on the barrl inner wall.
- We are one station screw and barrel solution.
- We focus on each process to make sure every screw barrel is qualified and exact you want.
- Engineers for measure are availabe oce size and drawings are not clear.
- All screw barrels have one year- guarantee, while 3-5 years life time for nitriding ones, and alloy ones would be longer.

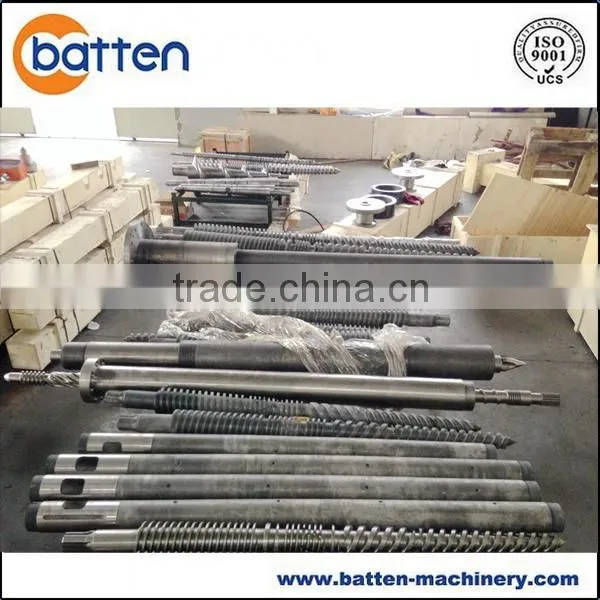

BATTEN is located in Zhoushan City, the largest manufacture base of Screw Barrel in China.
With 1500 SQ.M workshop, and 40 experienced emplyees are equiped at BATTEN.
We equipped advanced technology and equipment for processing, test, as well as extended experience for design, nitrided , chrome plating, stainless steel, bimetallic and HVOF ( surface spraying technology) treatment for different demands.
we are able to design and make products as per your drawing and present parts. With high quality products, satisfies and prompt sevice , looking forward to cooperate with you.
- Be brushed anti-corrosive oil on screw barrel set;
- Packed with film;
- Packed in the wooden case.
