90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder

90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder thumbnail-1
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder thumbnail-2
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder thumbnail-3
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder thumbnail-4
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder thumbnail-5
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder thumbnail-6
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder photo-1
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder photo-2
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder photo-3
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder photo-4
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder photo-5
90/33 High Capacity Single Screw Barrel for PPR HDPE Pipe Extruder photo-6
US$ 2,800 - 2,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Batten
Model Number:
90/33
Contact Supplier Request Quote Chat Now
Zhoushan Batten Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Batten
Model Number 90/33

90/33 high capacity Single screw barrel for PPR HDPE pipe extruder

Technical Information
Main Base materials 1.38CrMoAlA (SACM645) Main Alloy Materials 1. Ni-based alloy/Deloro alloy
Processing Technics 1. Heat treatment Technical parameters Nitriding layer depth: 0.5-0.8mm
2. Quenching Nitrided hardness: 900-1000HV
3. Nitriding treatment Bimetallic layer depth: 0.8-2 mm
4. Bimetallic alloy welding for screw Bimetallic hardness: 57~65HRC
5. Bimetallic alloy centrifugal casting for barrel Hard-chrome plating hardness after nitriding: ≥950HV
6. Hard-chrome electroplating Chrome-plating layer depth:0.03-0.09mm
Linearity of screw: 0.015mm Surface roughness: Ra 0.4

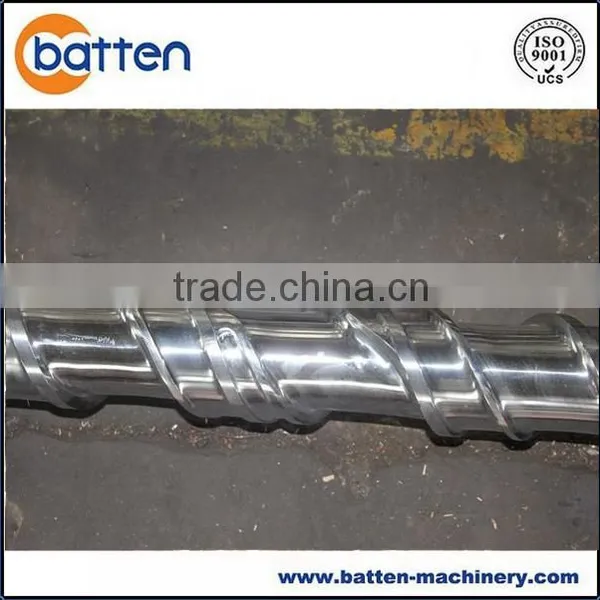

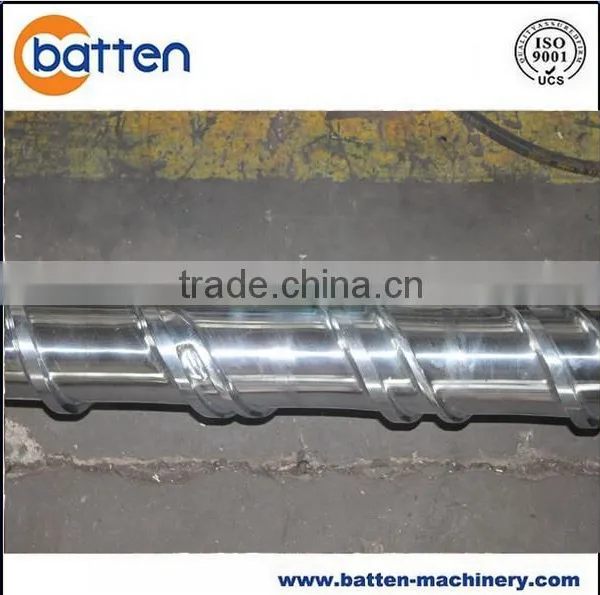

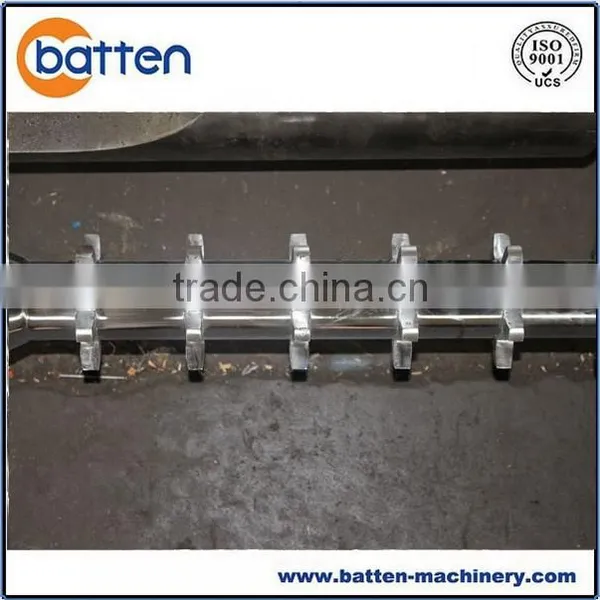

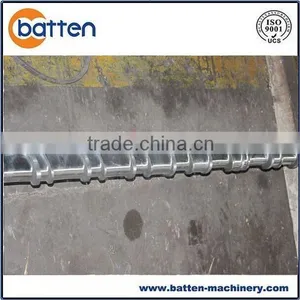

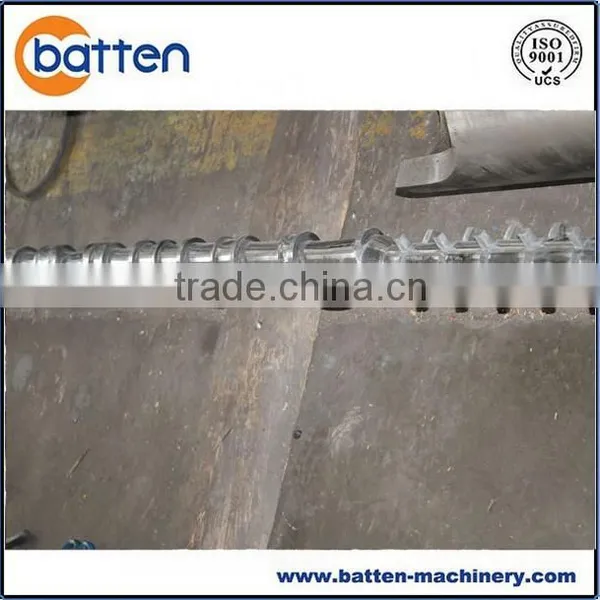

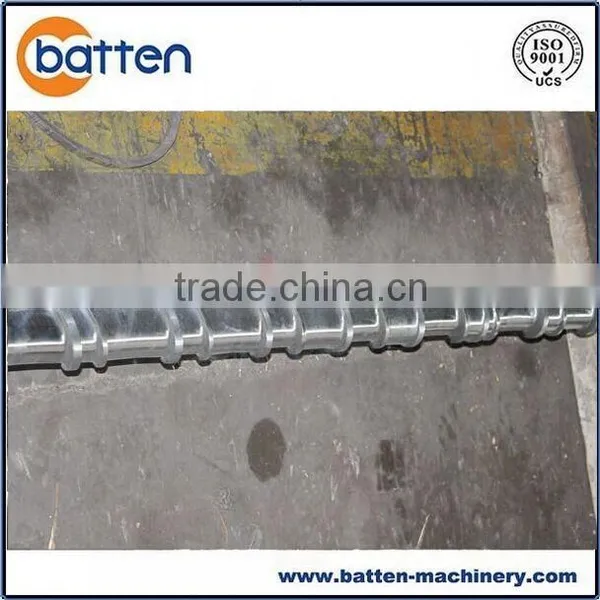

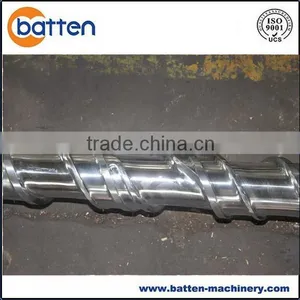

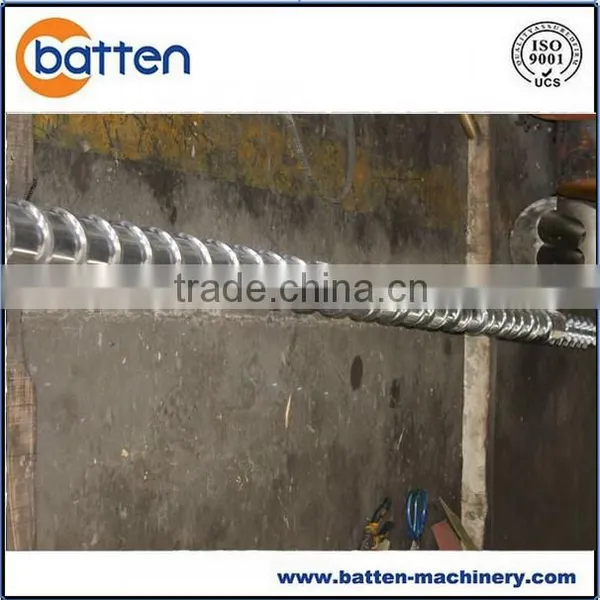

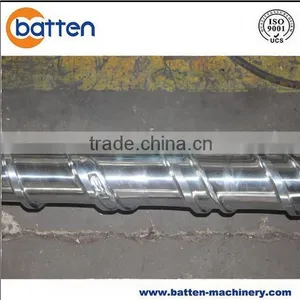

                                                               φ90/33 screw Photos:



 90/33 high capacity Single screw barrel for PPR HDPE pipe extruder
90/33 high capacity Single screw barrel for PPR HDPE pipe extruder90/33 high capacity Single screw barrel for PPR HDPE pipe extruder90/33 high capacity Single screw barrel for PPR HDPE pipe extruder

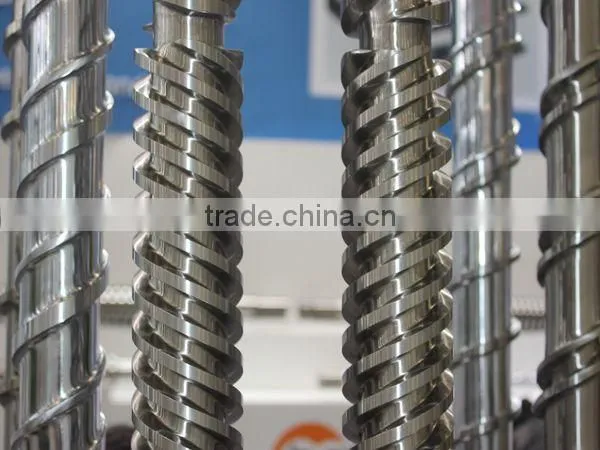

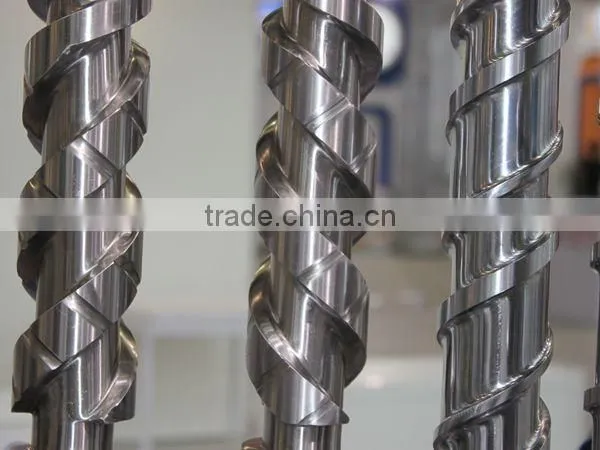

Other Products Show



90/33 high capacity Single screw barrel for PPR HDPE pipe extruder90/33 high capacity Single screw barrel for PPR HDPE pipe extruder90/33 high capacity Single screw barrel for PPR HDPE pipe extruder90/33 high capacity Single screw barrel for PPR HDPE pipe extruder

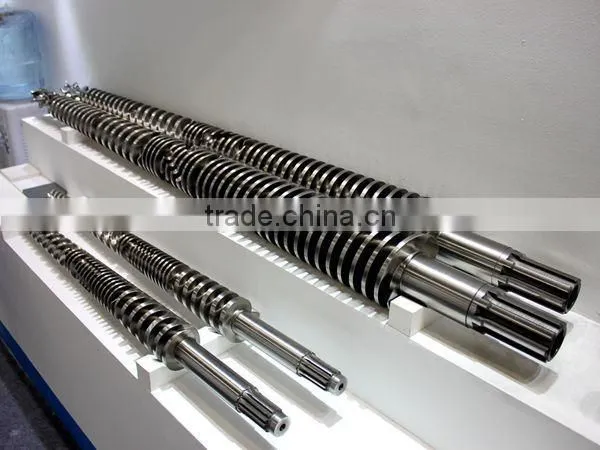

Bimetallic plastic extrusion conical twin screw barrel:ready for delivery

90/33 high capacity Single screw barrel for PPR HDPE pipe extruder

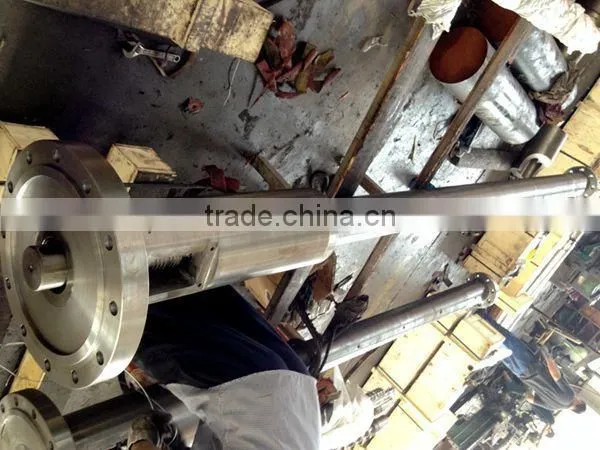

Bimetallic screw barrel after nitriding:usually we have such semi-finished screw barrel in store.when customer order,we will do polishment finally and do shipment within 5 days.

90/33 high capacity Single screw barrel for PPR HDPE pipe extruder



Company Information

BATTEN is located in Zhoushan City, the largest manufacture base of Screw Barrel in China.

With 1500 SQ.M  workshop, and 40 experienced emplyees are equiped at BATTEN.

90/33 high capacity Single screw barrel for PPR HDPE pipe extruder

We equipped advanced technology and equipment for processing, test, as well as extended experience for design,  nitrided , chrome plating, stainless steel, bimetallic and HVOF ( surface spraying technology) treatment for different demands.

we are able to design and make products as per your drawing and present parts. With high quality products, satisfies and prompt sevice , looking forward to cooperate with you.

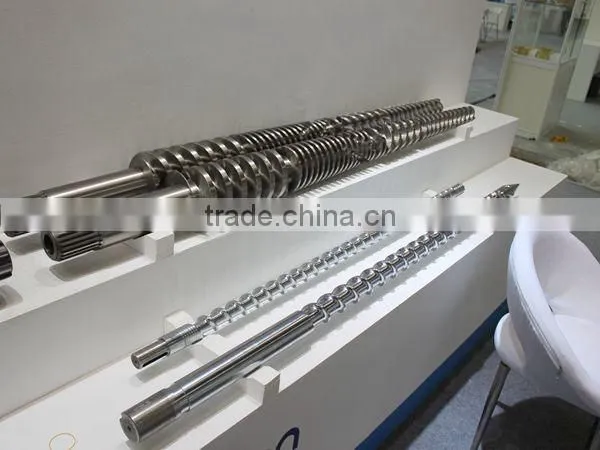

Exhibition
