Help CenterConical Screws Extruder Twin Barrel and Screw for Plastic Machine
Related Products
-
Chrome/nitride/bimetallic Conical Twin Screw Barrel for Plastic Extruder MachineUS$ 4,240 - 4,400MOQ: 1 Set -
38CrMoAla Conical Twin Nitride Barrel and Screw for Plastic MachineUS$ 7,500 - 7,800MOQ: 1 Set
-
CM80 Extruder Double Screw BarrelUS$ 7,000 - 7,500MOQ: 1 Set
-
65/132 Extrusion Nitrided Screw and BarrelUS$ 3,800 - 4,200MOQ: 1 Set
-
38CrMoAla Conical Twin Nitride Screw Barrel for Plastic MachineUS$ 3,270 - 3,430MOQ: 1 Set
| Name | Conical Twin Screw Barrel |
| MOQ | 1 set (1 pair of screws and 1 pc barrel) |
Design Details |
Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system
Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system
|
Accessories |
Stop ring+washers to adjust the space between screw and barrel |
Technical Specification |
Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm |

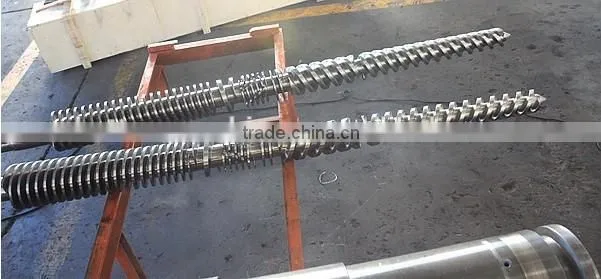

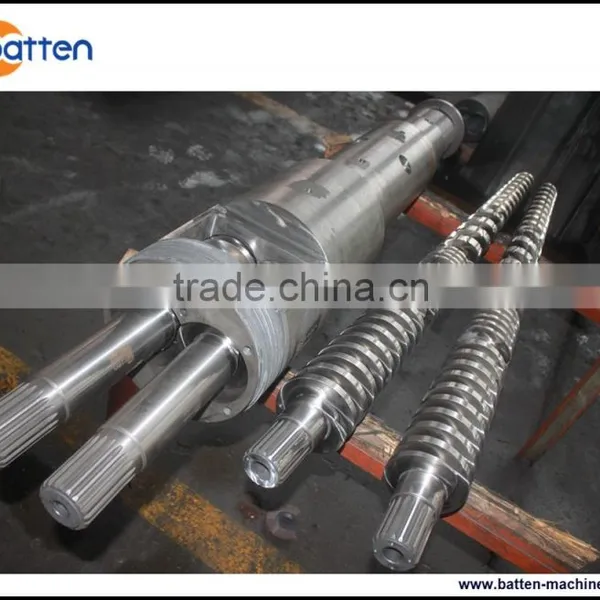

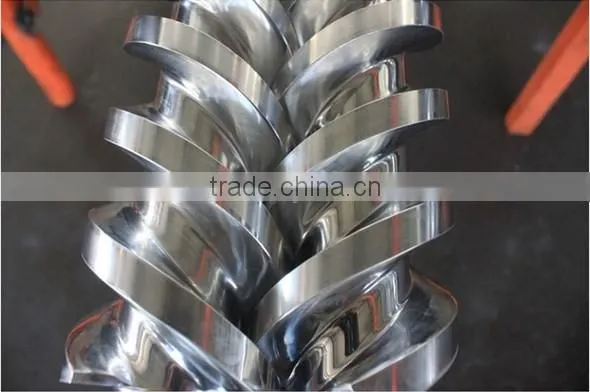

Pictures of screw barrel geometry

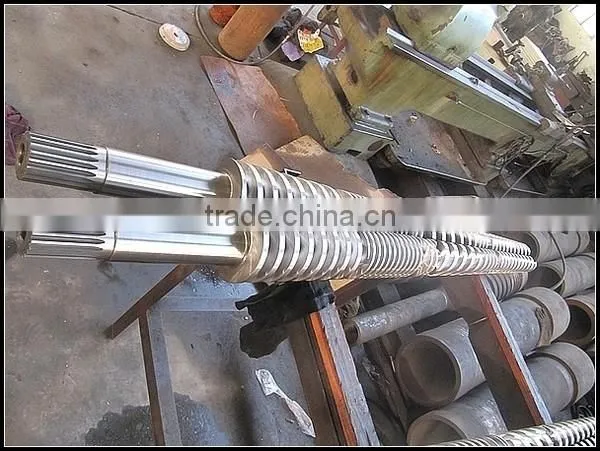

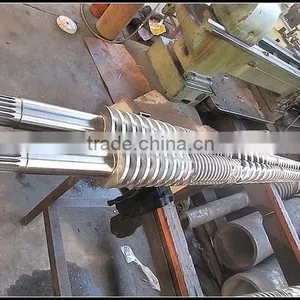

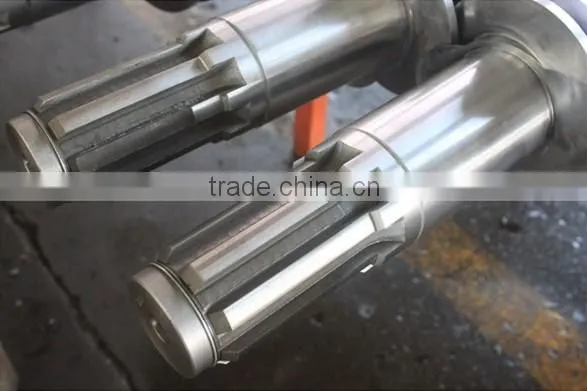

Pictures of scew barrel end coupling connection

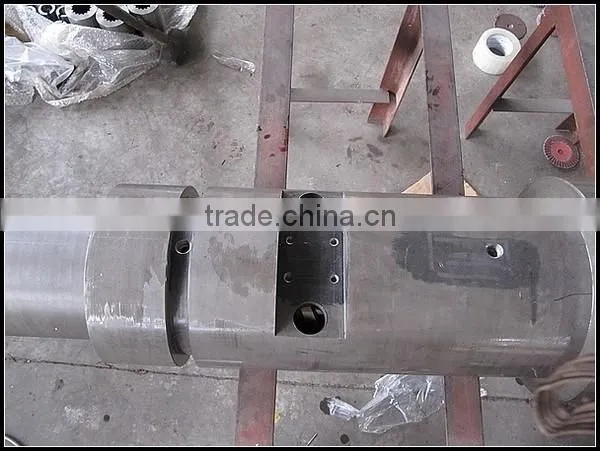

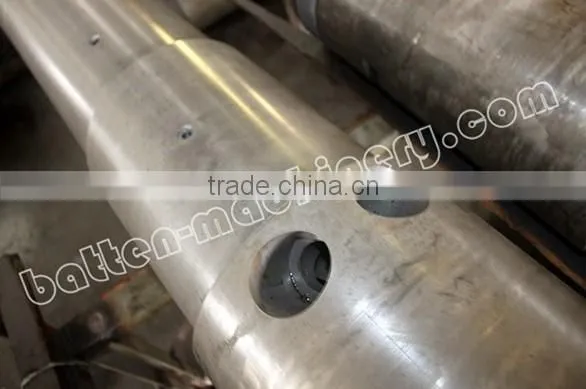

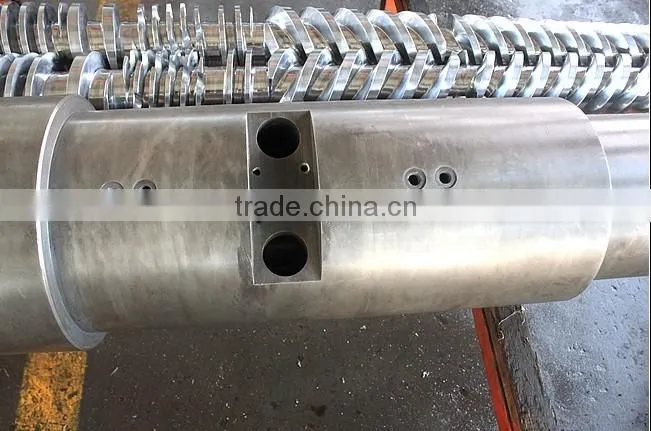

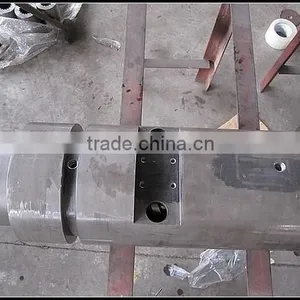

Pictures of screw barrel vacuum pump & thermocouple holes

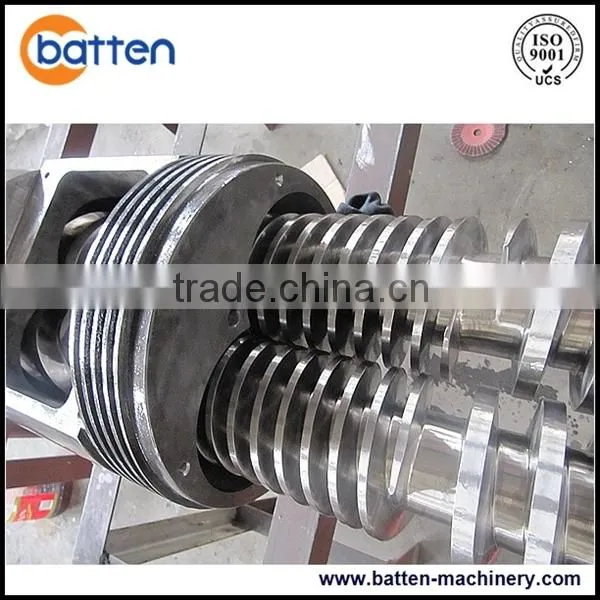

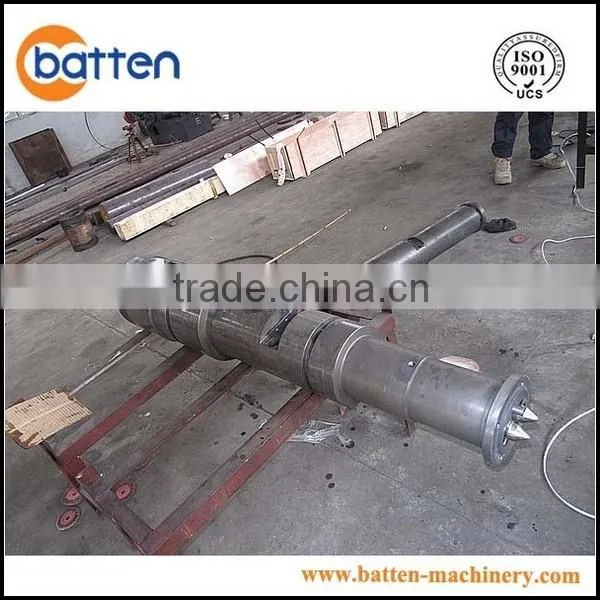

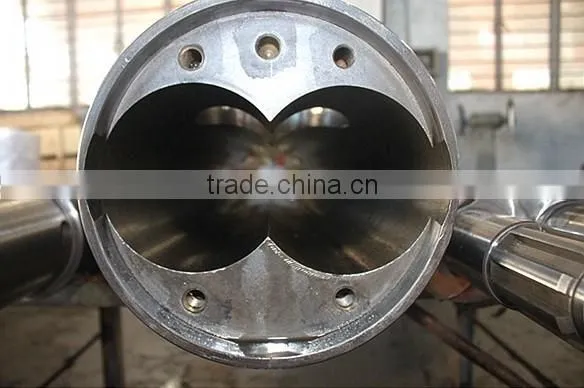

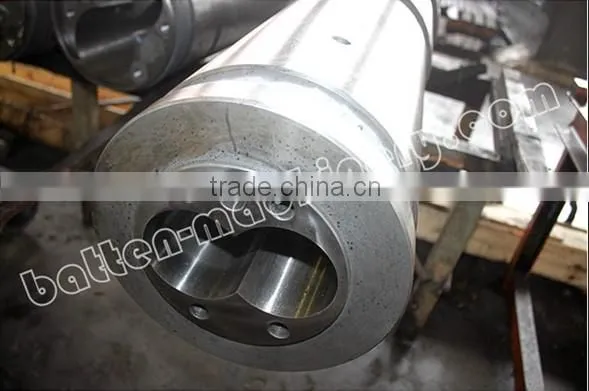

Pictures of screw barrel ends connection with gearbox & die head

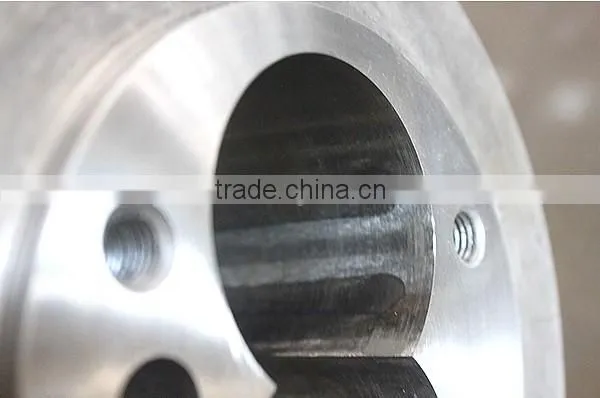

Bimetallic pictures of screw barrel
Screw Process:
Blanking ->Punching ->Rough turning ->Hardening & Tempering ->Finish turning ->Rough Milling ->Finish Milling ->Make grooves for bimetallic ->Bimetallic by PTA ->Rough Grinding ->Rough polishing ->Make splines or Keys ->Nitriding ->Finish Grinding ->Polishing ->Packing & Delivery
Barrel Process:
Blanking ->Punching ->Rough turning ->Rough Boring ->Hardening&Tempering ->Finish Boring(0.4-0.8mm) ->Make grooves for bimetallic ->Bimetallic by PTA ->Finish Grinding ->Finish turning ->Milling the feeding hole & exhausting holes ->Nitriding ->Make other small holes,thermometer hole,location hole->Grinding surface of feeding hole & exhausting hole ->Polishing ->Packing & Delivery
1.Engineers available to service machinery overseas
2.Sevice on line,24*7 hours
1.What information should be supplied when inquiry price of screw and barrel?
a.Conical /parallel twin screw barrel - I.Extruder brand II.Model.
eg.Jwell 65/132,LSE80/156,KMD114/36,BEX90/22 etc.
b.Injection machine screw barrel - I.Injection machine model II.Screw diameter III.Type A,B or C.
c.Single extruder screw barrel - I.Plastic products II.Screw diameter & L/D
2.What information need supplied when confirm production drawing?
a.gearbox nameplate,if machine made in China,only supply gearbox nameplate,that we can confirm the production drawing.
If can not or not from China,it is best to supply:
nnection flanges size or barrel connection thread size
c.thermocouple holes location,qty & size
d.screw connection coupling size: I. screw end max.diameter II.Number of keys.
e.barrel outside sketch
3.Which one is better for PVC profile?Bimetallic or Nitriding?
We suggest to use nitriding screw barrel for PVC profile to have better quality finished products.
4.How to choose screw barrel for injection machines?
For new/virgin plastic raw material,we suggest use nitriding ones.
For material with glass fiber less than 15%~30%,we suggest to do bimetallic screw and barrel.
For material with glass fiber more than 30%,we suggest to do tungsten bimetallic screw and barrel.
5.How about the guarantee of screw barrel?And life time?
Our normal guarantee is one year after date of departurement.Sometime,depends on real raw plastic material.
Life time is about 3~5 years for extruder single screw barrel,and around 20,000 work hours for PVC material.
Mostly,depends on real raw plastic material.
6.How to give good service?
Our engineers available to service machinery overseas.
We promise,any quality problem from Batten,we are great responsibility to resolve for clients.
Once receive your inquiry or question,our sales will contact with you within 24 hours.
Each screw barrel will be inspected twice before delivery.First inspection is before nitriding,the second time is after nitriding.
7.Which raw steel Batten use to make screw barrel?
We choose Shanghai Bao Steel and Fushun Special Steel.These steel suppliers are TOP 10 producers in China.
8.Is Batten a factory or a trading company?
Zhoushan Batten Machinery Technology Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery.
Zhoushan Batten Import and Export Co.,Ltd is a member of Batten Group,specializes in exporting kinds accessory parts of plastics machinery,and annual sales is more then 5 Million US dollar.
9.What's Batten Location?
Pls search on Google map"Laotangshan Tunnel,Cengangzhen,Dinghai,Zhoushan City,Zhejiang Province".There we are.
10.How to go to Batten from other city?
Since there is no train to our city,but you can take a bus from Shanghai/Ningbo.Our bus station name is "DINGHAI,ZHOUSHAN CITY."
