Help CenterChrome/nitride/bimetallic Conical Twin Screw Barrel for Plastic Extruder Machine
Related Products
-
38CrMoAla Conical Twin Nitride Barrel and Screw for Plastic MachineUS$ 7,500 - 7,800MOQ: 1 Set -
CM80 Extruder Double Screw BarrelUS$ 7,000 - 7,500MOQ: 1 Set
-
65/132 Extrusion Nitrided Screw and BarrelUS$ 3,800 - 4,200MOQ: 1 Set
-
38CrMoAla Conical Twin Nitride Screw Barrel for Plastic MachineUS$ 3,270 - 3,430MOQ: 1 Set
-
Bimetallic/nitride 38CrMoAla Conical Twin Extruder Plastic Machine Barrel and ScrewUS$ 3,000 - 3,200MOQ: 1 Set
Technical specification of extrusion conical screw barrel
| MOQ | 1 set (1 pair of screws and 1 pc barrel) |
| Delivery | 15 days |
Design Details |
Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system
Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system
|
Accessories |
Stop ring+washers to adjust the space between screw and barrel |
Technical Specification |
Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm |

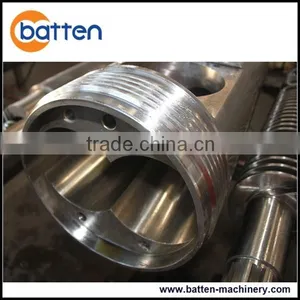

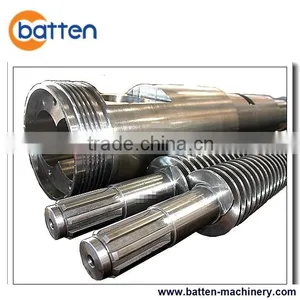

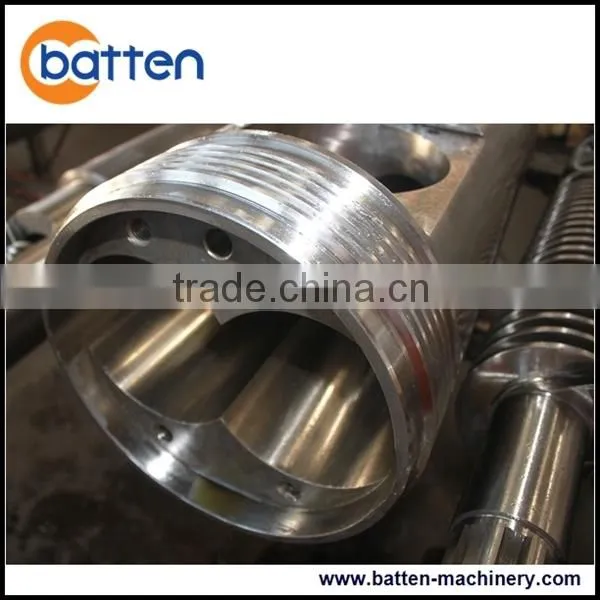

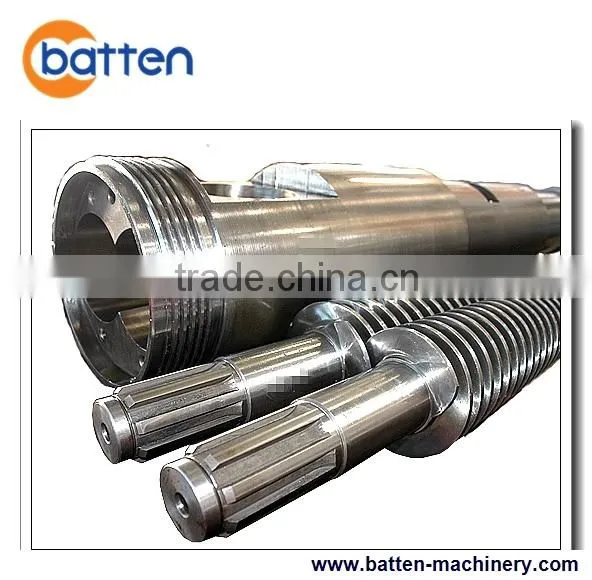

Pictures details of extrusion conical screw barrel
extrusion conical screw barrel production flow
Manufacture information of extrusion conical screw barrel
1.Is Batten a factory or a trading company?
Zhoushan Batten Machinery Technology Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery.
Zhoushan Batten Import and Export Co.,Ltd is a member of Batten Group,specializes in exporting kinds accessory parts of plastics machinery,and annual sales is more then 5 Million US dollar.
2.What's Batten Location?
Pls search on Google map"Laotangshan Tunnel,Cengangzhen,Dinghai,Zhoushan City,Zhejiang Province".There we are.
3.How to go to Batten from other city?
Since there is no train to our city,but you can take a bus.Our bus station name is DINGHAI,ZHOUSHAN CITY.
4.What information should be supplied if we want to buy extrusion conical screw barrel?
Pls kindly tell us the modle of extruder,gearbox nameplate,what plastic product you make.
