Specifications
Welded wire Mesh Machine1.Function:Producing mesh
2.Voltage:380v
3.Current:50Hz
4.Rated capacity:100KVA

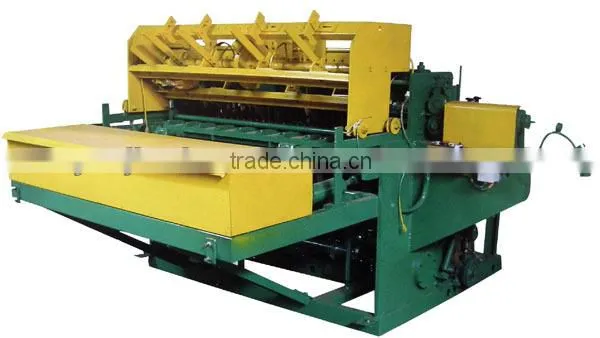

Welded Wire Mesh Machine
This machine adopts PLC program system and synchronous control technology . The welding time and separating welding is controlled by numeric integrated circuit, which is with high control precision and stable function. In order to adapt the capacity of the clients',welding transformers don't work at the same time but press at one time, welding repeatedly.The weft wire and longitude wire should be pre-staightened and pre-cut. The finished product fence panel is smooth,the error of oppsite angle line is small.
Technical Date
| Size of mesh (mm) | 6.35-12.7 (1/4"-1/2") |
| Width (mm) | 914.4-1219.2(12"-48") |
| Diameter of wire (mm) | dia.0.45-dia.1.07 (BWG25-BWG19) |
| Biggest rolled net size (m) | 120m (400') |
| Welding speed (mesh/minute) | 75 (radia) |
| Power |
380/220V 50-60HZ 50KWA x 4 |
| Outside size measurement (mm) | 2350 x 1820 x 1700 |
| Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2". | ||||||||||||||
| ||||||||||||||
| welded wire mesh machine |
| Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh 1/2" to 4". | ||||||||||||||
| ||||||||||||||
| welded wire mesh machine |
| Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh of big width and wire diameter. |

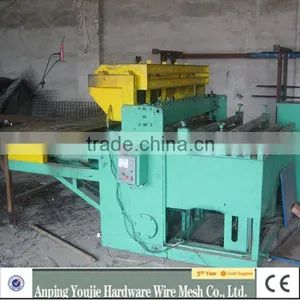

Our Manchine :

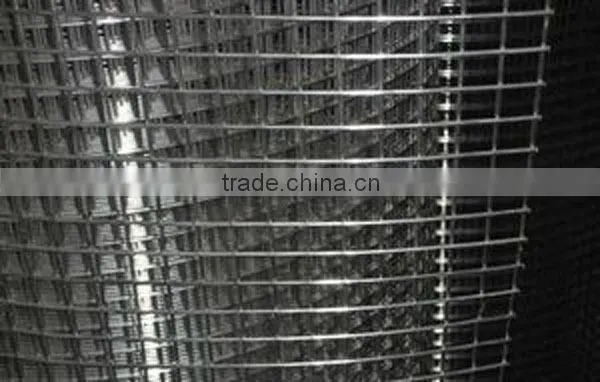

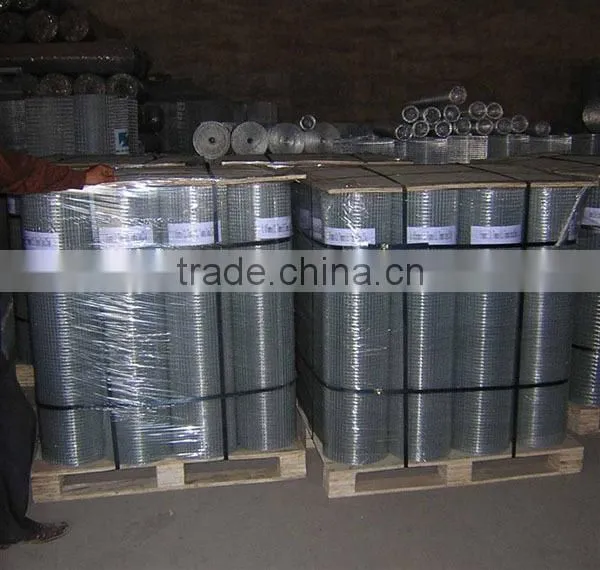

The products that our machine product :
About us :
“Anping Youjie Hardware Wire Mesh Co.,Ltd” is located in Anping County, where is the largest wire mesh distribution and production center of China.and enjoys the reputation of “Chinese Mesh and Netting County". Scientific, rigorous and trustworthy have accompanied by the growth of our corporation since it was founded over twenty years ago. And now “Youjie” has became an integrated enterprise with production, R&D, sales and trade.
We are the manufactory of the Welded wire Mesh Machine . Our goods have the high quantiy and reasonble price. Welcome the Visit us .

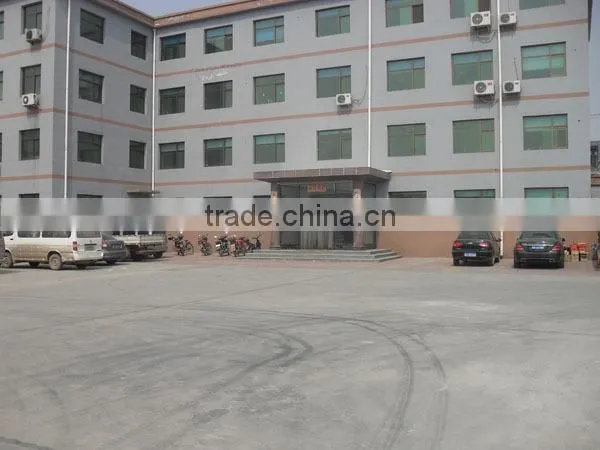

Our Factory:
