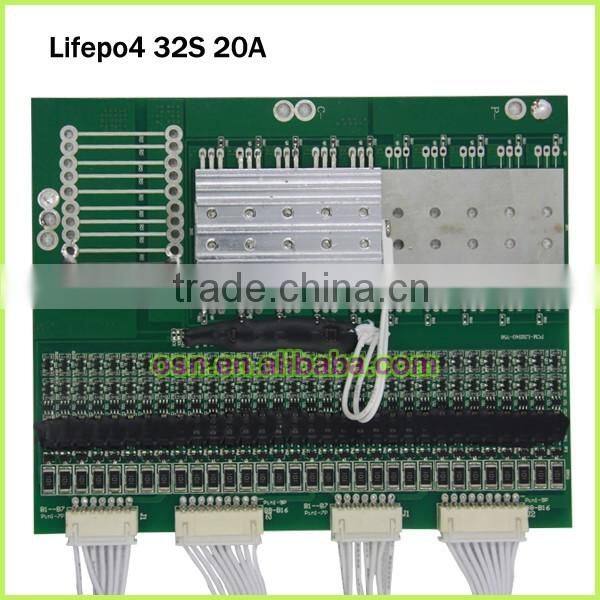

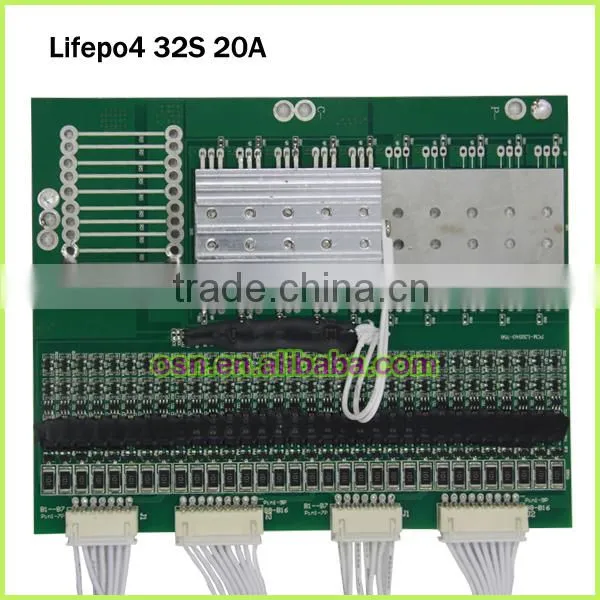

32S /102.4V BMS for LiFePO4 Battery Pack

32S /102.4V BMS for LiFePO4 Battery Pack thumbnail-1
32S /102.4V BMS for LiFePO4 Battery Pack photo-1
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OSN
Model Number:
BMS-L32S2020-756
Contact Supplier Request Quote Chat Now
Shenzhen OSN Power Tech Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OSN
Model Number BMS-L32S2020-756
Composed Type Other
Type Li-Ion
Size L155*W125*10mm
Voltage 96V
Weight 250g
Application Lifepo4 battery packs
Product Description

Applications and Features:
A. Applied to 32-series LiFePO4 battery pack;
B. Full functional w/ overcharge, over-discharge, over current, short circuit protection; dynamic balancing;
C. Battery-specialized IC, stable , low self-consumption;
D. W/temperature control function.


No.
Test   item
Criterion
1
Voltage
Charging voltage
DC:115.2V 3.6V/Cell
Balance voltage for single cell
3.60+0.025V
2
Current
Balance current for single cell
72+10mA
Current consumption for single cell
≤20μA
Maximal continuous Charging current
20A
Maximal continuous Discharging current
20A
3
Over charge Protection
Over charge detection voltage
3.90+0.025V
Over charge detection delay time
0.5—2S
Over charge release voltage
3.80+0.05V
4
Over discharge protection
Over discharge detection voltage
2.00+0.05V
Over discharge detection delay time
10-300mS
Over discharge release voltage
2.30+0.05V
5
Over current protection
Over current detection voltage
0.1+0.02v
Over current detection current
50+10A
Detection delay time
5ms—20mS
Release condition
Cut load, Automatic Recovery
6
Short protection
Detection condition
Exterior short circuit
Detection delay time
200-500us
Release condition
Cut load, Automatic Recovery
7
Resistance
Protection  circuitry (MOSFET)
≤30mΩ
8
Temperature
Operating Temperature Range
-40~+70°C
Storage Temperature Range
-40~+125°C
9
Size
L155*W125*10mm
10
Weight
230g
