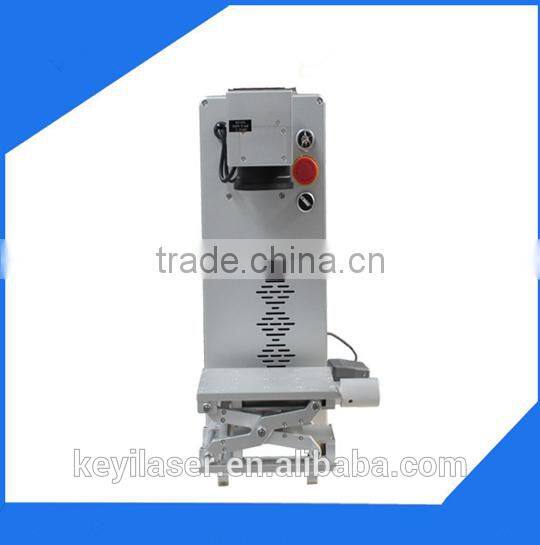

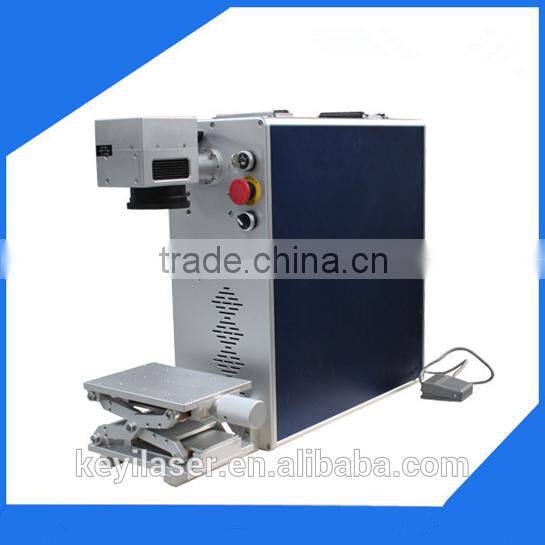

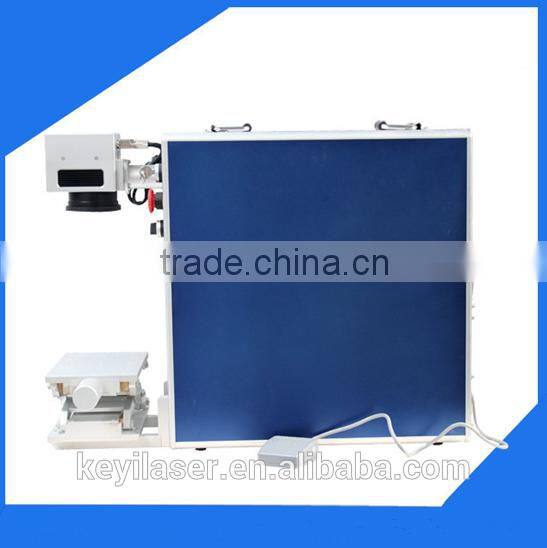

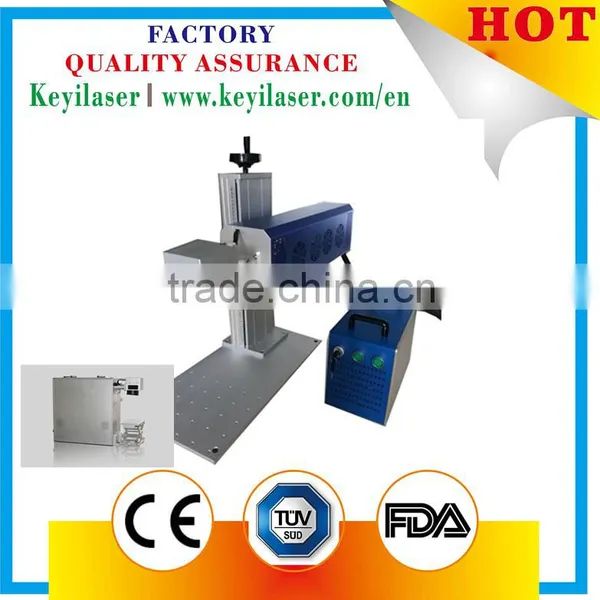

Help Center10W Portable Mini Smallest Fiber Laser Marking Machine
Related Products
-
High Speed Flying Online Fiber Laser Making MachineUS$ 1.00 - 1.00MOQ: 1 Set -
10W Portable Mini Smallest CO2 Laser Marking MachineUS$ 9000.00 - 9000.00MOQ: 1 Set
-
30W Portable Mini Smallest CO2 Laser Marking MachineUS$ 9000.00 - 9000.00MOQ: 1 Set
-
High Speed Flying Online CO2 Laser Making MachineUS$ 9000.00 - 9000.00MOQ: 1 Set
-
3w/5w/7w 355nm UV Laser Marking MachineUS$ 1.00 - 1.00MOQ: 1 Set
Introduction
Fiber laser marking machine is developed and produced by us with the world newest laser technology.
It belongs to the third generation system of laser technology .
Adopting fiber laser output the laser ,then using ultra high-speed scanning galvanometer system to marking.
The critical component use long lifetime stable device. It has lots of advantages : novel appearance,unique structure,convenient operation,high modulating frequency,fast marking speed,high precision,stable
performance .It can widely used in various metal and non-metallic surface to output the permanent mark.
Main Features
- High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
- High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
- High speed 2-3 times over than traditional diode pumped marking machine.
- Air-cooling smart machine size!
- Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).
- Suitable for various fiber laser generators.
Technical Parameter
Laser Power |
10W |
||
Laser Wave length |
1064nm |
||
Q-frequency |
20KHz~30KHz |
||
Divergence |
0.3mard |
||
Marking Range |
110*110mm 175*175mm |
||
Minimum Line Width |
0.02mm |
||
Minimum Character |
0.15mm |
||
Marking Depth |
0~0.5mm |
||
Engraving Line Speed |
≤7000mm/s |
||
Repeatability Accuracy |
±0.001mm |
||
Beam Quality |
M2:1.2~1.8 |
||
Marking Format |
Graphics,Text,Bar Codes,Two-dimensional Code,
Automatically Marking theDate,Batch Number,
Serial Number,Frequency,etc.
|
||
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
||
Working Voltage |
220V±10%/50Hz/4A |
||
Unit Power |
<0.5kw |
||
Use of the Environment |
Clean and Dust Free or Dust less |
||
Working Condition:Humidity |
5%-75%,Free of Condensed Water |
||
Laser Module Life |
>100000hours |
||
Application Field
- Electrical Engineering and Electrical part and component
- Mobile (Cover,battery,keyboard, I Phone Case)
- Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
- Building materials,PVC pipe
- Car motor car spare part ,Insturment and meters and cutting tool
- Plastic case,aviation and aerospace,
- Military product,hardware fitting and accessory,sanitary appliance
- Food and beverage ,Medicine package and medical instrument,solar PV industry

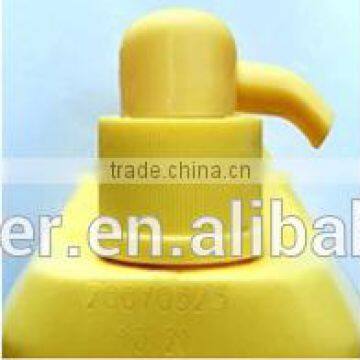

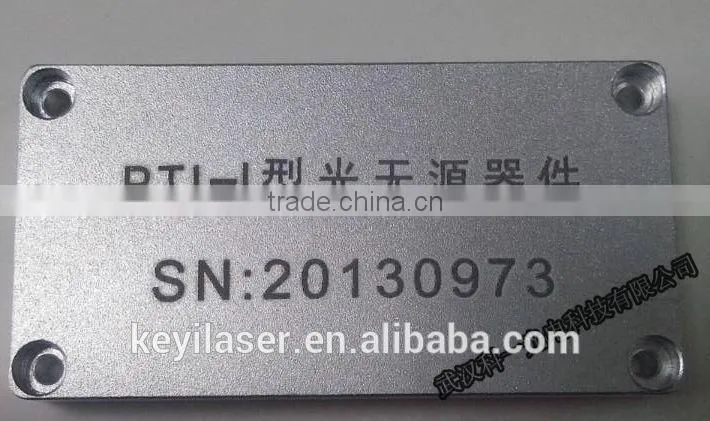

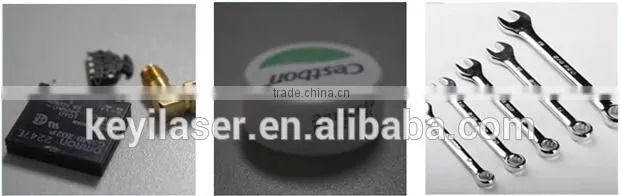

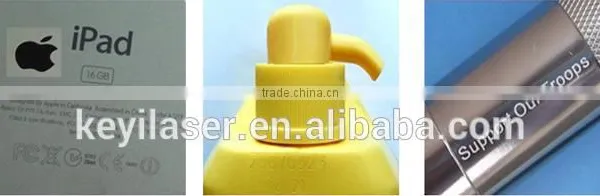

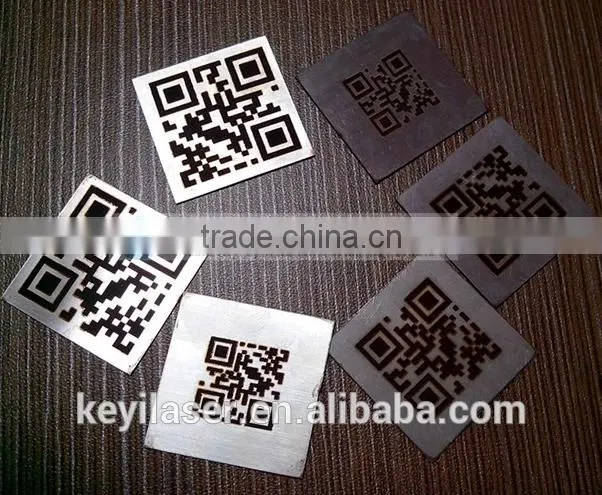

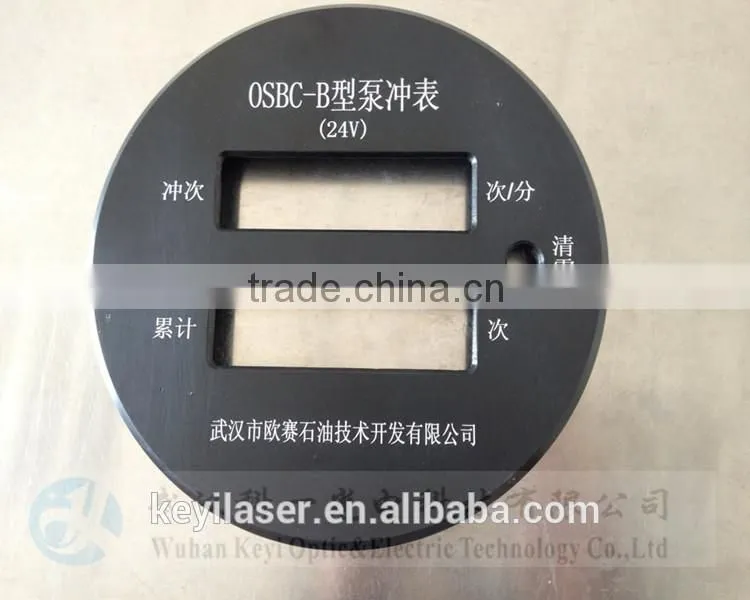

Sample Show
Packaging & Shipping
1. Keyi Optic & Electric products packaging are in line with the international air and sea transport packaging standards;
2. With sturdy wooden or iron box packing for long-distance transport, protection against the water and rust and shock and rough handling, for each part of the overall lifting equipment according to standard packaging;
3.Every package has a detailed packing list;
4. We will delivery within 7-10 day after payment ;
Service Commitment
1. Keyi Optic & Electric provide two years free warranty and life-long maintenance. We provide spare parts and service free during warranty time. After the warranty period shall charge only when maintenance, continue to provide a broad and favorable technical support and spare parts supply.
2. Keyi Optic & Electric will upgrade software free for our products.
3. Keyi Optic & Electric received your repairing call, our after-sales engineers will give a clear answer within one hour, arrived at the scene within 24 hours, to ensure that users do not delay production.
4. Welcome to contact me for details, 24 hours online.
whatsapp:0086-13971333671 Tel.:0086-27-65027399
