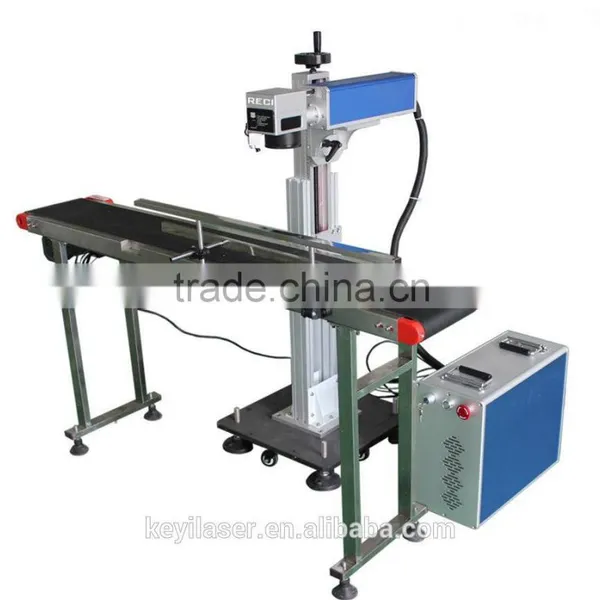

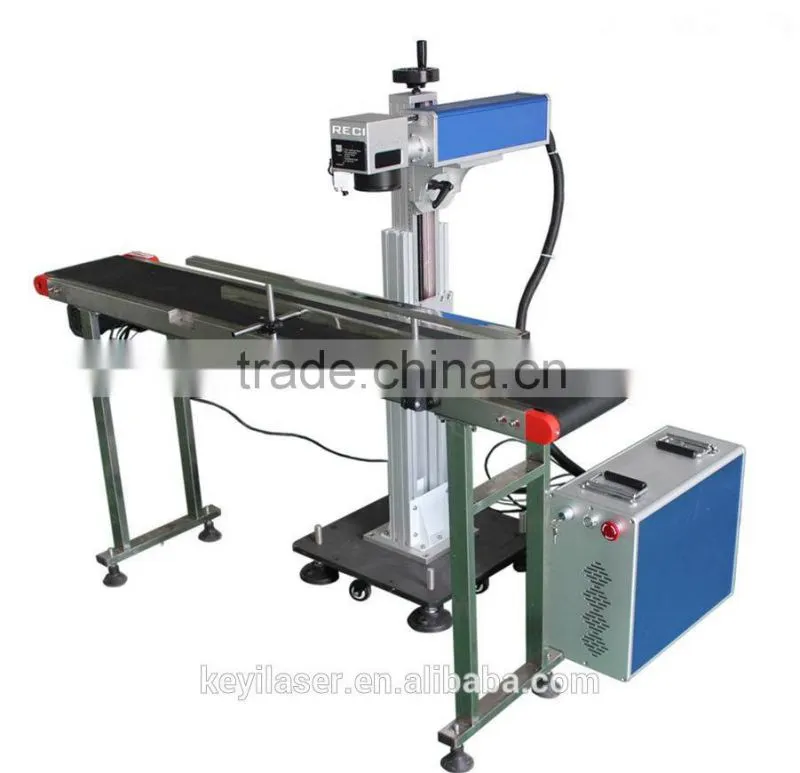

Help CenterHigh Speed Flying Online Fiber Laser Making Machine
Related Products
-
10W Portable Mini Smallest CO2 Laser Marking MachineUS$ 9000.00 - 9000.00MOQ: 1 Set -
30W Portable Mini Smallest CO2 Laser Marking MachineUS$ 9000.00 - 9000.00MOQ: 1 Set
-
High Speed Flying Online CO2 Laser Making MachineUS$ 9000.00 - 9000.00MOQ: 1 Set
-
3w/5w/7w 355nm UV Laser Marking MachineUS$ 1.00 - 1.00MOQ: 1 Set
-
Portable Mini Smallest UV Laser Marking MachineUS$ 1.00 - 1.00MOQ: 1 Set
Product Description
Product Description
1. Compactness: With the unique all built-in integration design, the optical, electronic and mechanical components are highly integrated, so that the whole machine weighs only 16kg. It can be called the smallest fiber laser marker in the world. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.
2. High Durability: The laser module has a long service life (greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).
3. Low consumption: Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power of 200W.
4. High speed: It applies imported high-speed galvanometer scanning head, which has greatly reduced the latency and increased the marking speed, which is 3 to 10 times of the first generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material).
Main Features
1. High electro-optic conversion efficiency;
2. Low power consumption, stability laser output;
3. High quality beam, consumable free, small in size;
4. Smaller output laser beam, finer marking line, suitable high precision marking.

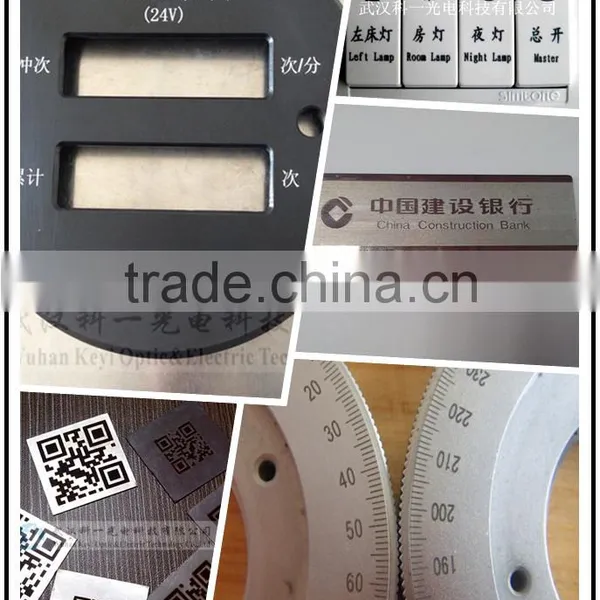

Applicable Material
Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

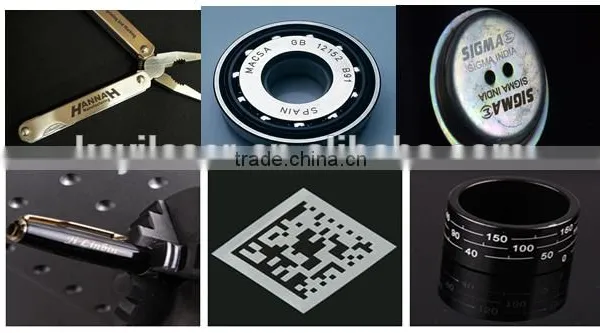

Applicable Industry
1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc
2. Instrument: Panel Board, Nameplates, Precision equipment, etc.
3. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
4. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
Technical Parameters
Laser Power |
10W/20W/50W |
Laser wavelength |
1064nm |
Repeating Frequency |
20-80KHZ |
Beam Quality |
M2<1.2 |
Marking Range |
110mm x 110mm(Optional) |
Marking Depth |
0.01-0.5mm(depend on material) |
Marking Speed |
≤7000mm/s |
Min. line Width |
0.01mm |
Min. Character |
0.15mm |
Repeatability Accuracy |
±0.003mm |
Power Consumption |
800W |
Dimensional |
1110mm x 860mm x 1520mm |
Weight |
≤100kg |
Operating System |
Win98/Win2000/WinXP/Win 7 |
Cooling system |
Air cooling |
Laser Type |
Fiber Laser |
Graphic Format Supported |
PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
Power Supply |
220V±10% / 50-60Hz |
Packaging & Shipping
1. Keyi Optic & Electric products packaging are in line with the international air and sea transport packaging standards;
2. With sturdy wooden or iron box packing for long-distance transport, protection against the water and rust and shock and rough handling, for each part of the overall lifting equipment according to standard packaging;
3.Every package has a detailed packing list;
4. We will delivery within 7-10 day after payment ;
Service Commitment
1. Keyi Optic & Electric provide two years free warranty and life-long maintenance. We provide spare parts and service free during warranty time. After the warranty period shall charge only when maintenance, continue to provide a broad and favorable technical support and spare parts supply.
2. Keyi Optic & Electric will upgrade software free for our products.
3. Keyi Optic & Electric received your repairing call, our after-sales engineers will give a clear answer within one hour, arrived at the scene within 24 hours, to ensure that users do not delay production.
4. Welcome to contact me for details, 24 hours online.
whatsapp:0086-13971333671 Tel.:0086-27-65027399
