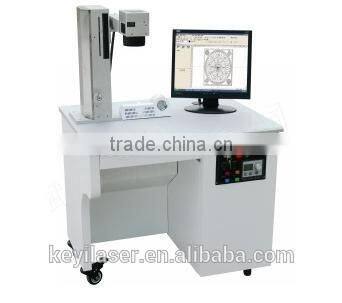

Water Cooling Dioded End-pumped Laser Marking Machine New
- 50 Set / Sets per Month
- Wuhan/Shenzhen/Shanghai
- T/T Credit Card
- Jinan XT LASER+Attractive & hot sale fiber laser marking machine
- Jinan XT LASER+Fiber Laser Marking Machine For Stainless steel/Copper
- Jinan XT LASER+fiber laser marking machine -Jinan XT LASERbrand
- Jinan XT LASER+Hot sale fiber laser marking machine!
- 0.2-1.2mm gold silver laser cutting machine | fiber laser marking machine
- 1mm gold silver laser cutting machine | 30W 50W fiber laser marking machine
Product Details
Condition: | New | Laser Type: | Diode | CNC or Not: | Yes |
Cooling Mode: | Water Cooling | Control Software: | Professional Control Software | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
Working Accuracy: | 0.01mm | Place of Origin: | Hubei, China | Brand Name: | Keyi |
Model Number: | KY-M-EP10/20/25 | Power(W): | 10W/20W/25w | Certification: | ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Characteristic
1.Overall sealing the optical part, optical parts protected without pollution, laser cast aluminum structure, ensure good mechanical stability, compact structure.
2.Adopted with advanced end-pumped mode, to make the output laser mode is good, the M2<1.3. With a short pulse width and high peak power.
3.Installation and commissioning of all lasers in clean room, and passed aging test, to ensure it is more stable and reliable.
4.The optical-optical conversion efficiency is up to 50%, which makes the power consumption lower, laser can be air cooled.
Parameter
Wavelength | 1064nm(Infrared) | 532nm(Green) | 355nm(UV) | ||
Model | KY-M-EP10 | KY-M-EP25 | KY-M-EP6 | KY-M-EP20 | KY-M-EPU8 |
Output power | 10W | 25W | 6W | 20W | 8W |
Marking size | 110mm×110mm | ||||
Marking speed | 400 charaters/s | ||||
Min.marking line | 0.02mm | ||||
Power stability | ±1% | ||||
M² | <1.3 | ||||
Frequency | 0-200KHz | ||||
Cooling | Air/Water cooling | ||||
Power consumption | <1KW |
Optional Parts
1. Rotary axis for marking
2. Fly marking
3. Combine with factory automation
4. Protection device
5. Customize designing
Packaging & Shipping
1. Keyi Optic & Electric products packaging are in line with the international air and sea transport packaging standards;
2. With sturdy wooden or iron box packing for long-distance transport, protection against the water and rust and shock and rough handling, for each part of the overall lifting equipment according to standard packaging;
3.Every package has a detailed packing list;
4. We will delivery within 7-10 day after payment ;
Service Commitment
1. Keyi Optic & Electric provide two years free warranty and life-long maintenance. We provide spare parts and service free during warranty time. After the warranty period shall charge only when maintenance, continue to provide a broad and favorable technical support and spare parts supply.
2. Keyi Optic & Electric will upgrade software free for our products.
3. Keyi Optic & Electric received your repairing call, our after-sales engineers will give a clear answer within one hour, arrived at the scene within 24 hours, to ensure that users do not delay production.
4. Welcome to contact me for details, 24 hours online.
