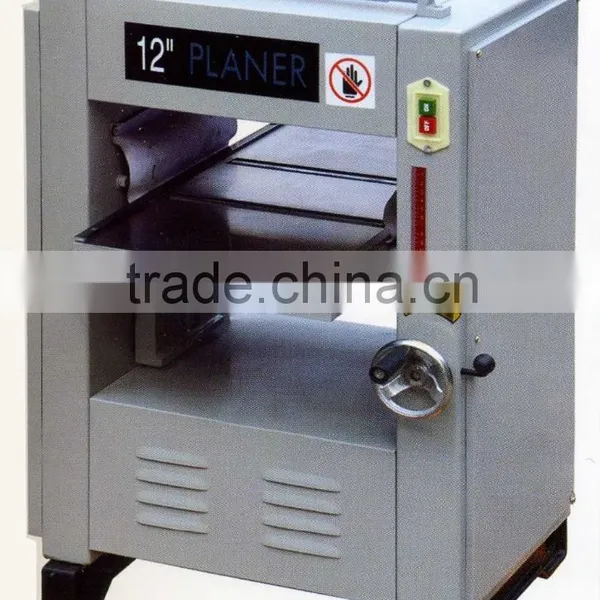

Wood thickness planer machine is fit for the production of square timber and plank wood.
Parameter:
Type |
MB103 |
MB104 |
MB105 |
MB106 |
MB107 |
Max. planning width |
300mm |
400mm |
500mm |
600mm |
700mm |
Max. thickness of planning workpiece |
120mm |
120mm |
120mm |
120mm |
120mm |
Min. thickness of planning workpiece |
10mm |
10mm |
10mm |
10mm |
10mm |
Min. length of planning workpiece |
200mm |
200mm |
200mm |
200mm |
200mm |
Feed speed |
13.5r/min |
13.5r/min |
13.5r/min |
13.5r/min |
13.5r/min |
Max. planning output |
4mm |
4mm |
4mm |
4mm |
4mm |
Planning circle diameter of blade axle |
77mm |
77mm |
77mm |
77mm |
77mm |
Spindle speed |
4500r/min |
4500r/min |
4500r/min |
4500r/min |
4500r/min |
Motor power |
1.5kw |
2.2kw |
2.2kw |
3kw |
4kw |
Overall Dimensions |
600x650x850mm |
700x650x850mm |
700x650x850mm |
700x650x850mm |
700x650x850mm |
Weight |
135kg |
160kg |
178kg |
195kg |
213kg |
Packing and delivery
Casting workshop
Technical team
Send Inquiry to This Supplier
