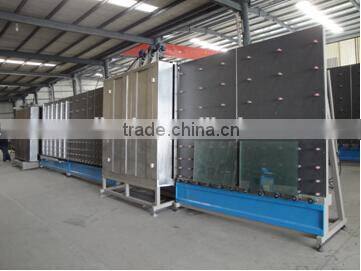

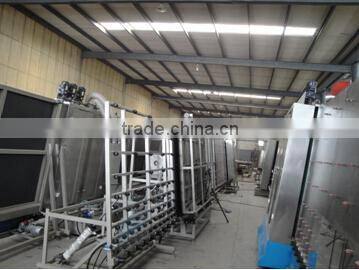

Vertical Insulating Glass Production Line

Specifications

vertical insulating glass production line

Detailed Product Description

Vertical insulating glass production line

Hydraulic plate press

Low-e glass available

Double and triple insulating glass available

Step insulating glass available

Gear and chain structure for panel press

Brief Introduction:

EL1600P insulating glass production line has two work models, manual operation and automatic operation. These two work models can be achieved by switching over the control panel

EL1600P Multi-function insulating glass production line include feeding section, glass washing-drying section, aluminium spacer install section, light-inspection section, panel press section and out load section

Technical characteristic

PLC Control

High speed conveyance (40m/min) controlled by PLC frequency control

Separate controller of the feeding section

Low-E glass automatic recognition

Stainless steel washing-drying section

3 pairs of soft nylon brushes

2 separate water circuits

Water tank and pipe feature easy washing

Distance between the brushes is adjustable

Easy brush roller adjustment

High speed washing

Wringing roller

Low noise and complete closed drying room

Infinite variable speed brushes

Rear and front glass support

Step IG unit available

Hydraulic press plate

Gear and chain structure for panel press (synchronous structure like Europe machine)

No breaking glass for panel press

Automatic alarm of press plate repair (open and close)

Automatic output statistics

Main technical parameter:

Total power: 13.12KW

Glass washing thickness: 3mm-12mm

Insulating glass thickness: 12-40mm

Min. glass size: 540mm*200mm

Max. glass size:1600mm*2200mm

Washing speed: 0-8m/min

Working speed: 0-45m/min

Quality of water: conductivity≤50μs/cm

Air source pressure: 0.8m³/min(1Mpa)

Overall dimensions: 14000x2200x2550mm (LxWxH)
