Specifications
laser metal cutting machine1.High speed and precise cutting
2.Dynamic focusing system
3.Cutting surface is smooth

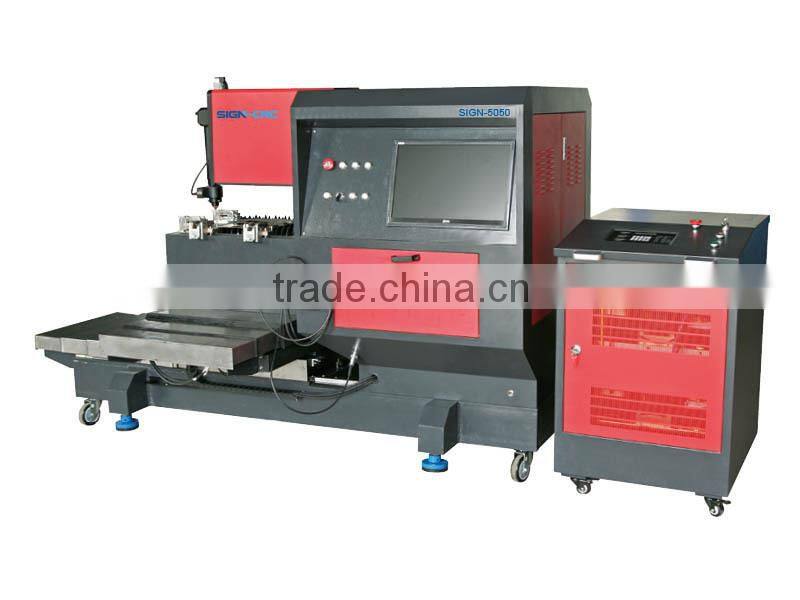

Look !!! Cost effective laser metal cutting machine From Jinan Sign CNC SIGN-5050 :

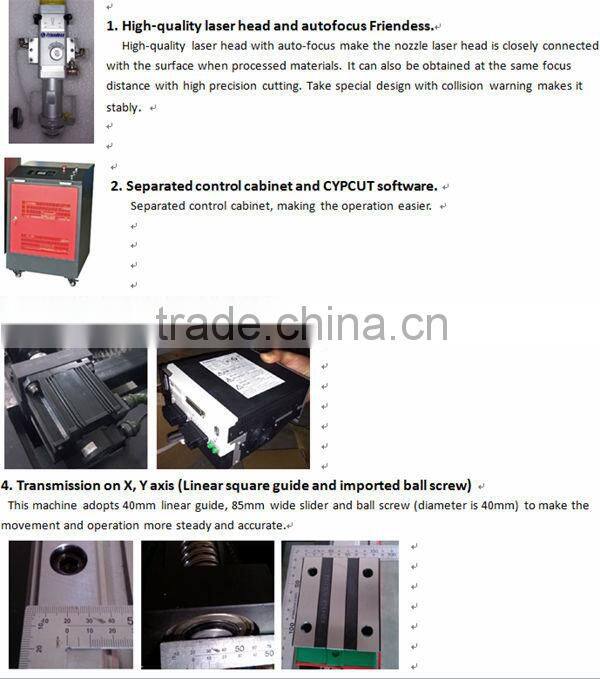

Machine Features:
1. SIGN-YAG500W smaller cutting line, high precision.
2. Auto focus laser cutting head with 'LaserMech' UAS, guarantee the right focus length.
3. High precision ball screw with a perfect fuel injection systems, make sure a continuity and fluency transmisison.
4. Japanese servo motor make sure the cutting stable and cutting speed fast.

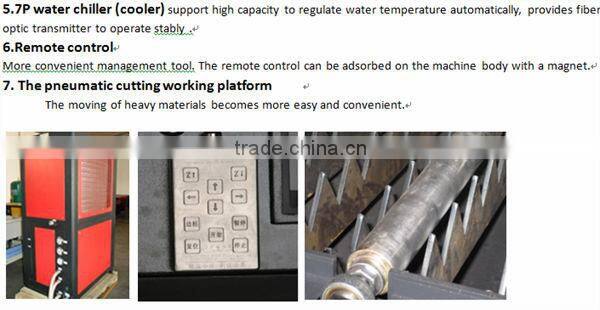

5. Water chiller high capacity provides stability during long-term operation.
6. Separate control box and DSP control makes it easier to manage the machine.
Applicable Industries:

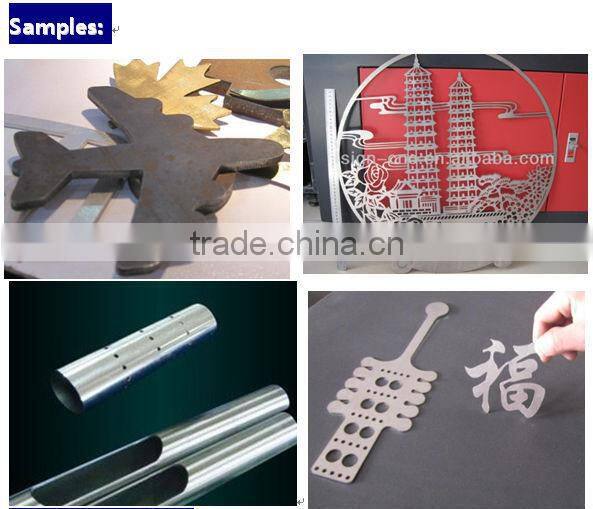

Applied to electronic components , signage, tiny precision accessories perforated tube fittings, square profile processing and other high precision industry.
Applicable Materials:
Stainless steel, carbon steel, brass, aluminum, and other metal precise cutting, suitable for aerospace technology, plane, rocket, robot, elevator,
Technical Parameters:
Machine Model |
YAG500W SIGN-5050 |
Max Cutting area |
500*500mm |
Cutting thickness |
0.2-8mm |
Laser wavelength |
1064nm |
Laser type |
YAG |
Laser rated average power |
300-500W |
Power device injected power |
18KW |
Chiller |
7HP |
Transmission |
Imported high precision ball screw |
Driving way |
Imported servo motor |
X/Y Axis location accuracy |
0.05mm |
X/Y Axis repeat location accuracy |
0.05mm |
X/Y Axis moving speed Max |
30m/min |
Max Cutting speed |
2100mm/min |
Min Cutting line |
0.2mm |
Advantage:
Compared with traditional way of metal cutting, laser cutting has the following advantages:
1). High precision: applicable for high-precision demanding parts cutting and precise parts cutting for arts and crafts.
2). High speed: 100 times faster than linear cutting.
3). Small heat affected zone, not easy to distort. Cutting edges are very smooth, no need for further processing.
4). Low usage cost: only around US$2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machines
5). Stable performance makes sure continuous running. Solid YAG Laser is one of the most stable, mature products in laser field.
Machine packing list
Photo |
Name |
Size, m |
Volume m3 |
Number |
|
Thewhole(laser unit) |
4.26*2.26*1.82 |
17.52 |
1 |
|
Control cabinet
|
1.08*1.15*1.52 |
1.89 |
1 |
|

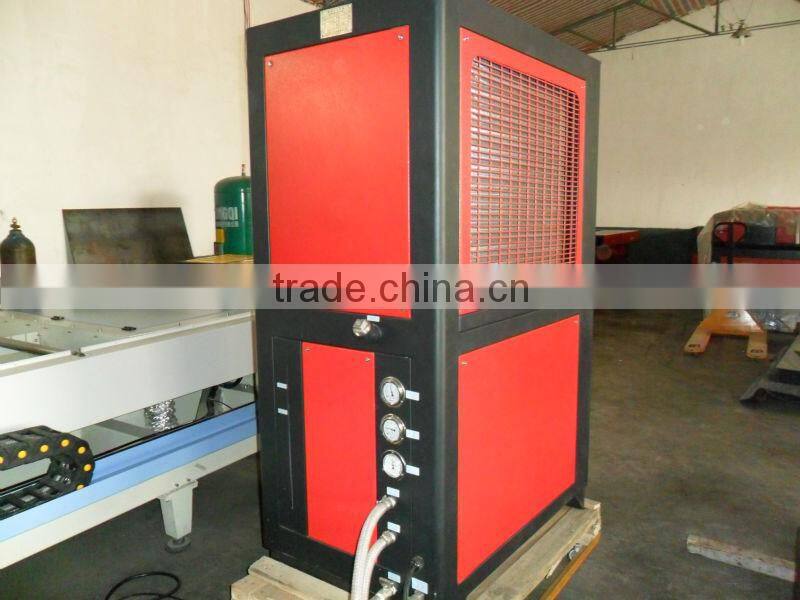

Chiller |
1.98*1.3*0.83 |
2.14 |
1 |
|

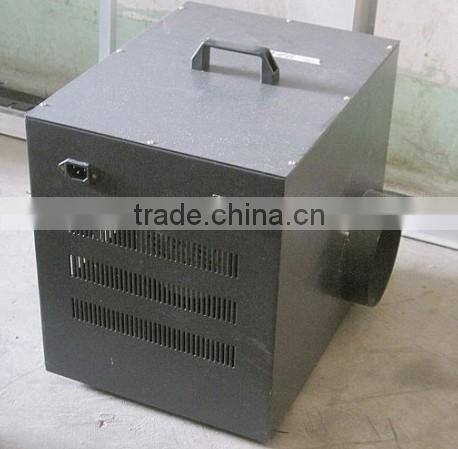

DustFan |
- |
- |
2 |
|

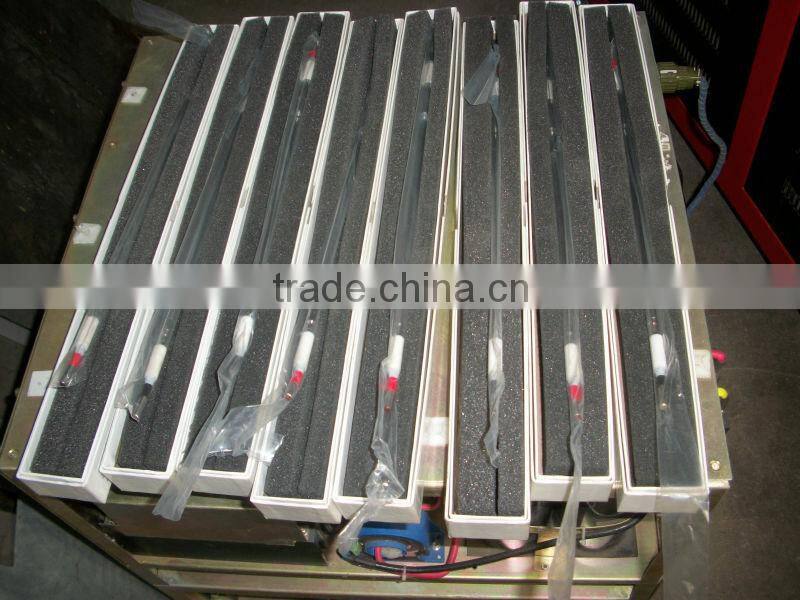

xenon lamp |
- |
- |
6 |
|

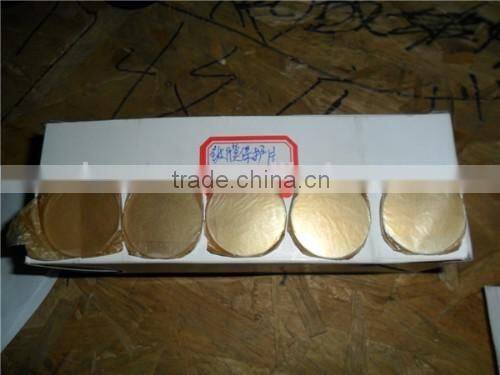

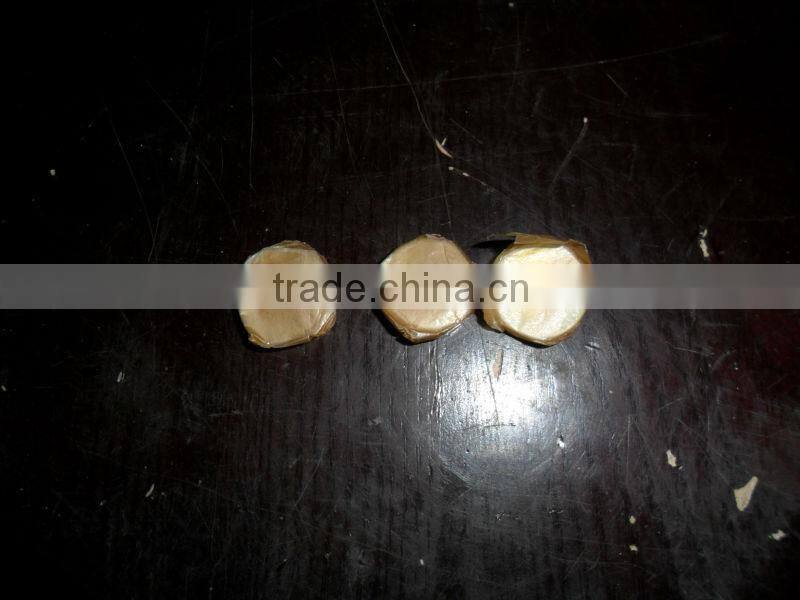

protection mirror |
- |
- |
5 |
expander mirror |
2 |
|||
Focusing mirror |
2 |
|||
|
full-reflecting mirror |
- |
- |
2 |
half-reflectingmirror |
2 |
|||
45 degree reflecting mirror |
2 |
|||
|

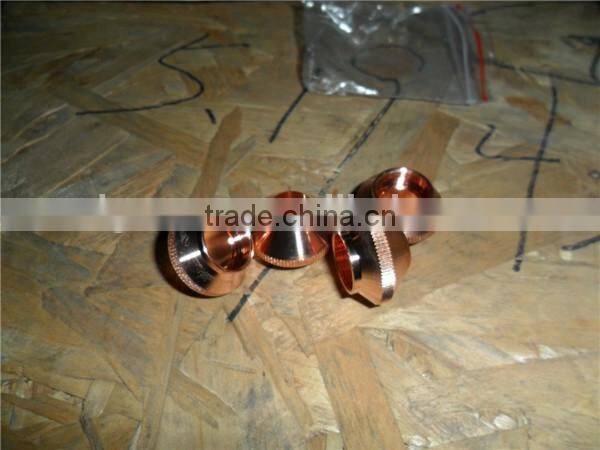

nozzle |
- |
- |
2 |
|

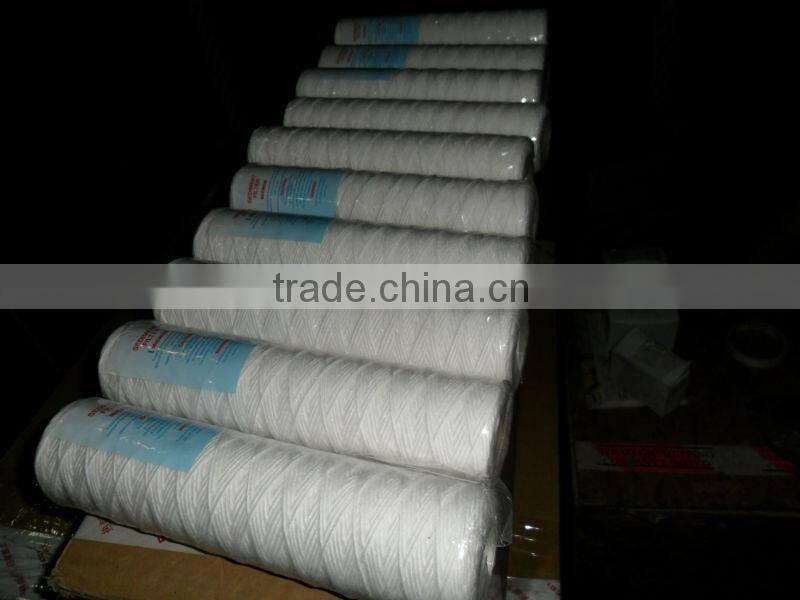

Filter Chiller
|
- |
- |
4 |
Machine configuration:
Packing:
Our Services:
1.Two year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
About Us:
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
FAQ
1.Which one should I use for metal ? YAG or Fiber?
Most metals are highly reflective and therefore, an Nd:YAG or Fiber laser would be most suited. The wavelength being much shorter means there will be less reflection of the beam on the surface, therefore less loss of energy and consequently easier working of the metal. The metal absorbs more of the light energy that changes its physical properties.
2.What difference does this make?
These wavelengths determine which laser should be used for each application, as the material to be marked will have different absorption capabilities (of the light at different wavelengths). If a material can absorb the light, then it can be affected by it.
