Specific advantages:
1. Transmission accuracy: positioning accuracy 0.05mm, Repeatability 0.015 mm
2. Cut small gap: a laser beam is focused to a small spot, so the focus to achieve high power density, the material is heated to melt level quickly. With the beam and the material relative linear movement to achieve continuous cutting.
3.Cutting speed: cutting speeds up to 6m/min, maximum positioning speed up 15-20m/min.
4. Cutting quality: Cutting heat affected is very small, basically no thermal
5. Deformation of the workpiece, completely avoid the formation of collapse when punching material side slit generally does not require secondary processing.
Machine Application:
Materials: stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized
iron, galvanized sheet, aluminum, aluminum, copper, brass, bronze, gold, silver, titanium
plates, metal sheets, metal plates, metal tubes and pipes, etc.
Industries: advertising signs, metal letters, sheet metal processing, metals components and
parts, ironware, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal
artwork, elevator panel
Samples:
Technical parameter
NO. |
Model |
SIGN 1325-YAG laser metal cutting machine price |
1 |
Working area |
1300x2500mm |
2 |
Laser medium |
YAG |
3 |
Laser power |
500w |
4 |
Laser wave length |
1064nm |
5 |
Laser pulse frequency |
0.1-500Hz |
6 |
Width of pulse |
0.2- 20ms |
7 |
Min line width |
≤0.15mm |
8 |
Position accuracy |
0.03mm/m |
9 |
Repetition accuracy |
0.02mm/m |
10 |
Focus method |
Following and automatic adjust focus |
11 |
Guide rail |
Hiwin from Taiwan |
12 |
Transmission method |
Ball screw from Germany |
13 |
Drive system |
Servo motor and drivers |
14 |
Cooling system |
7p water chiller |
15 |
Control system |
Motion control card+PC |
16 |
Control software |
Software of RF Laser |
17 |
Graphic format support |
BMP,HPGL,PLT,DST and AL,etc |
18 |
Working environment |
Temperature:0-45°C, |
19 |
Equipment power |
0-20kw |
20 |
Power supply |
380v/50Hz |
21 |
Packaging size |
2300x2100x1500mm |
detail:
We are the professional laser machine supplier and have 5 years’ rich experience in this field.
SIGN CNC is the famous brand in China, We are the manufacturer and have own factory, We offer Laser Engraving Machine, Laser Cutting Machine, Stone Engraving Machine, Crafts Engraving Machine,Woodworking Engraving Machine, Advertising Engraving Machine, Laser Marking Machine, and Plasma Cutting Machine. Our machines have already found a good sale in Europe and all over the world. If necessary, you can visit to our factory, we will give you a warm welcome.
We hope we can establish commercial partner in the near future.
(1).This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.

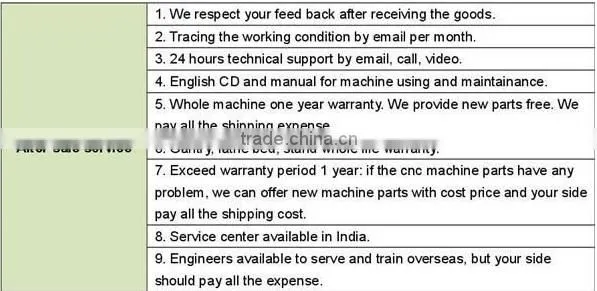

(2).If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
