Wooden door engraving machine/cnc router wood furniture making
1. CNC Router Features

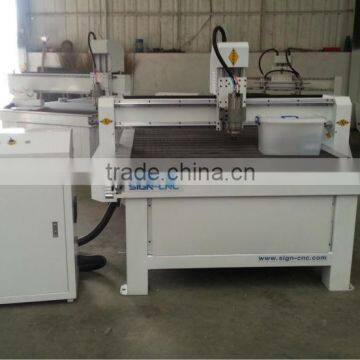

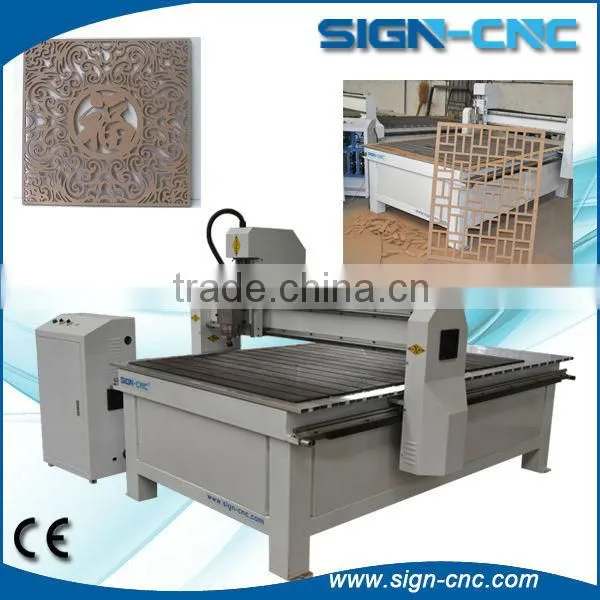

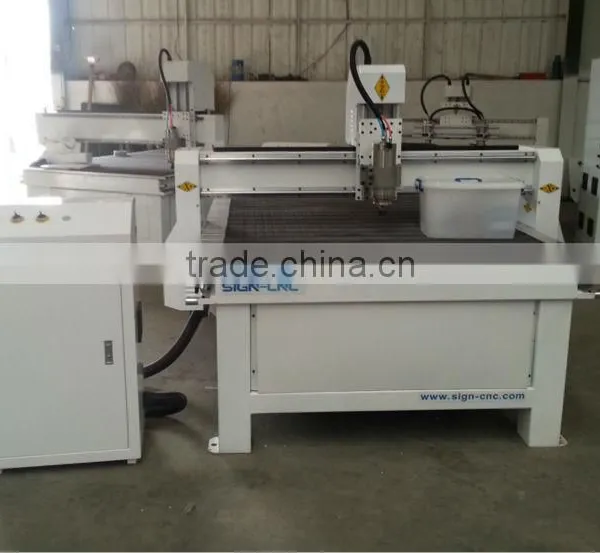

1. SIGN-1325 type engraving machine is a highly cost-effective generic machine, the main
parts are adopted imported or joint venture brand accessorries
2. T-slot table, high power can sorb different sizes materials.
3. High speed, high efficiency, engraving speed can be up to 18 m / min or more.
Smooth bottom and clear contour.
4.NC-studio control system,Artcam design software
5.Option dust collector equipped in machine,keep the working table clean enough.
6. Besides, other variety of models like Sign-6090,Sign-1312, Sign-1318,Sign-1530, Sign-2030,
Sign-2040 are available to choose.

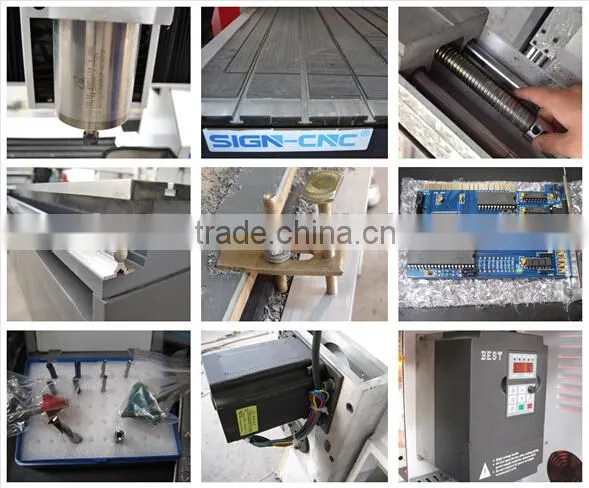

standard part

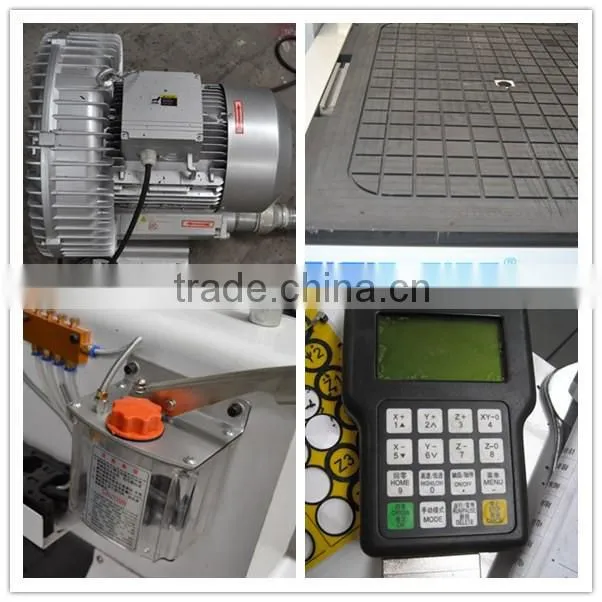

optional part

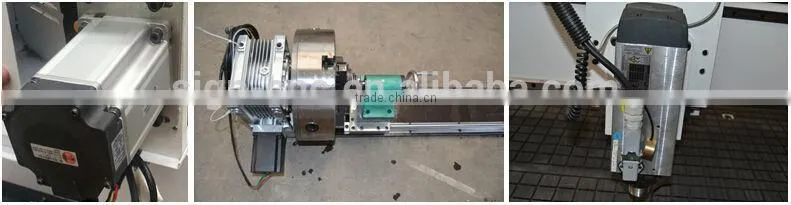

1.Vacuum table and vaccum pump,use for 3d relief engraving ,more conveninet
2.Oil injector ,use for ensure good perform for guide rail and rack
3. DSP control panel,use for offline control machine
4. Servo motor is optional.we have chinese servo and Janpan servo for choose.
5. Rotary device for cylindrical workpieces engraving .
6. Air cooling spindle is option.
2.Technical Parameters
Model |
SIGN 1325 |
X,Y,Z Working Area |
1300x2500x150mm |
Table Size |
1300*2500mm |
Z feed Height |
150mm (200mm / 300mm heighten Gantry optional) |
Working delicasy |
0.01-0.025mm |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
Frame |
steel tube structure |
X, Z Structure |
Round orbit and ball screw |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
Power (not include the spindle) |
2.0KW |
Table surface |
vacuum table |
Max. power Consumption |
3KW |
Max.Rapid Travel Rate |
33000mm/min |
Max.Working Speed |
25000mm/min |
Spindle Speed |
6000-24000RPM |
Drive Motors |
Stepper system |
Working Voltage |
AC220V/50/60Hz |
Command Language |
G code |
Control System: |
DSP control system |
X,Y Resolution |
<0.01mm |
Surrounding for software |
Windows98/2000/xp |
Running Environment |
Temperature: 0-45°C Relative humidity: 30%-75% |

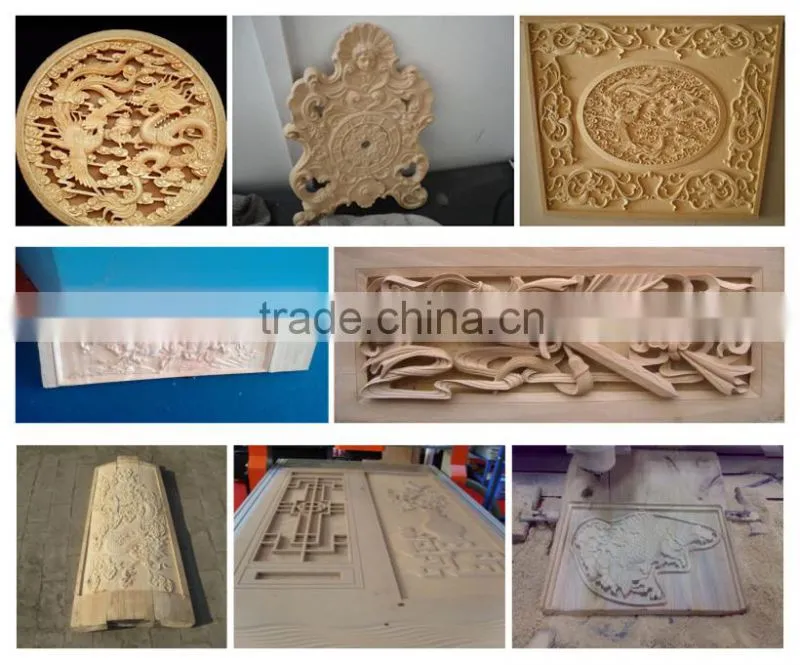

3.Applications
1.Woodworking:wooden door and furniture,windows,tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc
4.Machine Samples
1.Offering the specification of the machine ,1 years warranty

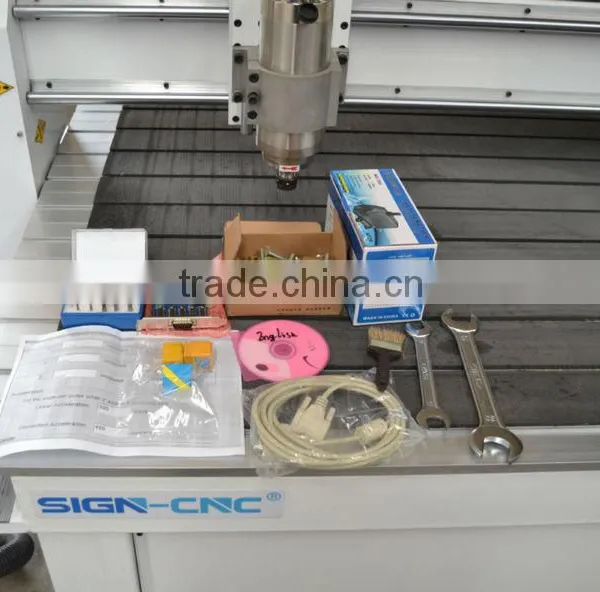

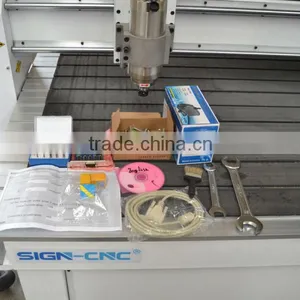

2.English software, user manual and operation CD
3.24 hours technical support by e-mail, calling service If you have any problems ,we will within 12 hours to solve it .
4.If you need any component of the machine later ,we will provide the best price for you
5.7working days to produce the machine ,in the meanwhile , we will report the production process in time.
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further information such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.when is the time of delivery?
A:7-15 working days of the machine production.
