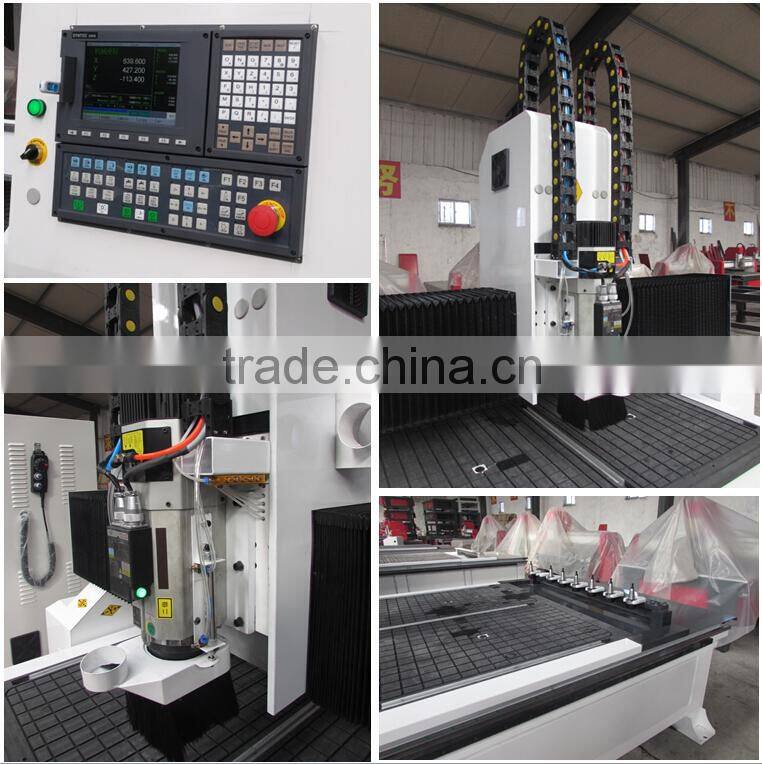

1300*2500mm CNC Wood Router Machine for engraving and cutting wood door, MDF, wood cabinet
Wood CNC Router 1325 ATC Description:
1. High tachnology control system Tiwan SYNTEC.
2. ATC means automatic tool change. 8 Piece cutter automatic change. These cutter straight-line arrangement in the side of the machine. They can also be installed in the rear. Just dependent on your hobby.
3. With 9.0kw HQD air cooling spindle power is mainly applied in woodworking industry, furniture industry for furniture decoration, wooden door and window frame processing, and wooden handcraft making industry, manufacturing sewing machine table and cabinet panels, etc.
4. Our Wood CNC Router are not exclusively applicable for wood engraving, wood cutting; but also can be sued for engraving on Acrylic Engraving, Acrylic Cutting, PVC Engraving, PVC Cutting, Stone Engraving, Metal Engraving, Metal Cutting, etc.
ATC Wood CNC Router 1325 Technical Parameter:
Model |
SIGN-1325 |
X, Y Working size |
1300*2500mm |
Z feed Height |
200mm (300mm heighten Gantry optional) |

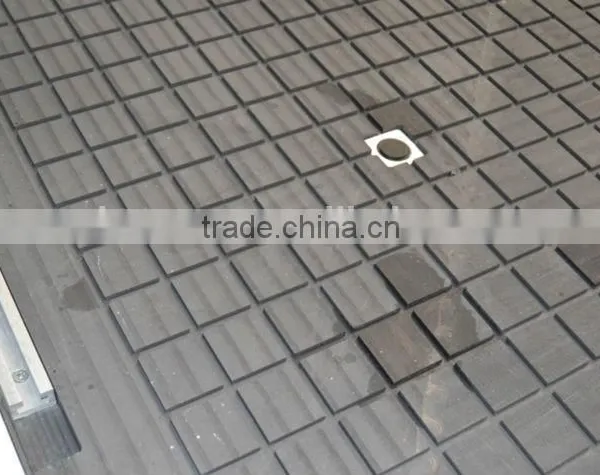

Table Surface |
Vacuum and T-slot Combined |
X, Y Structure |
Rack and Pinion Drive, Hiwin Linear Square Guide Rail |
Z Structure |
Hiwin Linear Square Guide Rail and Ball Screw |
Max. Power Consumption |
(Without spindle) 2.0Kw |
Max. Rapid Travel Rate |
33000mm/min |
Max. Working Speed |
25000mm/min |
Spindle Power |
5.5 KW air cooling spindle |
Spindle Speed |
0-24000RPM |
Drive Motors |
Servo |
Working Voltage: |
AC220V/50/60Hz |
Command Language |
G code |
Control System |
SYNTEC |
X,Y,Z repositioning Accuracy |
±0.01mm |
X,Y Resolution |
<0.01mm |
Software |
Artcam |
Running Temperature |
0 degree - 45 degree |
Relative Humidity |
30% - 75% |
Optional Parts |
Air cooling spindle or Water cooling spindle Rotary system, Mist-cooling system Panasonic Servo motors |
Machine components
1. steel lathe bed structuer
2. Italian HSD 9kw air cooling spindle power
3. Taiwan Syntec control system
4. Domestic leadshine servo motor and driver
5. Taiwan HIWIN square rail

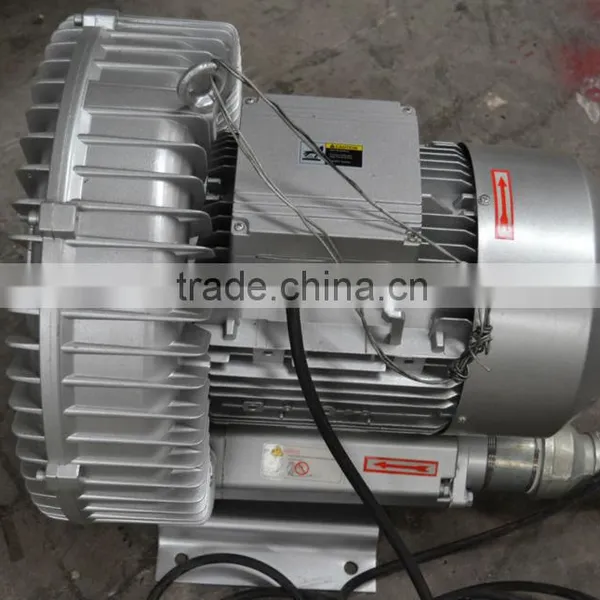

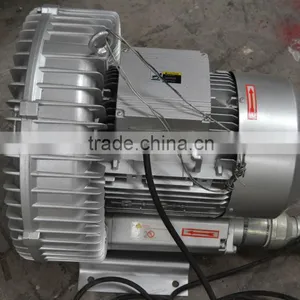

6.5.5kw vacuum pump
7.11kw Fuling inverter
Machine samples
Machine packing
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
1.Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.
2.Q: This is my first time to use this machine, is it easy to operate?
A: There are guide videos that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.
