SIGN-1318 rotary wood cnc router machine
- 300 Set / Sets per Month
- Qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGN-CNC | Model Number: | SIGN-1318 4axis | Voltage: | AC220V/50/60Hz,2PH (Option: 380V) |
Power(W): | 2.2Kw water cooling spindle | Dimension(L*W*H): | 2.0*1.8*1.45m | Weight: | 550kg |
Certification: | CE ISO | Warranty: | 1 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SIGN-1318 rotary wood cnc router machine:
Machine Features:
1. Lubrication oil system for guide rails.
2. Imported high-precision Hiwin Linear Squear Guide Rails, smooth movement, to ensure that the machine tools high-precision.

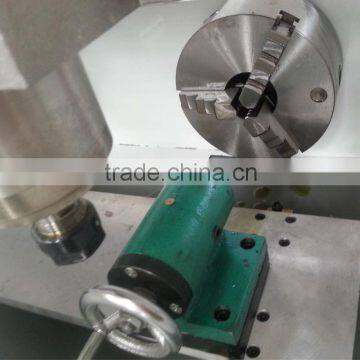

3. Rotary attachment with chuck and dead tail moving on linear square rail with high precision concentricity
4. The rotary diameter is 200mm (250mm and 320mm is option), Can be carving the large cylinder wood.
5. Using well-known domestic brands of water-cooled brushless spindle 1.5kw or 2.2kw, low noise, and strong cutting ability, to ensure the long time working.
6. Two spindles and two rotary attachment greatly improving production efficiency.
7. It also can process the planar materials, The T-slot table is removable. One machine with multi-function. Process the planar materials and the cylinder materials. And the design style is novel.
Applicable Industries:
It can be widely applied in many applications, carving cubic and column works such as Advertisement industries for column wood, Mold works, Home & Outdoor Product making , Architectural decoration and other column shape art crafts.
Applicable materials:
Carving for wood/MDF/acrylic, it can be used for solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, beside cabinet, folding screen, ect.
Technical Parameters:
Model | SIGN-1318 Two-Rotary Carving Machine |
X,Y Working Area: | 1300*1800mm |
Table Size: | 1460*2340mm |
X,Y,Z repositioning Accuracy: | ±0.01mm |
X, Z Structure: | Rack and Pinion Drive, Hiwin Linear Square Guide Rail |
Max. Power Consumption: | (Without spindle) 2.0Kw |
Max. Rapid Travel Rate: | 33000mm/min |
Max. Working Speed: | 25000mm/min |
Spindle Power: | 2.2 / 3.0 / 4.5 KW * 2 |
Spindle Speed: | 0-24000RPM |
Drive Motors: | Stepper (Optional Servo) |
Working Voltage: | AC220V/50/60Hz, (Option: 220V) |
Command Language: | G code |
Operating System: | Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution | <0.01mm |
Software Compatibility: Running | Type3/UcancameV9 software, (Option: Artcam software) |
Environment Temperature: | 0 degree - 45 degree |
Samples display:
Packing:
Our Services:
1. Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
2. Free training course in our factory
3. Free manual operation,operating instructions video,software CD
4. Engineer available to service machinery overseas
5. Offer life-long technical support and one year after-sale services
6. We provide the consumable parts at agent price when you need replacement.
