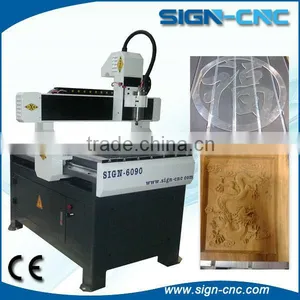

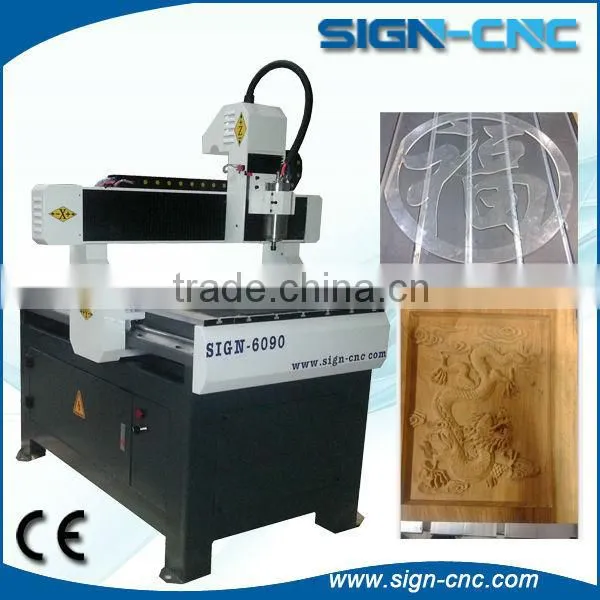

2016 chinese high quality mini desktop cnc router 690/carving machine cnc granite router
Machine Features:
1.Whole cast iron machine bed, tight and strong, SIGN 6090 runs smoothly.
2.SIGN 6090 is best choice for small pieces woodworking, with dust proof on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working longer time.
3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.

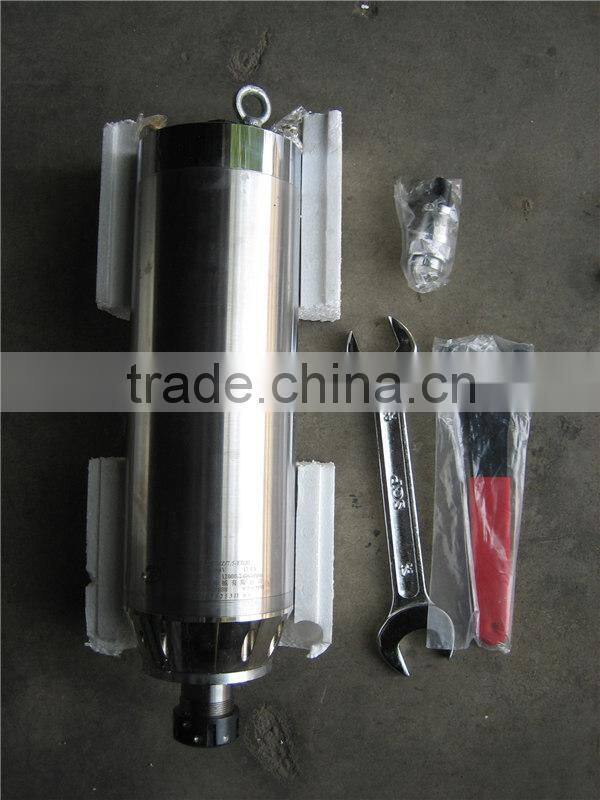

4. Low noise 1.5kw water cooling spindle, high rotated speed (24000rpm), can realize only diameter 1mm tools engraving on the hardness materials.
5.Rotary axis, can process cylindrical materials.
6. Processing metal materials can add water cooling system, which can cool the tools, avoiding the high temperature breaking tools.
7. Continuing working after the break point/power failure, lower the rejection rate.
8. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.

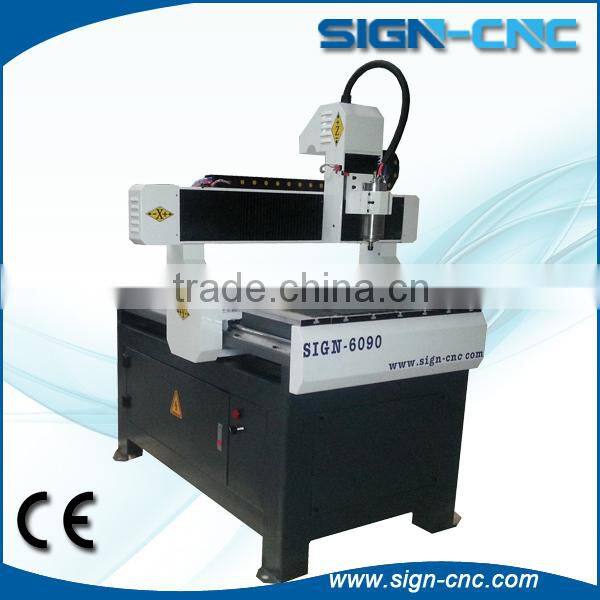

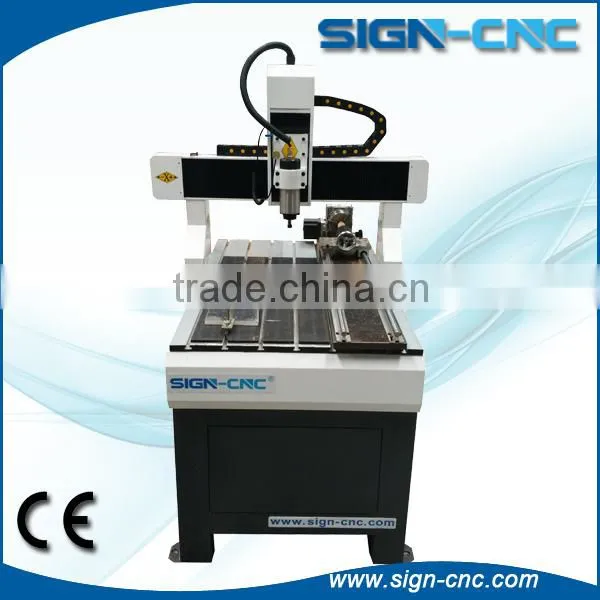

Reference machine pictures:

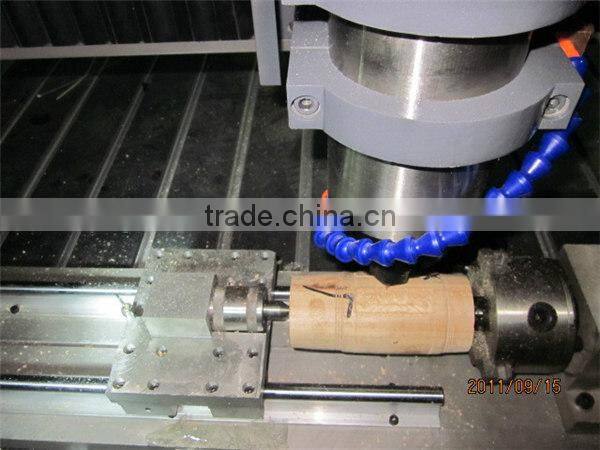

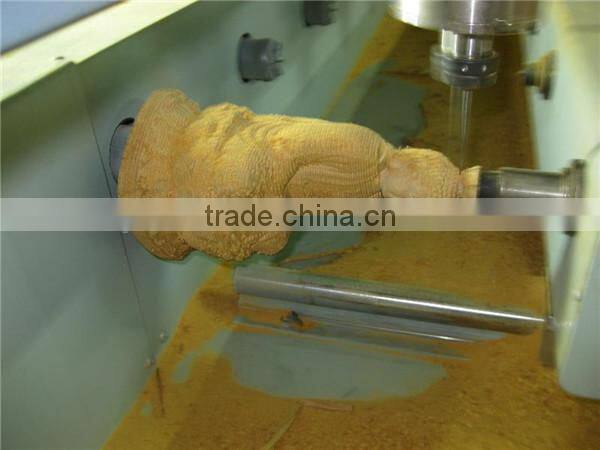

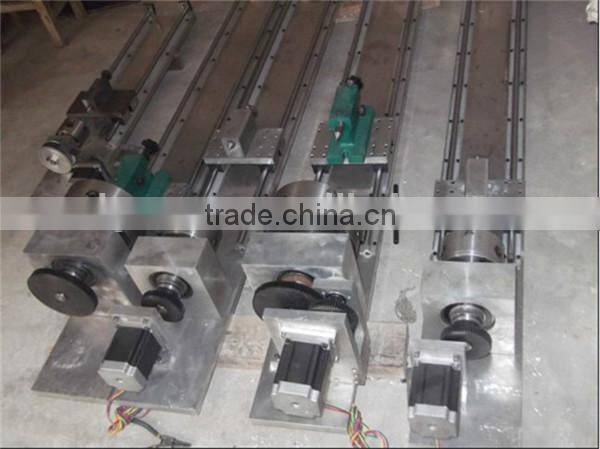

rotary axis

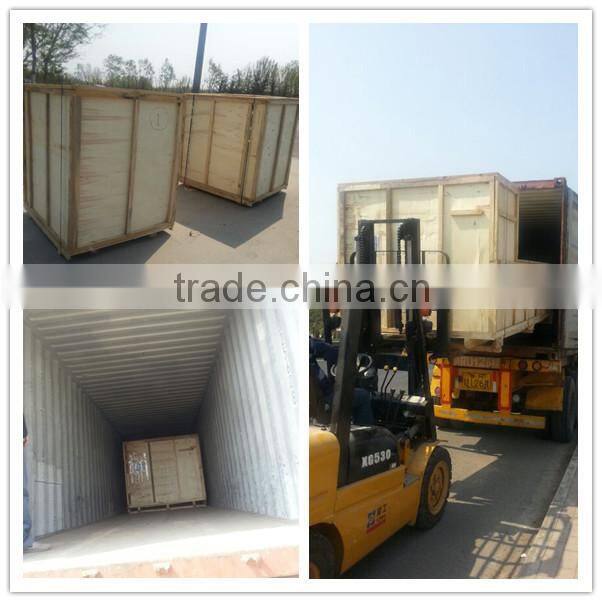

Machine packing:
Application:
Advertising industry: acrylic, double color boards, PVC, ABS, aluminum composite panels, kind of sign, chest signs, texts mould, trademark materials.
Arty and crafts: Artificial stone , engrave kind of texts , patterns on souvenirs.
Mold processing: Building models, physical model, hot stamping mould, trace injection mould, shoes mold, badges, embossed mold, biscuit, chocolate candy mold.
Technical Parameter:
Model |
cnc router SIGN-6090 |
X,Y,Z Working Area |
600x900x150mm |
Table Size |
720X1140mm |
Z feed Height |
120mm (200mm / 300mm heighten Gantry optional) |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
X,Y,Z repositioning Positioning Accuracy |
±0.01mm |
Table Surface |
T-slot Extrusions |
Frame |
Welded steel structure |
X, Z Structure |
Rack and Pinion Drive |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
Max. power Consumption |
2.0Kw |
Max.Rapid Travel Rate |
1000mm/min |
Max.Working Speed |
5000mm/min |
Spindle Power Motor |
1.5Kw water-cooling (option: air-cooling) |
Spindle Speed |
6000-24000RPM |
Drive Motors |
Stepper system (option: Servo) |
Working Voltage |
AC220V/50/60Hz |
Command Language |
G code |
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution |
<0.01mm |
Software Compatability |
Type3 software ( option: Wentai software, Artcam software) |
Running Environment |
Temperature: 0-45°C Relative humidity: 30%-75% |

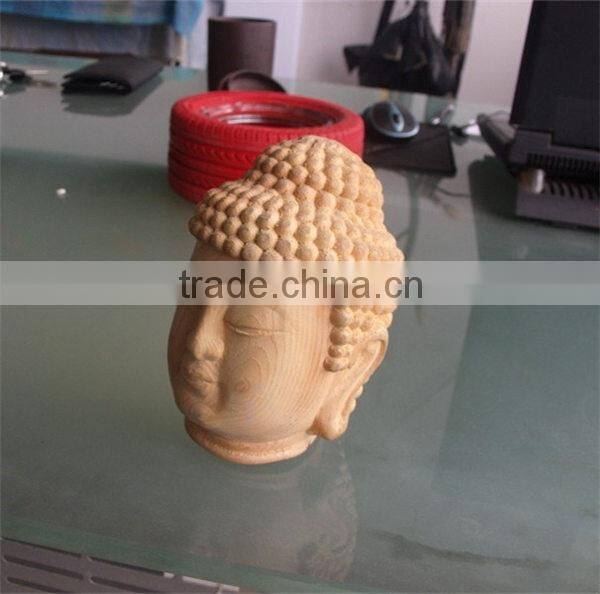

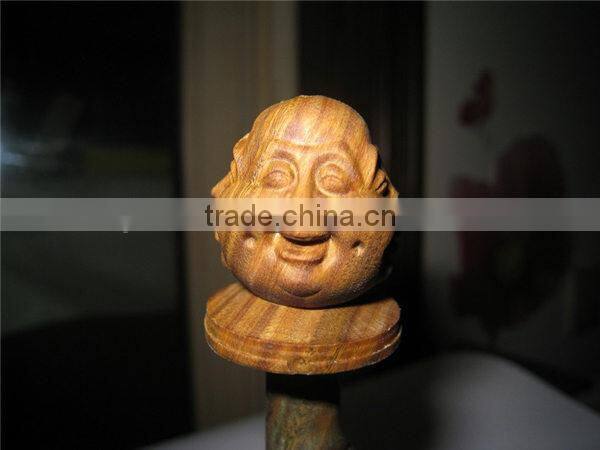

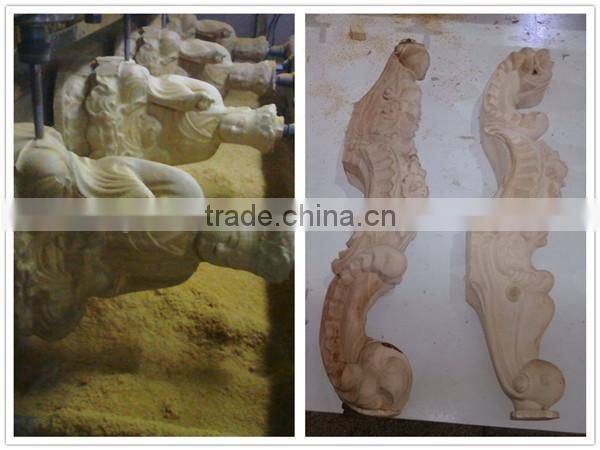

Samples show:

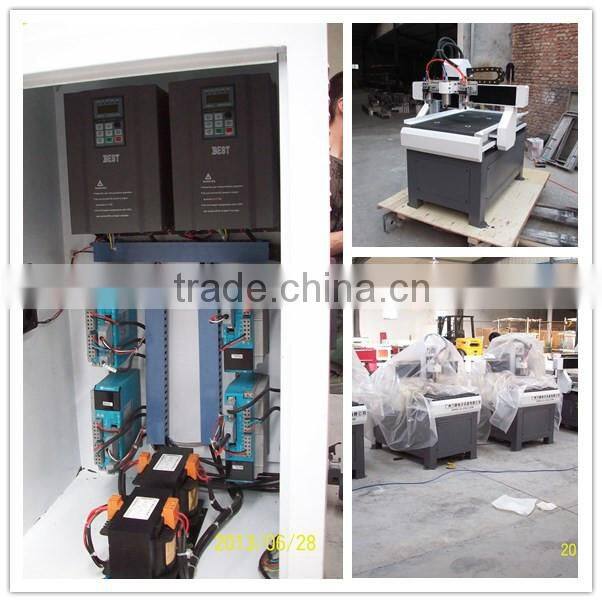

Quality Control:
In the whole manufacturing process, we will keep the quality of the parts of the machine. And when the machines are completed, we will test them to confirm they can work very well.
Our Services:
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
FAQ:
1.How much does it cost to use?
There is no cost to use the machine. However, you are responsible for supplying your own materials. Occasionally we require users to purchase their own router bits, depending on how much routing is to be done and the type of material.
2.How long will my CNC order take to arrive?
CNC orders will generally be made within one to two weeks.
Shipping time depends on your location, but will usually take between one day and one week.
Our company:
Further more information, please contact me.
