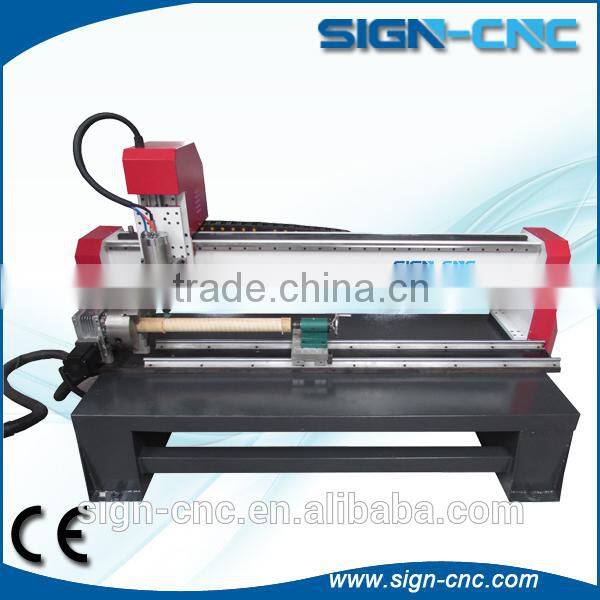

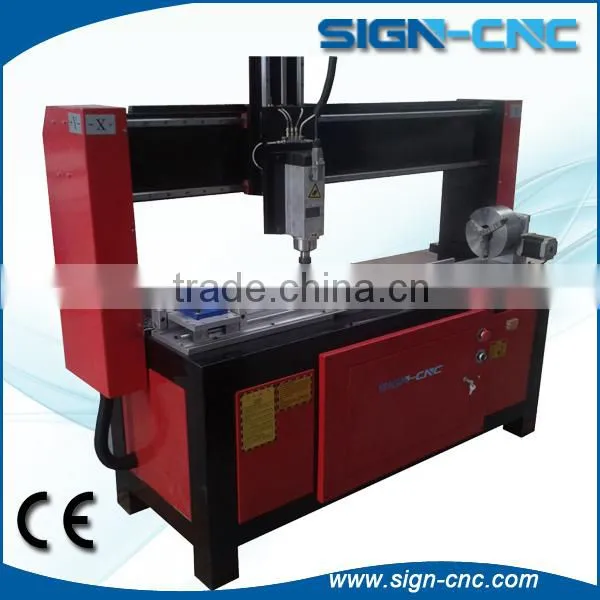

Statue cnc wood router for carving round timber and square timber woodworking rotary machine for sale
Description:
1. 360 degree cylinder engraving expands the application of CNC router and satisfies in furniture and gift making industry.

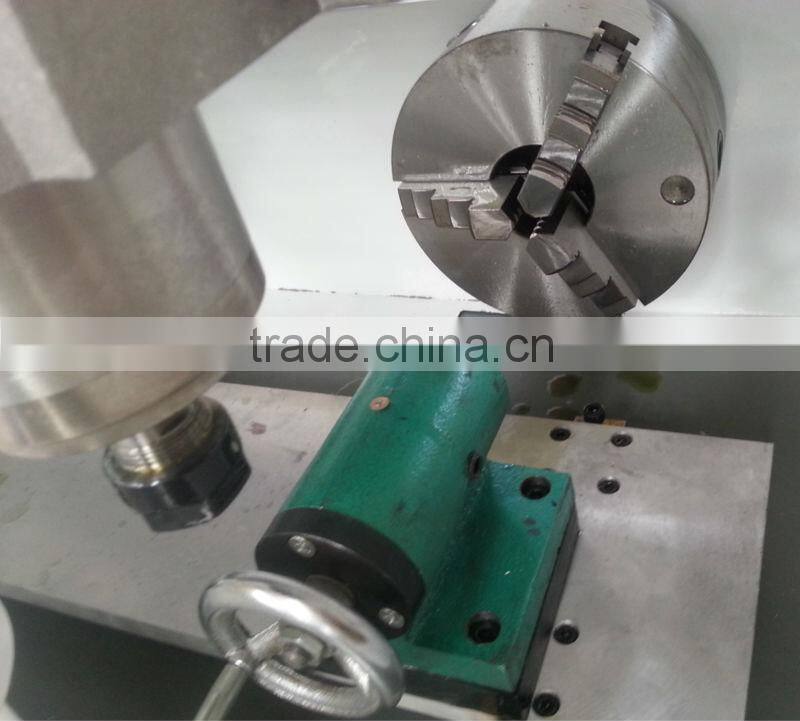

2.Cylinder material is fixed by chuck thought three holders, force exerted uniformly and effectively and center positioned accurately so that the working accuracy is guaranteed.
3.Rotary's diameter can length, can be customized.
4.Bi-directional orienting guides provides high positioning accuracy.
5.Broken-point memory ensures the continuity of work when inciddent happens.
Application:

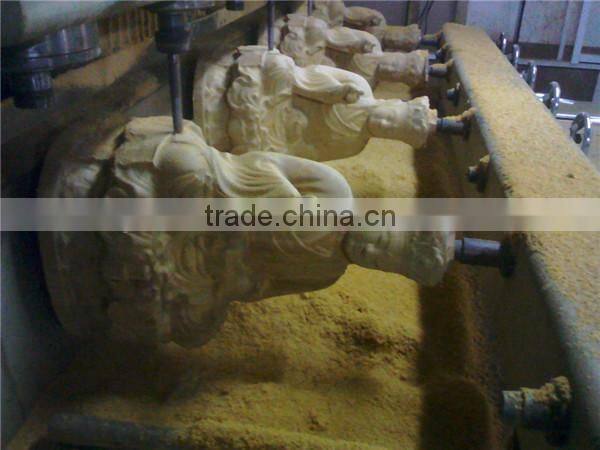

The machine is mainly used for sub cylindrical article processing, like furniture decoration, pen holder,stair railing, musical instruments,Buddha statue, Guanyin statue, bamboo tumb engraving and carving and so on.
Features:
1.Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.

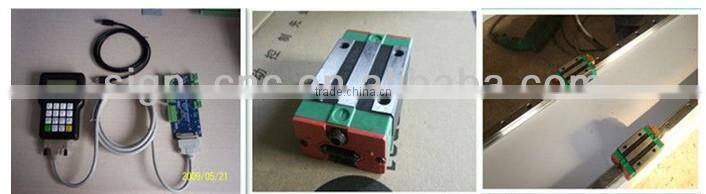

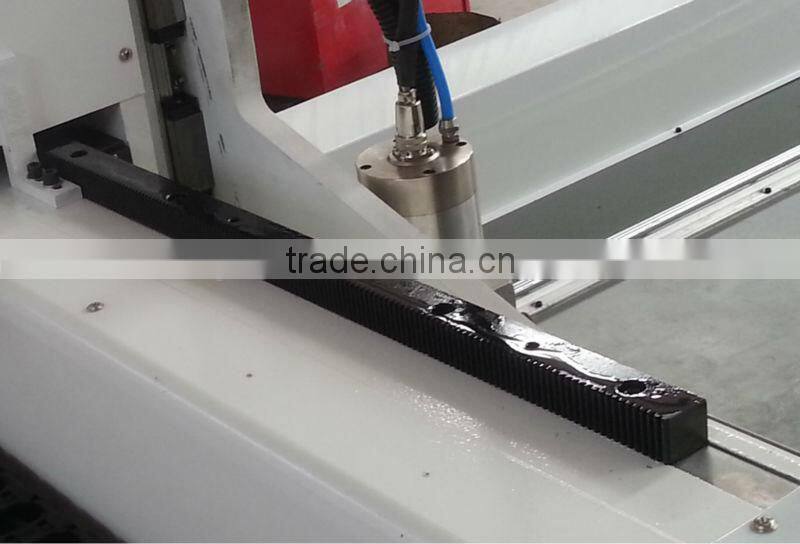

2.Imported ball screw transmission and linear guide rail for X Y Z-axis, good stability, high precision and long life time.
3.Rotary axis for cylindrical materials.
4. Breakpoints, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.
5. Emergency stop button, ensuring the operation safe.
6. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
Technical parameters:
Model NO. |
SIGN-1200 CNC Router With Rotary |
Table Size |
1300mm*500mm |
X Y Z Traveling Area |
1300mm*200mm |
Table Structure |
Aluminum T-Slot |
Spindle Power |
1.5KW Water Cooling |
Max. Spindle Speed |
24000 r/min |
Max. Traveling Speed |
7200mm/min |
Max. Working Speed |
5000mm/min |
Processing Accuracy |
±0.025mm |
Reposition Accuracy |
≤0.025mm |
Driving System |
Stepper Motor |
Command Language |
HPGL, G Code |
Operation System |
NCSTUDIO |
Working Voltage |
AC220V, 50HZ |
Net Weight/Gross Weight |
360KGS / 420KGS |
Package Dimension |
1820mm*1730mm*1600 mm |
Packing:

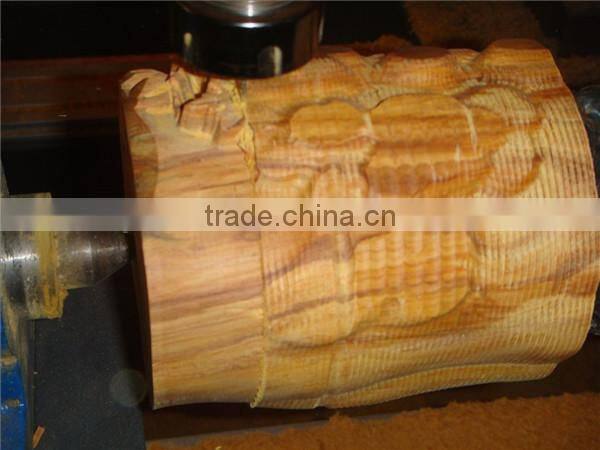

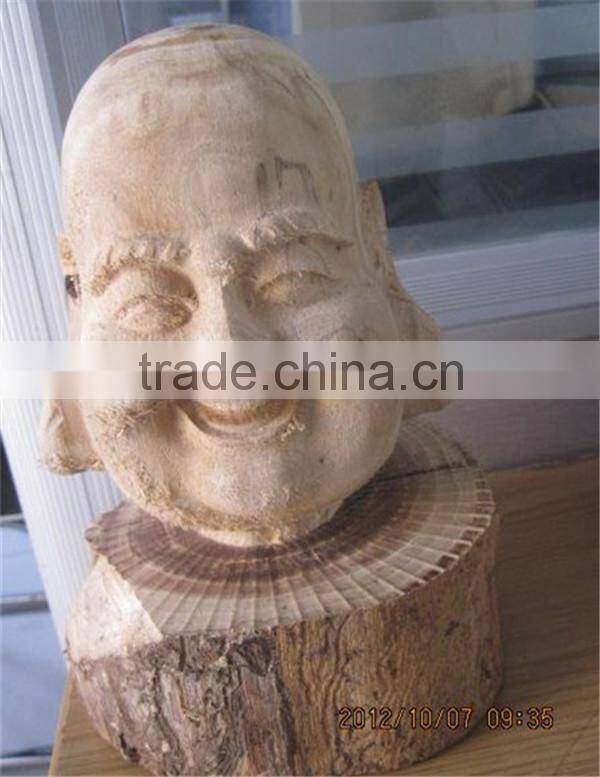

Samples:
FAQ:
What is CNC routing?
CNC Routing is a manufacturing process by which a router is controlled by a computer to cut a sheet of material. CNC stands for computer numerical control. Computer conrolled movement of the machine is based on the Cartesian coordinate system (X, Y, Z) allowing for three dimensional shaping.
A CNC router is similar to a plotter which moves a pen across a surface along the X and Y axes to create a drawing. But a CNC router moves a cutting tool across a large table along the X and Y axes as well as up and down along the Z axis. This allows the router to create pocket cuts into the material.
The cutting tool looks like a drill bit, but unlike a drill bit a router is designed to cut from the sides as well as the tip. The router, also referred to as a spindle, is the motor that spins the cutter.
How long will my CNC order take to arrive?
CNC orders will generally be made within one to two weeks.
Shipping time depends on your location, but will usually take between one day and one week.
