20% discount ! Jinan 1530 4 axis cnc router , cnc wood router engraving machine for mold , door , cabinet , cylinder , furniture
We are Alibaba Trade Assurance Supplier
Advantages:
1. As a manufacturer, we have 7 years factory experience for wood cnc router and laser cutting machine. We can devoted to the research and manufacture of many different types.
2. Factory outlet can offer the best price and professional after-sale service.
3. We joined the trade Assurance to make sure the buyer’s benefit and protect your money. If can’t meet the details in the contact,100% of your payment will be returned.
4.Our products are popular in USA, Russia, Middle East, Africa and so on.
4 Axis Cnc Router machine pictures:
Machine Features:
Imported ball screw rod and Hiwin linear guide rail
----ensure accuracy and high precision
Quality sensor switch
----improve the machine working safty
High-performance driven motor
---- ensure that the machines high speed and accuracy
Big power sub-division motors
---- keep stable moving, improve your working efficacy
Large compatibility of drawing software
Type3, Art compatible Artcam/Type3/Ucancam/JDPaint
Continuing working after the break point/power failure
----lower the rejection rate
Optional items
----servo motor, vacuum adsorption working table, rotary axis

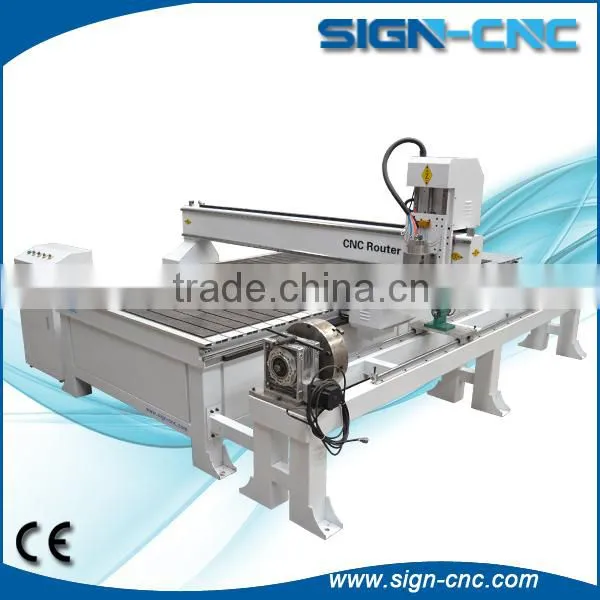

Machine reference pictures:
Optional parts:
Reducer: Japan Shimpo reducer, APEX reducer.
Automatcic Mist Sprayer: When processing hard materials, for cooling.
Dust Collecter: Can collect the pocessing dust of the materials.
Vacuum pump: Working with the vacuum working table
Application:
Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials.
Various Wooden products,like Solid Wood Furniture and Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture.
Other industry: relief, widely used in craft gifts industry, Aluminum industry, Cutting aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile, 3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.
Technical Parameter:
Model |
SIGN-1325 |
SIGN-1530 |
SIGN-1830 |
SIGN-2030 |
XY Working size |
1300*2500mm |
1500*3000mm |
1800*3000mm |
2000*3000mm |
Z feed Height |
200mm / 300mm heighten Gantry optional) |
|||
Frame: |
Steel tube structure |
|||
Table Surface |
T-slot (Option: Vacuum Table) |
|||
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|||
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
|||
Max. Power Consumption: |
(Without spindle) 2.0Kw |
|||
Max. Rapid Travel Rate: |
33000mm/min |
|||
Max. Working Speed: |
25000mm/min |
|||
Spindle Power: |
2.2 / 3.0 / 4.5 KW |
|||
Spindle Speed: |
0-24000RPM |
|||
Drive Motors: |
Stepper( Servo Optional) |
|||
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V) |
|||
Command Language: |
G code |
|||
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
|||
X,Y,Z repositioning Accuracy: |
±0.01mm |
|||
X,Y Resolution |
<0.01mm |
|||
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
|||
Rotary device |
200mm diameter |
|||
Running Environment Temperature: |
0 degree - 45 degree |
|||
Relative Humidity: |
30% - 75% |
|||
Guarantee |
One year |
|||
|
Optional Parts |
Air cooling spindle or Water cooling spindle Dust collector Vacuum Pump Mist-cooling system Reducer Yaskawa/ Panasonic Servo motors |
|||
Samples:
Delivery and Transport:
FOB Qingdao. If other port needed, please tell me in advance.
CIF. Please tell me your destination port in advance. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Our after-sale service:
Within 7 days since your local customs clearance: if the cnc machine’s any part has any problem, we will change it free.
Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problem, we can change the old machine parts to new ones free.
Exceed warranty period 1 year: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
Would you mind telling us the flowing information, we will recommend the most suitable cnc router and the best price for you.
What materials do you want to engrave or cut?
For different types of cnc routers apply to different materials (wood ,stone, metal, foam etc.)
What's the max. size of the materials? (Length*Width*Thickness)
For it decides the working size of machine.(for example: SW-1325: 1300*2500*200mm)
Package:
More other models:
| 1325 ATC cnc router | 6090mini cnc router |
|
|
Please feel free to contact us for further more information!
