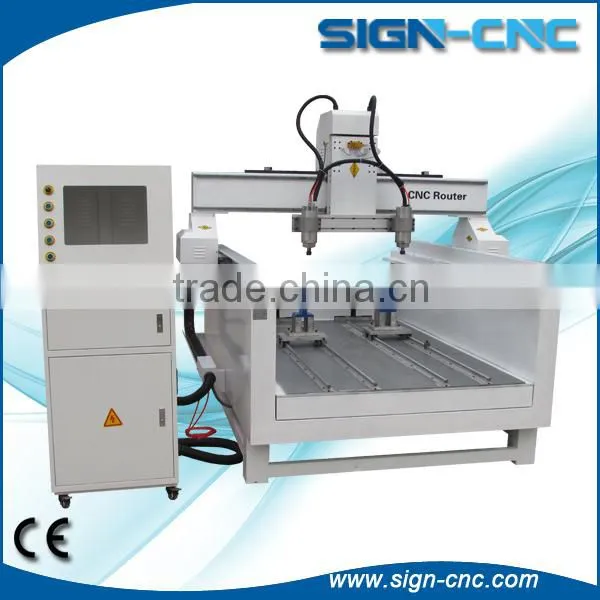

4axis Cylinder Wood Engraving Router CNC / multi Heads Rotarys Wood CNC Router
Machine working video:
Application:
Suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, acrylic, wood, composite board plywood, and metal, stone, glass, etc.
It can be used widely to process or make advertising signs, PCB, nameplates ,badges, bronzing plate, aluminum alloy, acryplates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
Features:

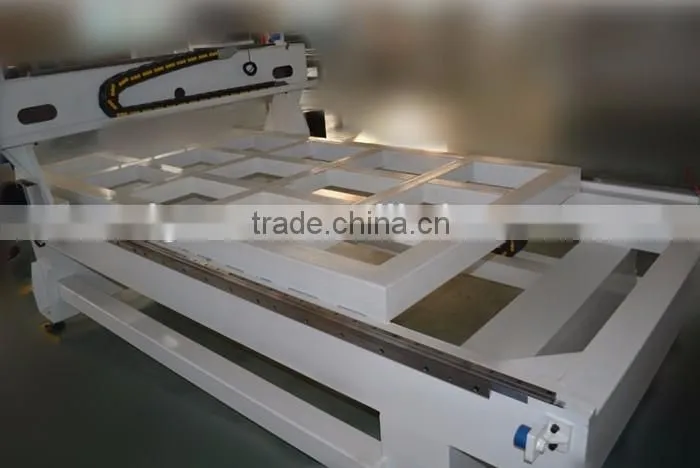

1.Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.

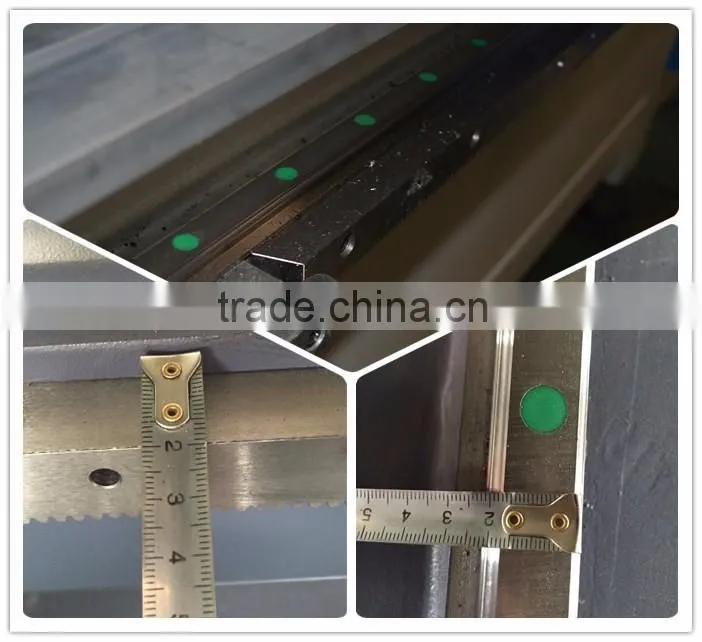

2.Imported ball screw transmission and linear guide rail for X Y Z axis, good stability, high precision and long life time.

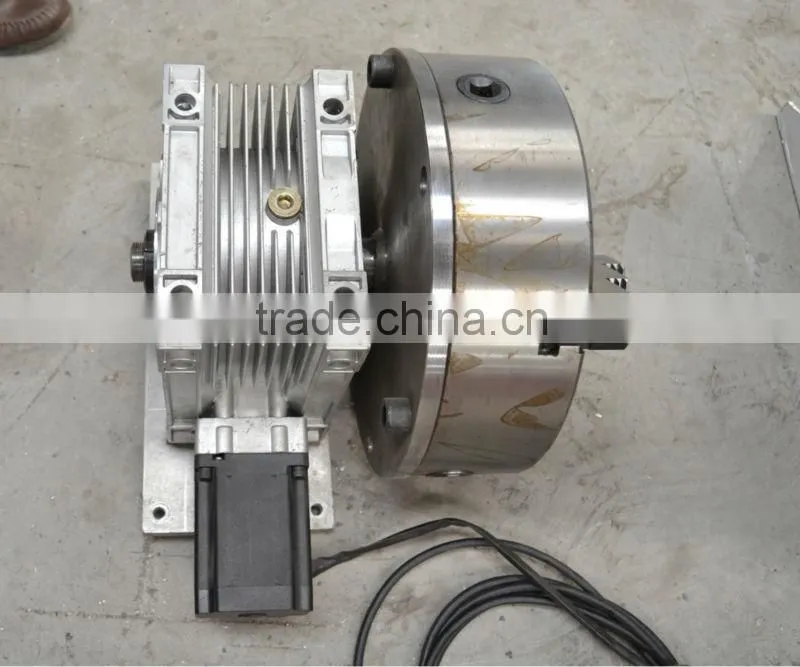

3.Rotary axis for cylindrical materials.
4. Breakpoints, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.
5. Emergency stop button, ensuring the operation safe.
6. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
Technical parameters:
Model NO. |
SIGN-1318 CNC Router With Rotary |
Table Size |
1600mm*2400mm |
X Y Z Traveling Area |
1300mm*1800mm*200mm |
Table Structure |
Aluminum T-Slot |
Spindle Power |
2*1.5KW Water Cooling |
Max. Spindle Speed |
24000 r/min |
Max. Traveling Speed |
7200mm/min |
Max. Working Speed |
5000mm/min |
Processing Accuracy |
±0.025mm |
Reposition Accuracy |
≤0.025mm |
Driving System |
Stepper Motor |
Rotary device |
300mm diameter |
Command Language |
HPGL, G Code |
Operation System |
NCSTUDIO |
Working Voltage |
AC220V, 50HZ |
Net Weight/Gross Weight |
360KGS / 420KGS |
Package Dimension |
1820mm*1730mm*1600 mm |
Packing:

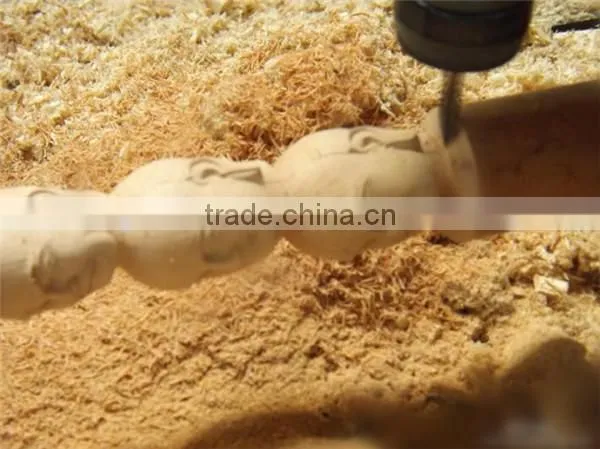

Samples:
FAQ:
What is CNC routing?
CNC Routing is a manufacturing process by which a router is controlled by a computer to cut a sheet of material. CNC stands for computer numerical control. Computer conrolled movement of the machine is based on the Cartesian coordinate system (X, Y, Z) allowing for three dimensional shaping.
A CNC router is similar to a plotter which moves a pen across a surface along the X and Y axes to create a drawing. But a CNC router moves a cutting tool across a large table along the X and Y axes as well as up and down along the Z axis. This allows the router to create pocket cuts into the material.
The cutting tool looks like a drill bit, but unlike a drill bit a router is designed to cut from the sides as well as the tip. The router, also referred to as a spindle, is the motor that spins the cutter.
How long will my CNC order take to arrive?
CNC orders will generally be made within one to two weeks.
Shipping time depends on your location, but will usually take between one day and one week.
Welcome to visit our factory:
Service:
1. Guarantee & After-sale Service
1.1 12 Months warranty under normal use and lifelong maintenance we supply
1.2 24 hours technical support by phone, email and other online contact.
1.3 Free training on machine operation, daily maintenance etc. in our factory.
1.4 Friendly English operation manual.
2. Delivery Time
2.1 Usually, for normal model, within 15 days after receiving the deposit.
3. Payment Terms
3.1 T/T in advance, accept the trade assurance
3.2 L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
3.3 Other kinds of payment we can consider if acceptable for us.
