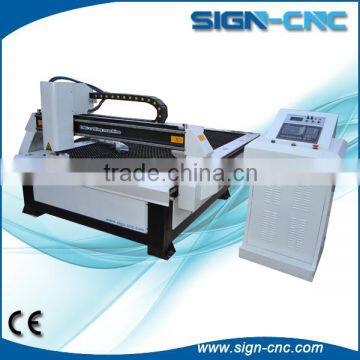

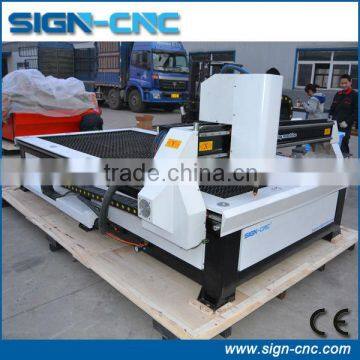

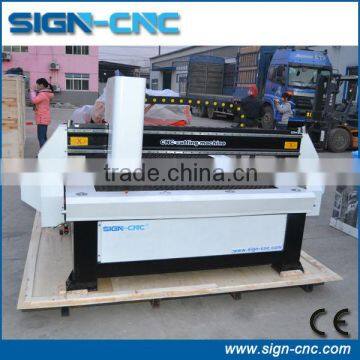

High definition table cnc plazma cutter and cnc plasma cutting machine for stainless steel plate, metal sheet
Machine features:
1.Gantry structure, perfect bearing capability. Efficient double drive motor make cutting more steadily even large distance needed.
2.Double cutting torch:plasma cutting torch and flame cutting torch(Oxygen),suitable for cutting steel board of different thickness.
3.Cutting edge is small and smooth ,without any drop outs,thickness for metal cutting is up to 50mm.
4. With Arc voltage Auto Height-adjusting Device,can protect cutting torch from damage, increase cutting quality.
5.Adopts linear guide rail with high precision.
6.Drive gear and rack ,customized from professional manufacturer, is surface processed by cemented quenching, which can prolong machine’s using life.
7.Servo drive system is available,which with features of function detecting ,high running precision, wide speed range and short speed up time.
Machine parts:
Technical parameters: | |
Model |
SIGN-1325 |
Cutting accuracy |
±0.4mm |
Reposition accuracy |
±0.2mm |
Working size |
X=1300,Y=2500,Z=120mm, can be customized |
Working table size |
1300*2500mm |
Feeding height |
120mm |
Max running speed |
9m/min |
X/Y/Z axis transmission |
X/Y Axis Gear and rack ,Z Axis Ball screw |
Plasma power |
Chinese 60A (optional 100A 120A 160A 200A ) |
Cutting thickness |
0-25mm (200A,Carbon steel,stainless steel) |
Auto height-adjusting device |
with |
Acr control system |
with |
Driver motor |
Stepper motor,imported servo motor optional |
Working voltage |
AC380v/50Hz |
Control system |
DSP |
Gross weight |
1100kg |
Remark: All machine models can be customized according to clients’ special requirement. | |
Applied Industry and material:
Applied industry:
case shell of mechanical and electrical products processing,advertising signages,process decoration, black smith gardens, automobile, shipbuilding, electrical accessories cutting and processing ,welding industry etc.
Applied material: Iron plate,stainless steel plate,titanium plate,galvanized sheet, high speed steel,etc.
Samples:
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
Certificate:
FAQ:
Can you recommend a plasma machine to me,thanks?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
When the machine can’t work well,What should I do?
1. Engineer is online for 24-hours, they can check the problems and then give you a solutions in two hours.
2. SIGN CNC machine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air In free.
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
